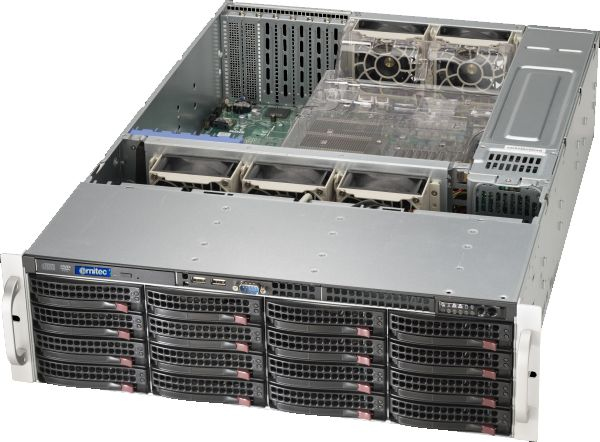

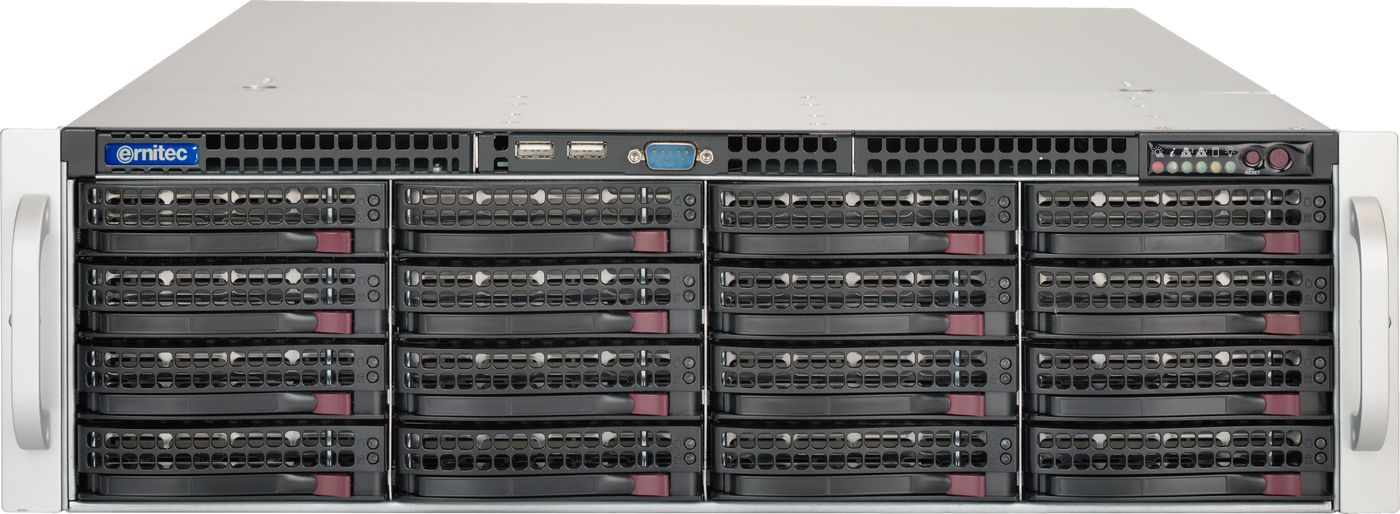

i7-9700 CPU
16GB RAM, 250Gb SSD, EasyView V8 server incl. 90TB Storage & 12Gbps RAID Controller
Model CORE-EASY-VIEW-8EAN 5704174003816
34 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage90 TB
- OSWindows 10 Pro
- Weight48.9 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 90 TB
- OS
- Windows 10 Pro
- Weight
- 48.9 kg
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Network Surveillance Server
- Model
- CORE-EASY-VIEW-8
- Part number
- CORE-EASY-VIEW-8
- EAN / UPC
- 5704174003816
- Also known as
- Ernitec i7-9700 CPU, 16GB RAM, 250Gb SSD, EasyView V8 server incl. 90TB Storage & 12Gbps RAID Controller
Specifications
34 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor frequency | 3 GHz |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs supported | 16 |
| HDD size | 2.5/3.5" |
| Hot-swap drive bays | Yes |
| Total storage capacity | 90 TB |
| HDD capacity | 6 TB |
| SSD capacity | 250 GB |
| Number of HDDs installed | 15 |
| Data transfer rate | 12 Gbit/s |
| Number of SSDs installed | 1 |
| RAID support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Gigabit Ethernet |
| AC-in ports quantity | 2 |
Features
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Rack capacity | 3U |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 647 mm |
| Height | 132 mm |
| Weight | 48.9 kg |
| Package width | 676 mm |
| Package depth | 1013 mm |
| Package height | 330 mm |
| Package weight | 49 kg |
