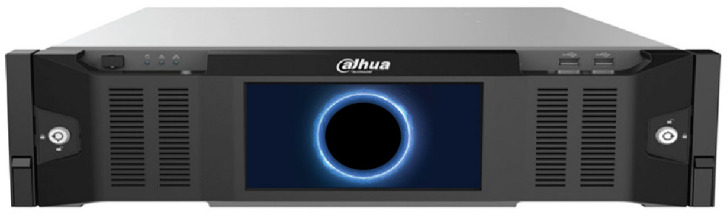

DSS7116DR network surveillance server Rack Fast Ethernet, Gigabit Ethernet
Model DSS7116DR
40 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- OSLinux Embedded
- Weight19.1 kg
- Processor manufacturerIntel
- Number of HDDs supported15
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- OS
- Linux Embedded
- Weight
- 19.1 kg
- Processor manufacturer
- Intel
- Number of HDDs supported
- 15
- Brand
- Dahua Technology
- Category
- Network Surveillance Server
- Model
- DSS7116DR
- Part number
- DSS7116DR
- Also known as
- Dahua Technology DSS7116DR network surveillance server Rack Fast Ethernet, Gigabit Ethernet
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-12400 |
| Processor cores | 6 |
| Processor threads | 12 |
| Number of processors installed | 1 |
| Processor boost frequency | 4.4 GHz |
| Graphics card | Intel UHD Graphics 730 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs supported | 15 |
| HDD size | 3.5" |
| HDD interface | SATA |
| Maximum storage capacity | 200 TB |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 4 |
| VGA (D-Sub) output ports | 1 |
| Audio in/out | Yes |
Features
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Operating system installed | Linux Embedded |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Rack capacity | 19U |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 315 W |
| Power consumption (typical) | 210 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444.8 mm |
| Depth | 522.2 mm |
| Height | 133.2 mm |
| Weight | 19.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | DSS |
