TL-WPA4220T KIT
Model TL-WPA4220T KITPart no. TL-WPA4220T KIT V4EAN 8592978178826
42 specifications
- TypeNetwork repeater
- ColourWhite
- Cabling technology10/100Base-T(X)
- Ethernet LAN (RJ-45) ports2
- AC input voltage220 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Network repeater
- Colour
- White
- Cabling technology
- 10/100Base-T(X)
- Ethernet LAN (RJ-45) ports
- 2
- AC input voltage
- 220 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- TP-Link
- Category
- Network Extender
- Model
- TL-WPA4220T KIT
- Part number
- TL-WPA4220T KIT V4
- EAN / UPC
- 8592978178826, 1210002614795, 1210002614801, 4056203018126 +10 more
- Also known as

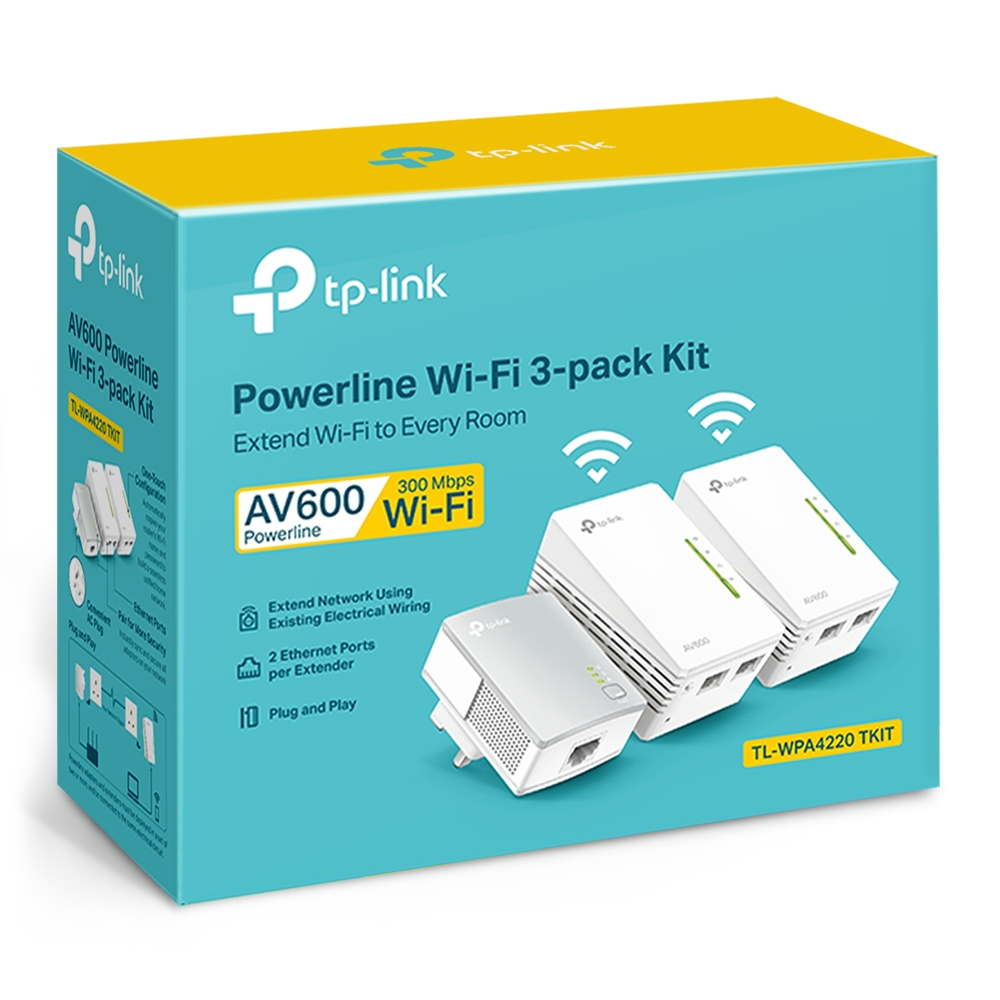

- TP-Link Powerline 600 Wi-Fi 3-pack Kit
Specifications
42 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 300 m |
| Data transfer rate | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Wi-Fi data rate (max) | 500 Mbit/s |
| Bandwidth | 2.4 GHz |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|

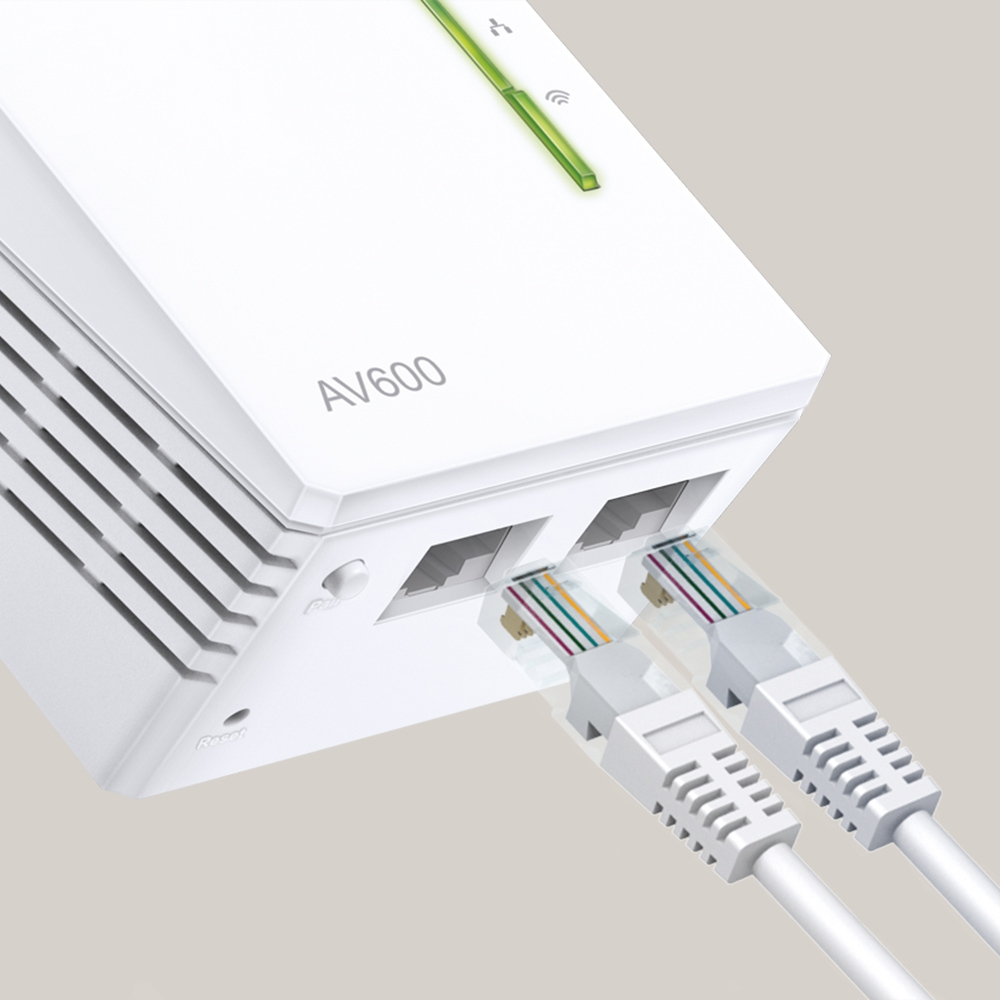

| Ethernet LAN (RJ-45) ports | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Mounting type | Wall |
| LED indicators | Network, PLC, Power, WLAN |
| Certification | CE, RoHS |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Power consumption (max) | 7.608 W |
| Power consumption (typical) | 7.216 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 54 mm |
| Height | 69.5 mm |
| Transmitter width | 5.2 cm |
| Transmitter depth | 2.85 cm |
| Transmitter height | 6.5 cm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
| Package weight | 650 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
