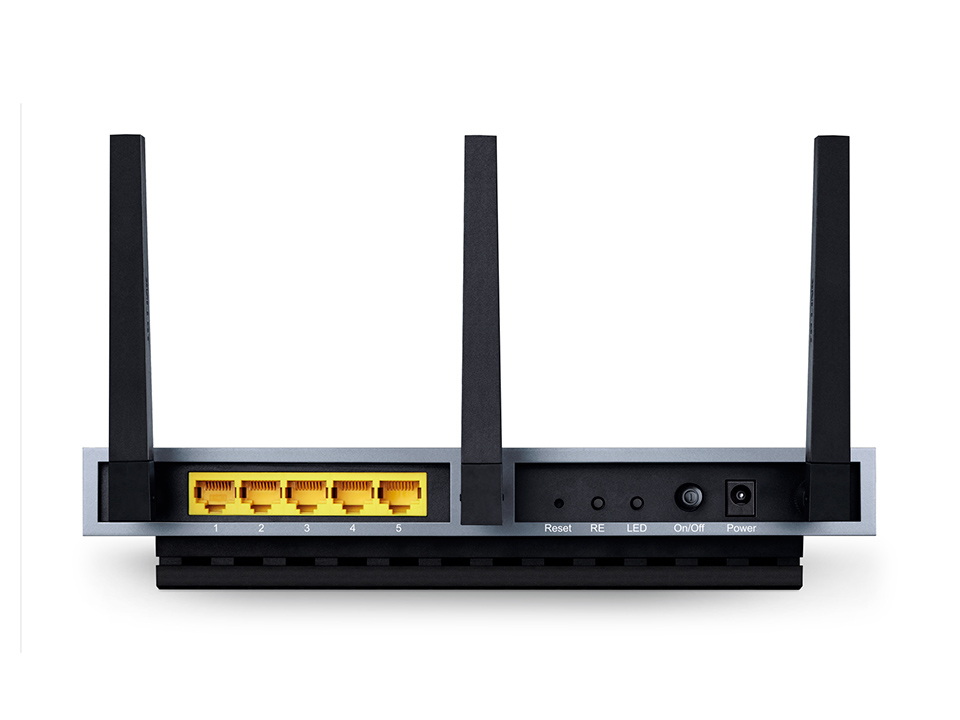

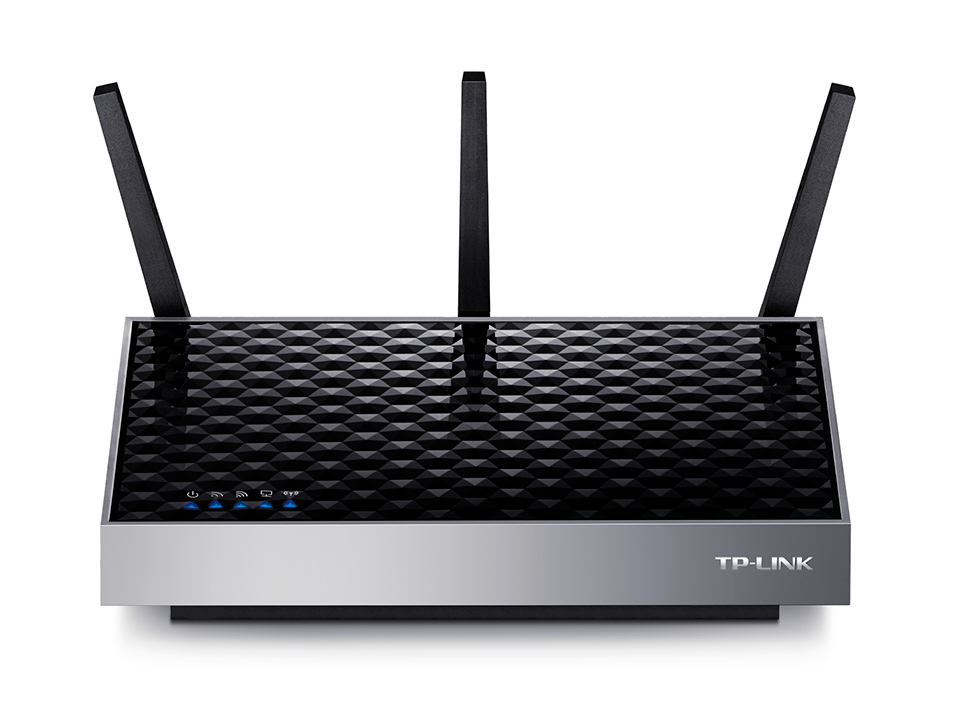

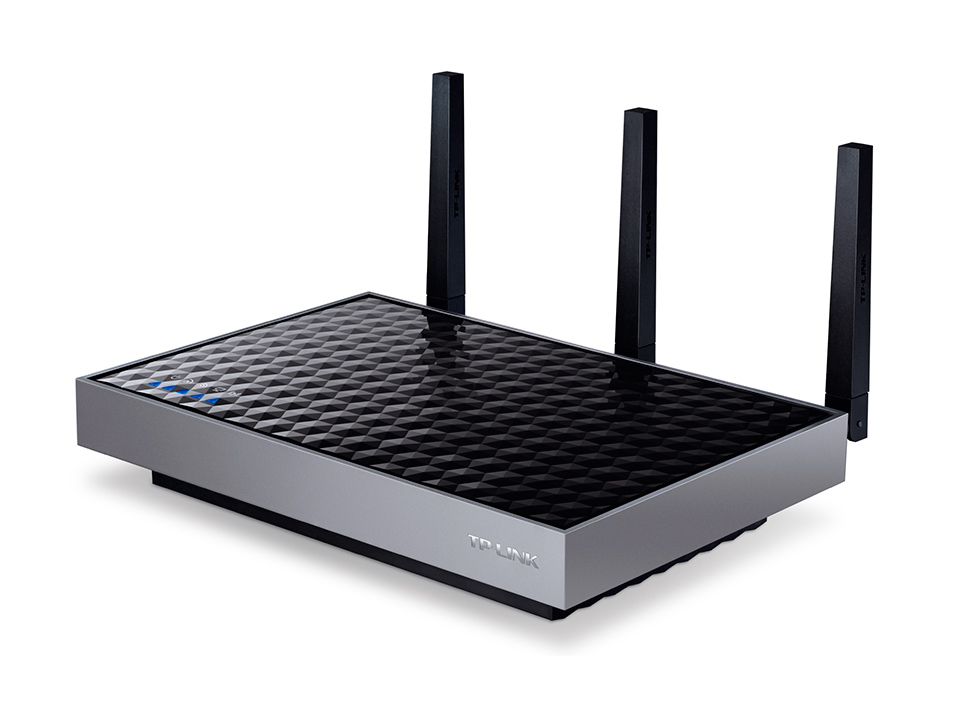

RE580D network extender Network transmitter
Model RE580DEAN 845973092344
32 specifications
- TypeNetwork transmitter
- Antennas quantity3
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports5
- LED indicatorsYes
- Operating temperature (T-T)0 - 30 °C
Overview
- Type
- Network transmitter
- Antennas quantity
- 3
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 5
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 30 °C
- Brand
- TP-Link
- Category
- Network Extender
- Model
- RE580D
- Part numbers
- RE580D, TL-RE580D
- EAN / UPC
- 845973092344, 6935364092344, 6935364092351
- Also known as
- TP-Link RE580D network extender Network transmitter
Specifications
32 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 3 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 1900 Mbit/s |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| On/off switch | Yes |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Output voltage | 12 V |
| Output current | 2.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 30 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 242 mm |
| Depth | 162 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 340 mm |
| Package depth | 240 mm |
| Package height | 76 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
