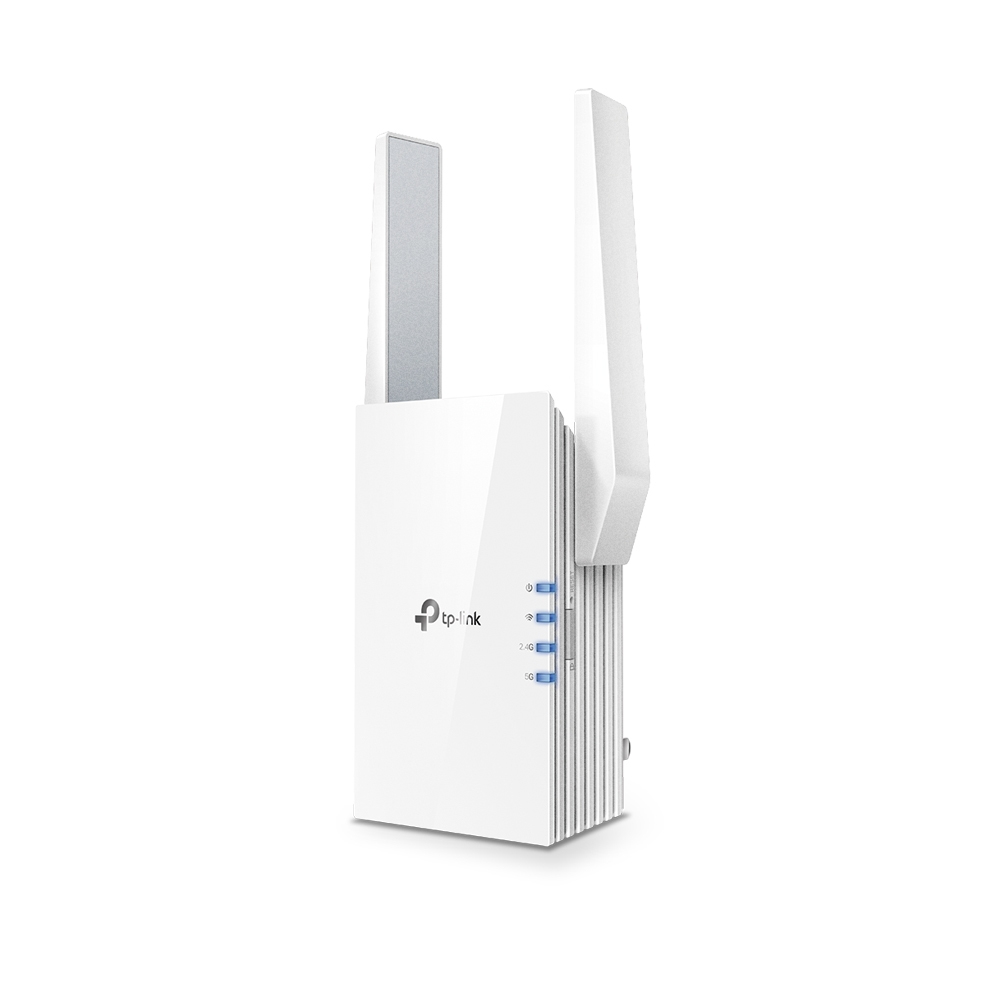

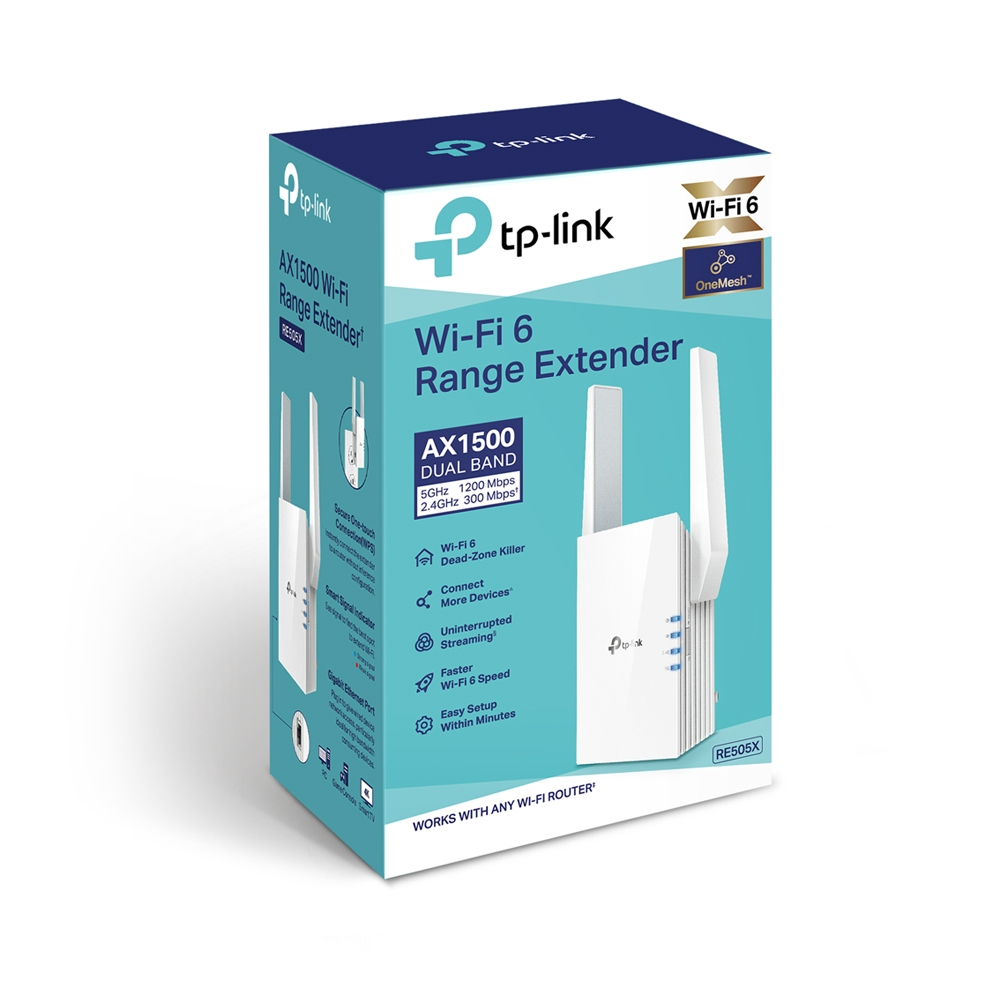

AX1500 Wi-Fi Range Extender
Model RE505XEAN 6935364089511
38 specifications
- TypeNetwork repeater
- ColourWhite
- Antennas quantity2
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports1
- AC input voltage100 - 240 V
Overview
- Type
- Network repeater
- Colour
- White
- Antennas quantity
- 2
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 100 - 240 V
- Brand
- TP-Link
- Category
- Network Extender
- Model
- RE505X
- Part numbers
- RE505X, RE505X V1
- EAN / UPC
- 6935364089511, 6935364053406, 6935364089535, 000012299515 +2 more
- Also known as
- TP-Link AX1500 Wi-Fi Range Extender
Specifications
38 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | External |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 1300 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power, WAN, WLAN |
| On/off switch | Yes |
| Reset button | Yes |
| Certification | FCC, RoHS |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 74 mm |
| Depth | 46 mm |
| Height | 124.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 202 mm |
| Package depth | 125 mm |
| Package height | 97 mm |
| Package weight | 400 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
