AC750 Wi-Fi Range Extender
Model RE220Part no. RE220 V2EAN 840460604703
43 specifications
- SpeedWi-Fi 5 (802.11ac)
- TypeNetwork repeater
- ColourWhite
- Antennas quantity3
- Ethernet LAN interface typeFast Ethernet
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Network repeater
- Colour
- White
- Antennas quantity
- 3
- Ethernet LAN interface type
- Fast Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- TP-Link
- Category
- Network Extender
- Model
- RE220
- Part number
- RE220 V2
- EAN / UPC
- 840460604703, 845973099732, 6935364053437, 6935364099732
- Also known as
- TP-Link AC750 Wi-Fi Range Extender
Specifications
43 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 433 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Firmware upgradeable | Yes |
| WPS push button | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 3 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Ethernet LAN interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 433 Mbit/s |
| WLAN data transfer rates supported | 300 Mbit/s |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA-PSK, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|

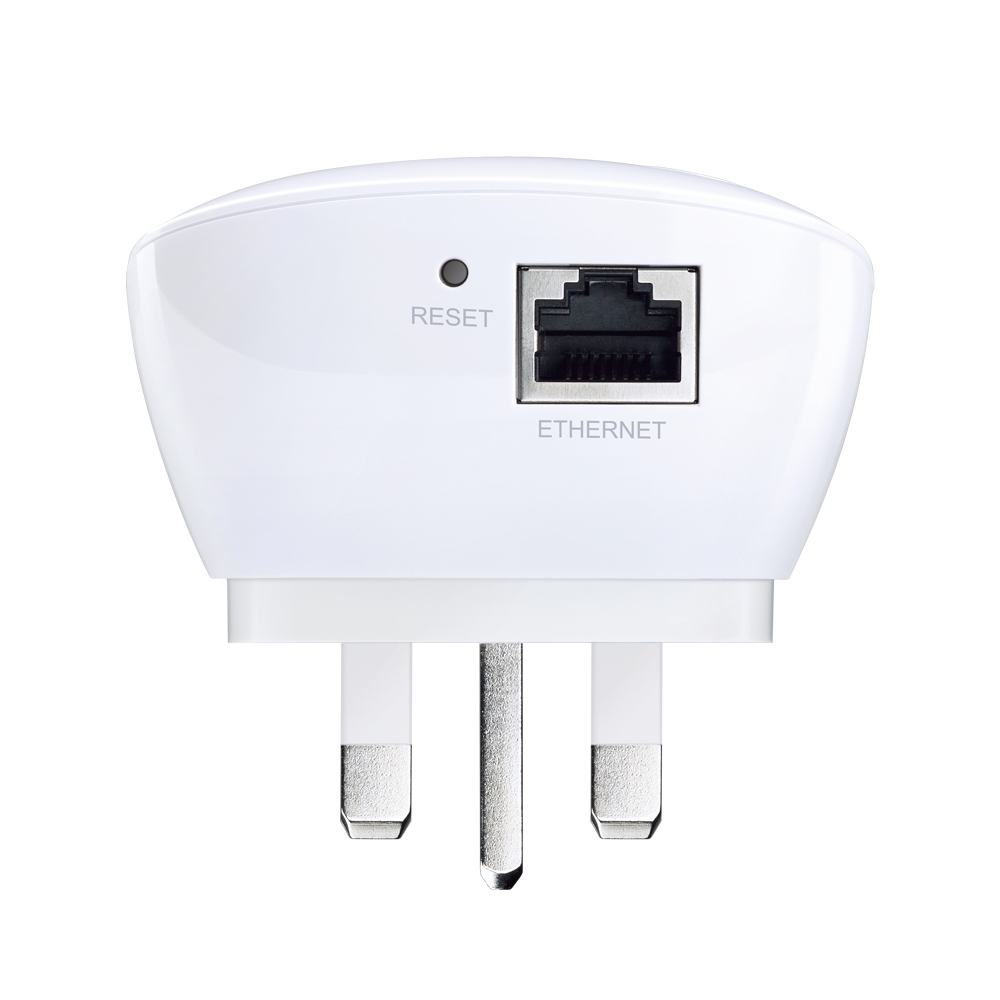

| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Reset button | Yes |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 6.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 66 mm |
| Height | 75 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 156.5 mm |
| Package depth | 101.5 mm |
| Package height | 89 mm |
| Package weight | 310 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
