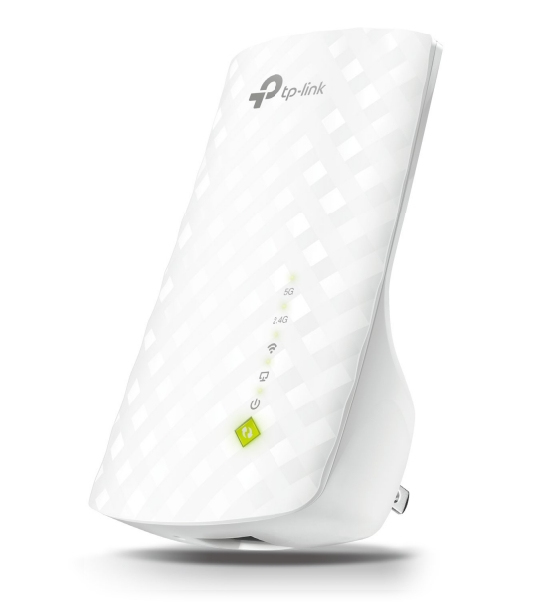

RE200 V5
Model RE200 V5
35 specifications
- TypeNetwork repeater
- ColourWhite
- Antennas quantity3
- Cabling technology10/100Base-T(X)
- Host interfaceRJ-45
- Power consumption (typical)7.3 W
Overview
- Type
- Network repeater
- Colour
- White
- Antennas quantity
- 3
- Cabling technology
- 10/100Base-T(X)
- Host interface
- RJ-45
- Power consumption (typical)
- 7.3 W
- Brand
- TP-Link
- Category
- Network Extender
- Model
- RE200 V5
- Part number
- RE200 V5
- Also known as
- TP-Link RE200 V5 network extender Network repeater White 10, 100 Mbit/s
Specifications
35 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 433 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| WPS push button | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 3 |
| Antenna type | Internal |
| Transmitting power (FCC) | 30 dBm |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 433 Mbit/s |
| DHCP server | Yes |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Web-based management | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Power, WLAN |
| Quantity per pack | 1 pc(s) |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.3 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65.8 mm |
| Depth | 38.8 mm |
| Height | 110 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
