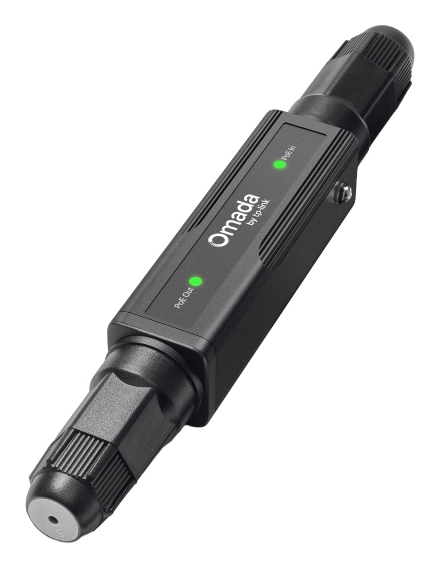

Omada PoE+ Extender
Model Omada PoE+ ExtenderPart no. POE20E-OUTDOOREAN 840460602648
26 specifications
- TypeNetwork repeater
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports2
- Power over Ethernet (PoE)Yes
- Operating temperature (T-T)-40 - 65 °C
Overview
- Type
- Network repeater
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 2
- Power over Ethernet (PoE)
- Yes
- Operating temperature (T-T)
- -40 - 65 °C
- Brand
- TP-Link
- Category
- Network Extender
- Model
- Omada PoE+ Extender
- Part number
- POE20E-OUTDOOR
- EAN / UPC
- 840460602648, 1210002606479, 1210002606486, 5054444925295
- Also known as
- TP-Link Omada PoE+ Extender Network repeater Black 10, 100, 1000 Mbit/s
Specifications
26 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 250 m |
| Data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat3, Cat5, Cat5e |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| International Protection (IP) code | IP68 |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | ACT, Link |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Maximum output power | 30 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Storage relative humidity (H-H) | 15 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 221.7 mm |
| Depth | 31 mm |
| Height | 31.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, BSMI, KC |
