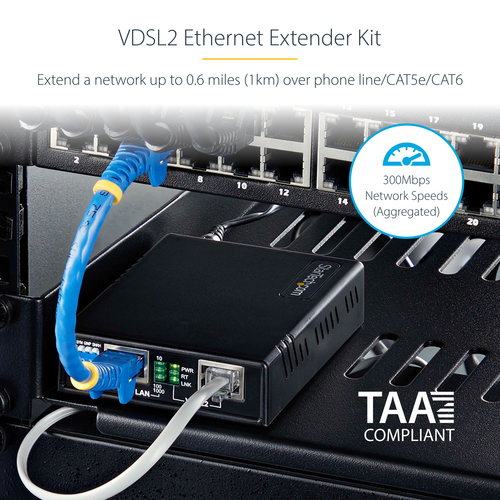

VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement
Model VDSL-LAN-EXTENDER-1GEAN 065030899925
38 specifications
- TypeNetwork repeater
- Weight116 g
- ColourBlack
- DC-in jackYes
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Type
- Network repeater
- Weight
- 116 g
- Colour
- Black
- DC-in jack
- Yes
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- VDSL-LAN-EXTENDER-1G
- Part number
- VDSL-LAN-EXTENDER-1G
- EAN / UPC
- 065030899925
- Also known as
- StarTech.com VDSL2 Ethernet Extender Kit over Single Pair Wire, Up to 0.6mi (1km) Long Range LAN Repeater over Phone Line/CAT5e/CAT6, Up to 300Mbps, Replacement
Specifications
38 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 1000 m |
| Data transfer rate | 300 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | RTL8685FB-CG |
| VLAN tagging | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| LED indicators | LAN, Power |
| Quantity per pack | 2 pc(s) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| External power adapter | Yes |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 74 mm |
| Depth | 97 mm |
| Height | 23 mm |
| Weight | 116 g |

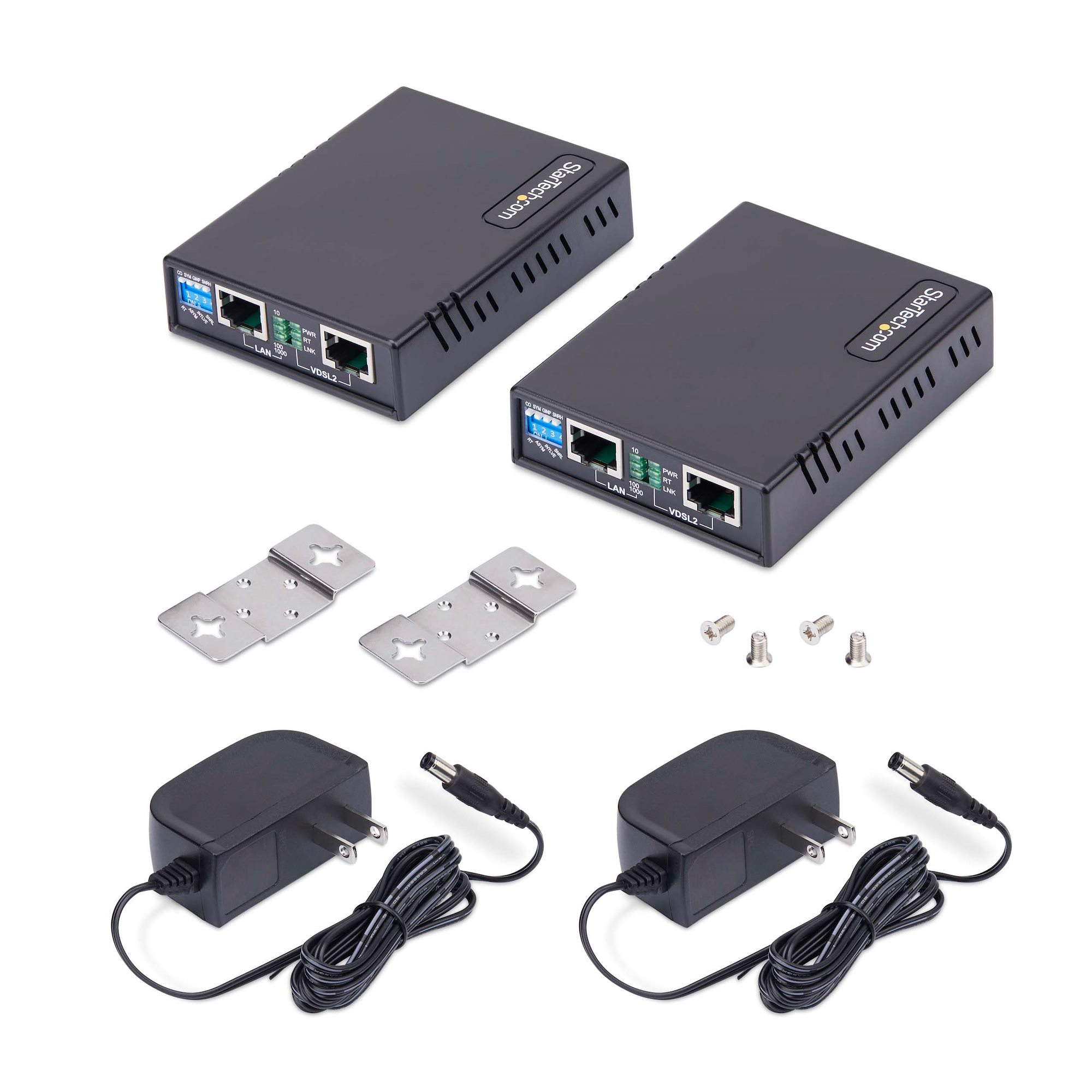

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 150 mm |
| Package depth | 180 mm |
| Package height | 130 mm |
| Package weight | 700 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 510 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 15 pc(s) |
