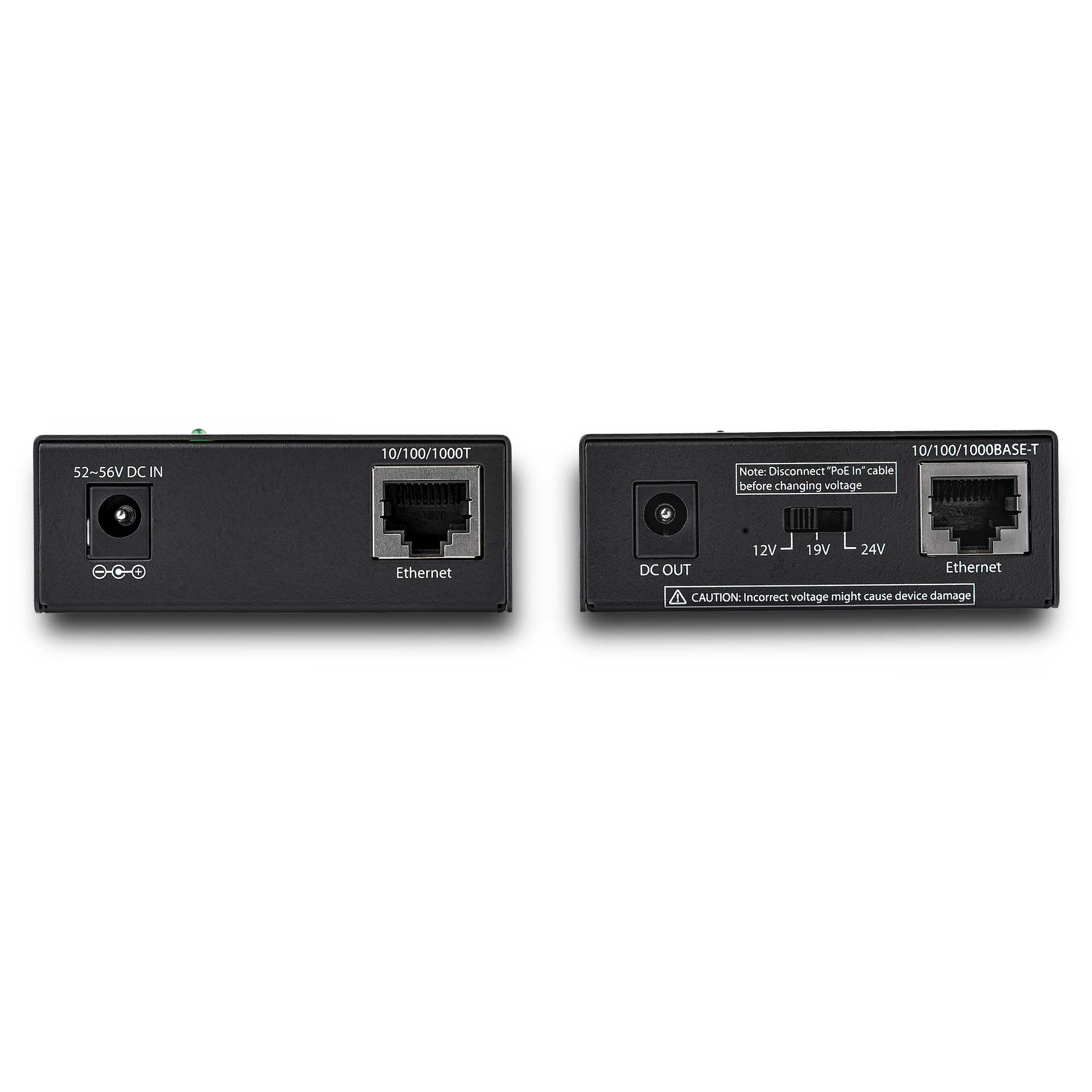

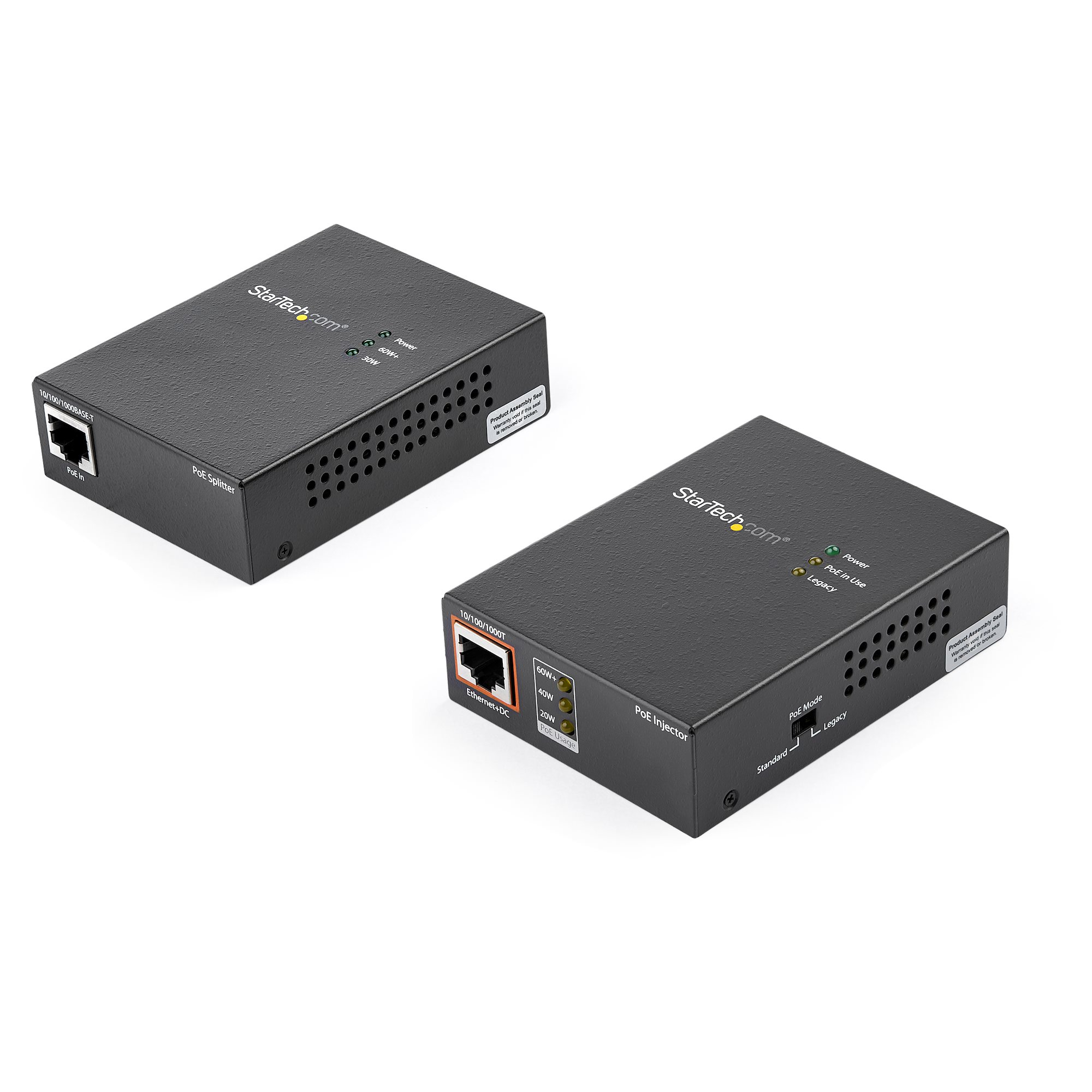

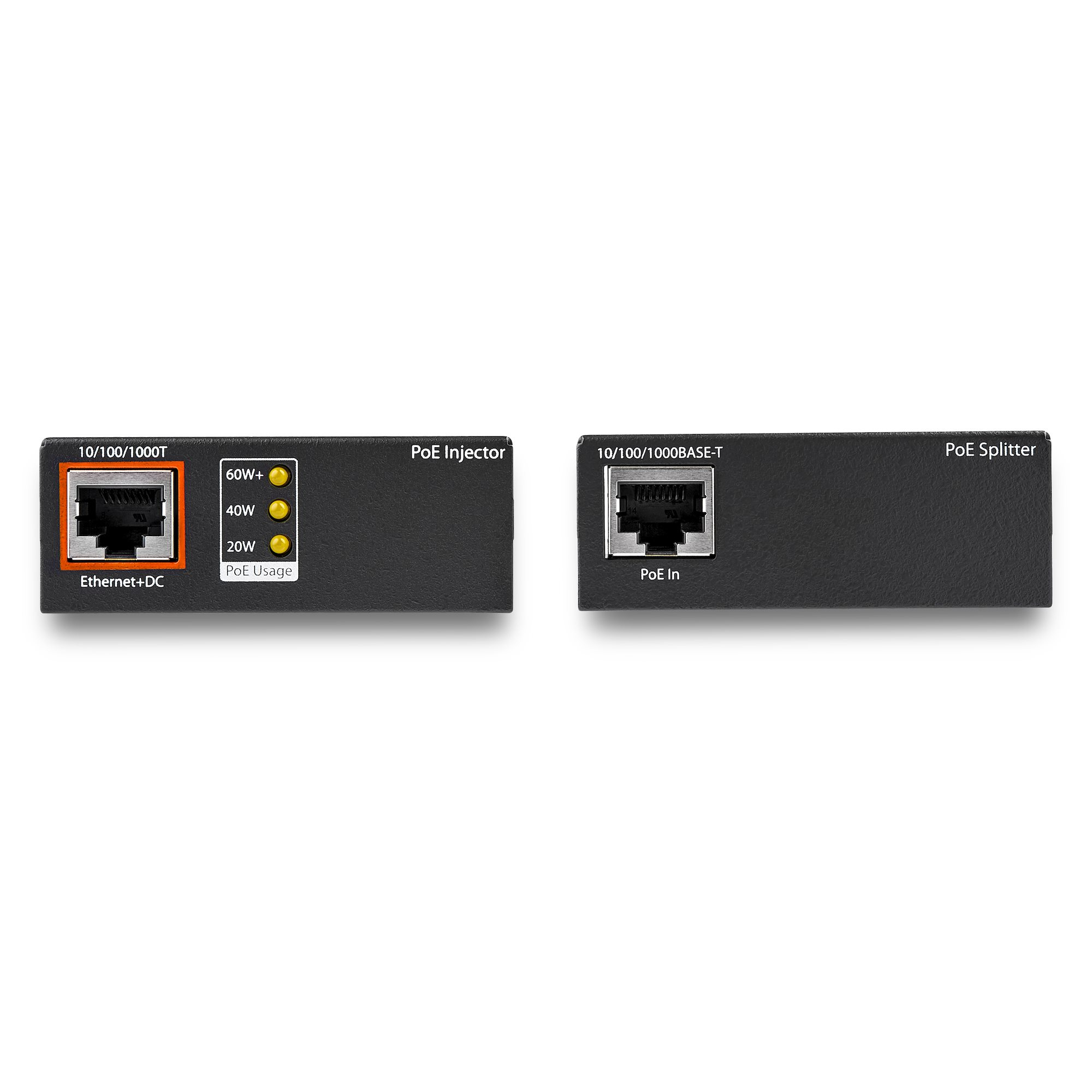

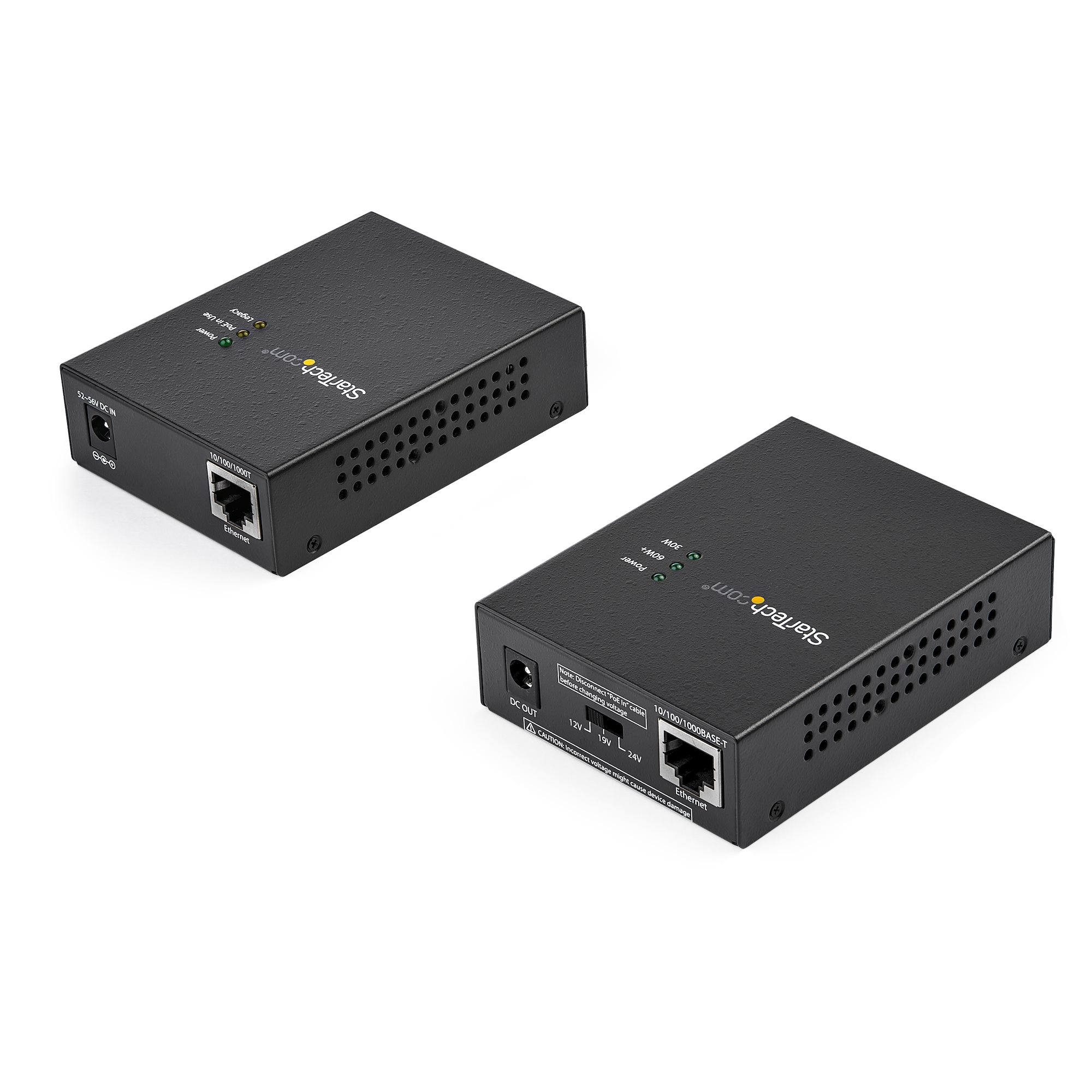

1 Port Gigabit PoE Injector & Splitter Kit
60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LA
Model UPOESPLT1GEAN 065030867542
41 specifications
- TypeNetwork transmitter & receiver
- Weight300 g
- ColourBlack, Brown
- Ethernet LAN (RJ-45) ports5
- AC input voltage100 - 240 V
- Operating temperature (T-T)0 - 50 °C
Overview
- Type
- Network transmitter & receiver
- Weight
- 300 g
- Colour
- Black, Brown
- Ethernet LAN (RJ-45) ports
- 5
- AC input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- UPOESPLT1G
- Part number
- UPOESPLT1G
- EAN / UPC
- 065030867542
- Also known as
- StarTech.com 1 Port Gigabit PoE Injector & Splitter Kit - 60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LA
Specifications
41 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Auto MDIX IEEE | No |
| Flow control support | No |
| Jumbo frames support | No |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 50000 h |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Brown |
| Housing material | Metal |
| LED indicators | PoE, System |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Power consumption (typical) | 71.82 W |
| Output current | 1.33 A |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) voltage range | 12 - 24 V |
| Included power plug types | AU, EU, JP, NA, UK |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 233 mm |
| Depth | 390 mm |
| Height | 85 mm |
| Weight | 300 g |

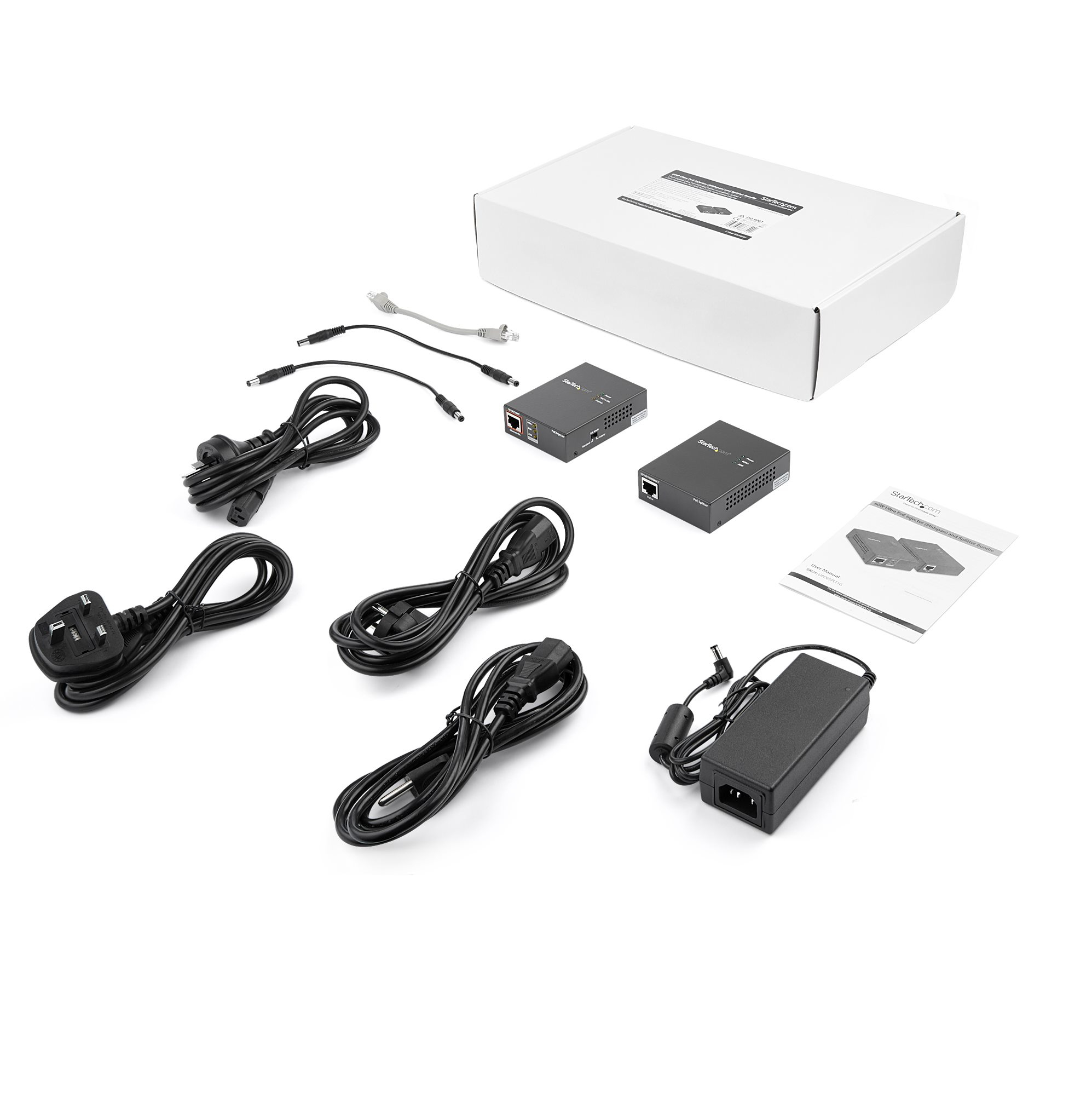

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 334 mm |
| Package depth | 284 mm |
| Package height | 70 mm |
| Package weight | 1.9 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 545 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 6 pc(s) |
