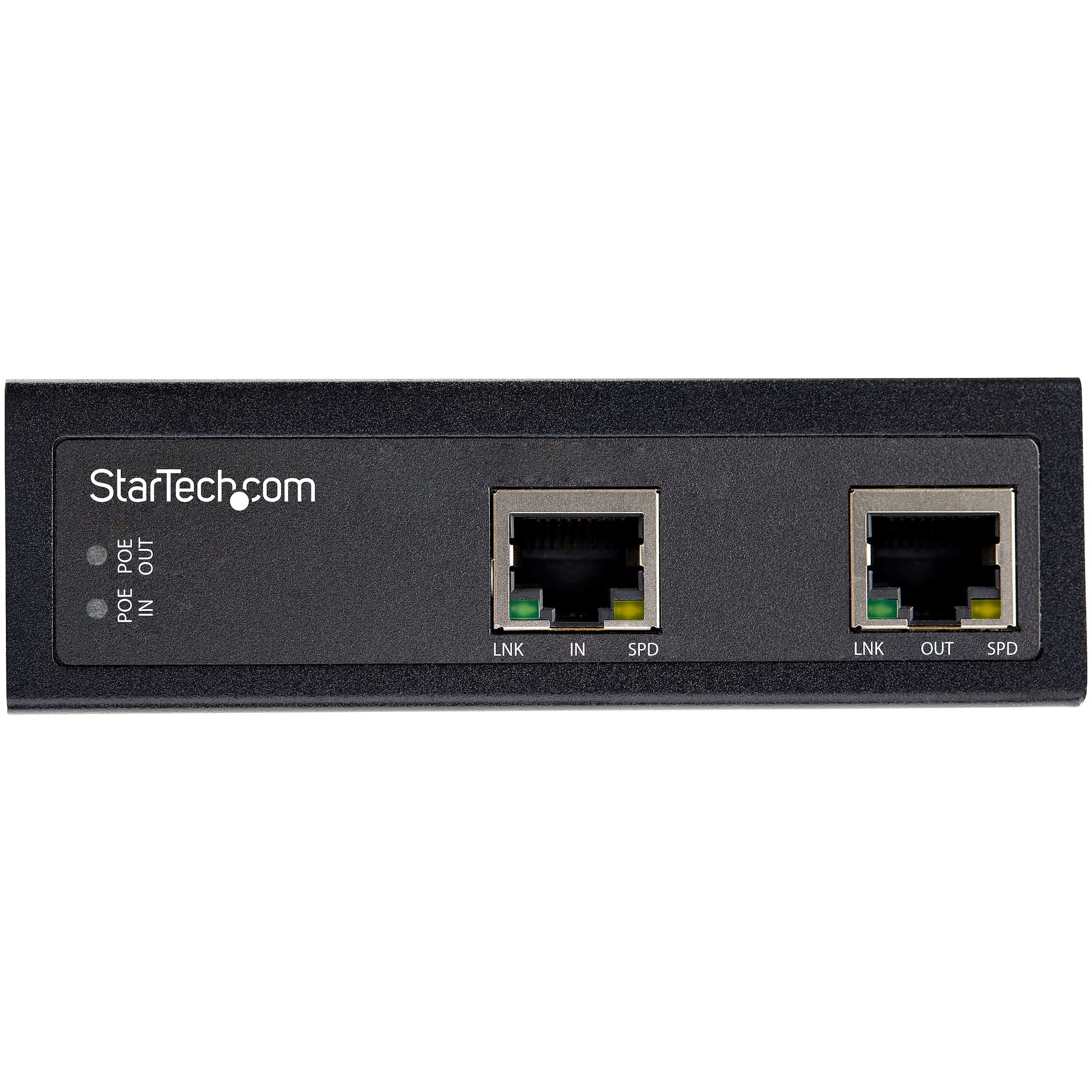

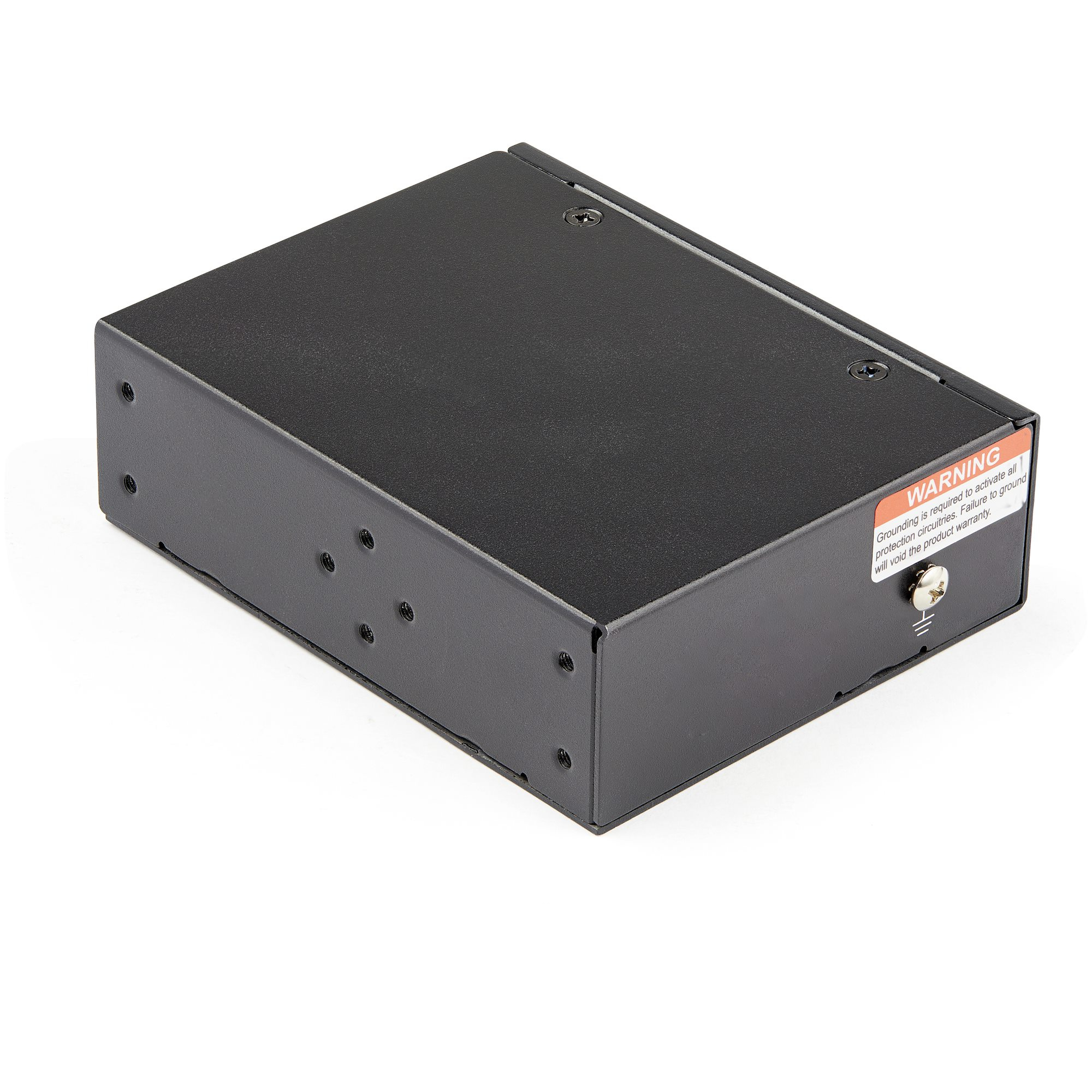

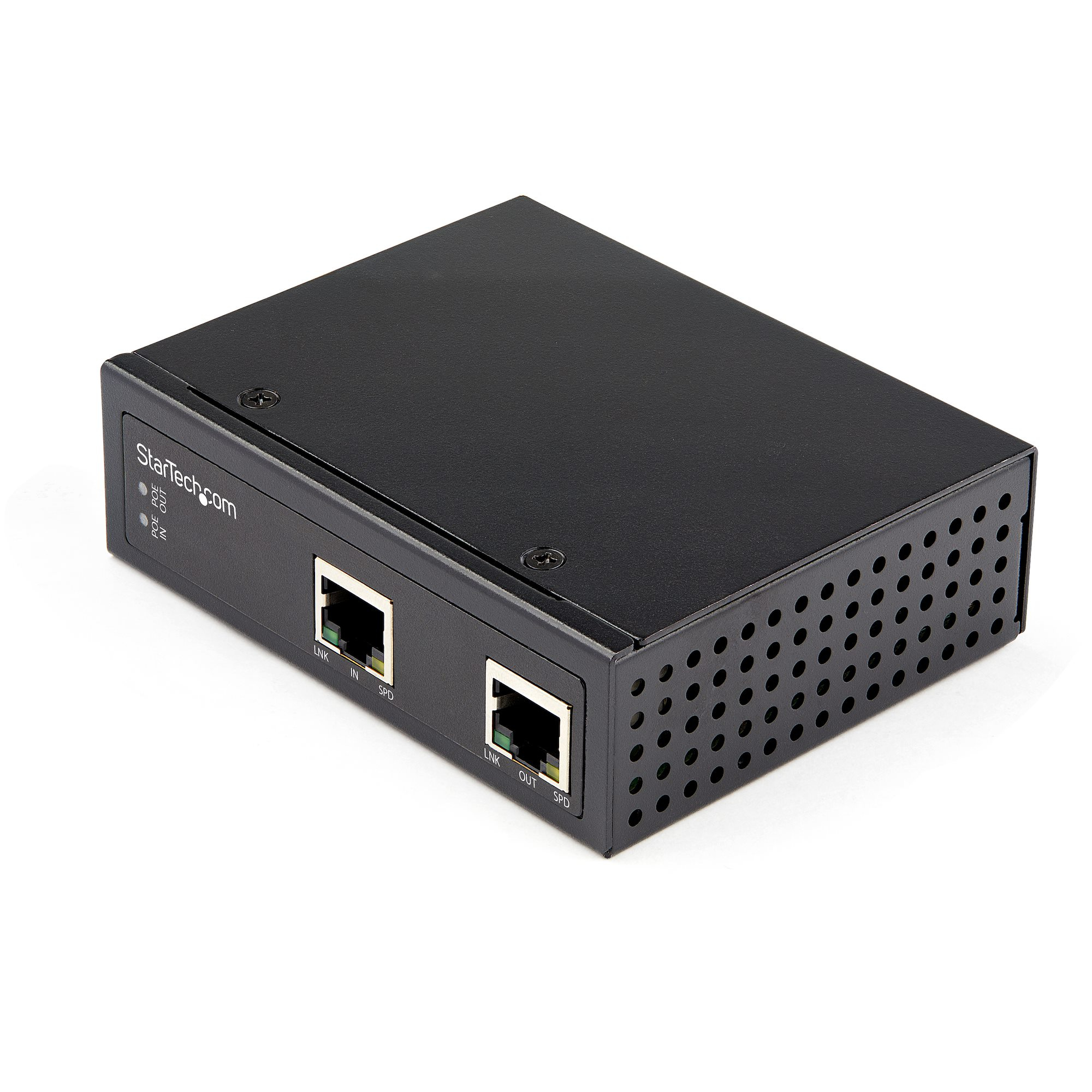

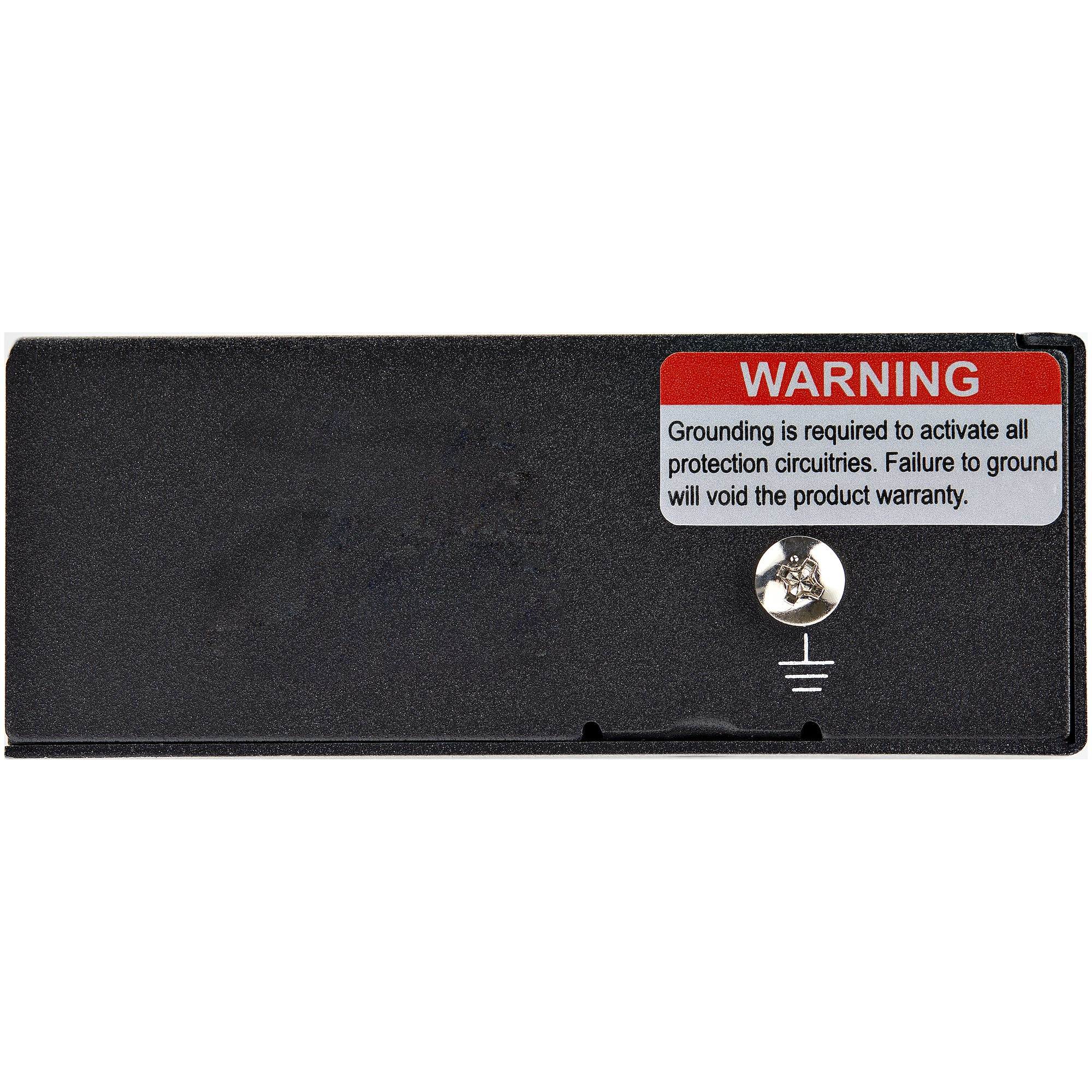

Industrial Single Port Gigabit PoE Extender
60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40
Model POEEXT1G60WEAN 065030889650
35 specifications
- TypeNetwork repeater
- Weight148 g
- ColourBlack
- Power over Ethernet (PoE) ports quantity2
- Supported network protocols (IPv4)CSMA/CD
- Power consumption (typical)2.7 W
Overview
- Type
- Network repeater
- Weight
- 148 g
- Colour
- Black
- Power over Ethernet (PoE) ports quantity
- 2
- Supported network protocols (IPv4)
- CSMA/CD
- Power consumption (typical)
- 2.7 W
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- POEEXT1G60W
- Part number
- POEEXT1G60W
- EAN / UPC
- 065030889650
- Also known as
- StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40
Specifications
35 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat5e, Cat6 |
| Chipset | Realtek RTL8367, Microsemi PD69101 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| Mean time between failures (MTBF) | 551848 h |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ports & interfaces
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC |
Management features
| Specification | Value |
|---|---|
| Supported network protocols (IPv4) | CSMA/CD |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.7 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Weight | 148 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 166 mm |
| Package depth | 214 mm |
| Package height | 66 mm |
| Package weight | 390 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 254 mm |
| Products per master (outer) case | 10 pc(s) |
