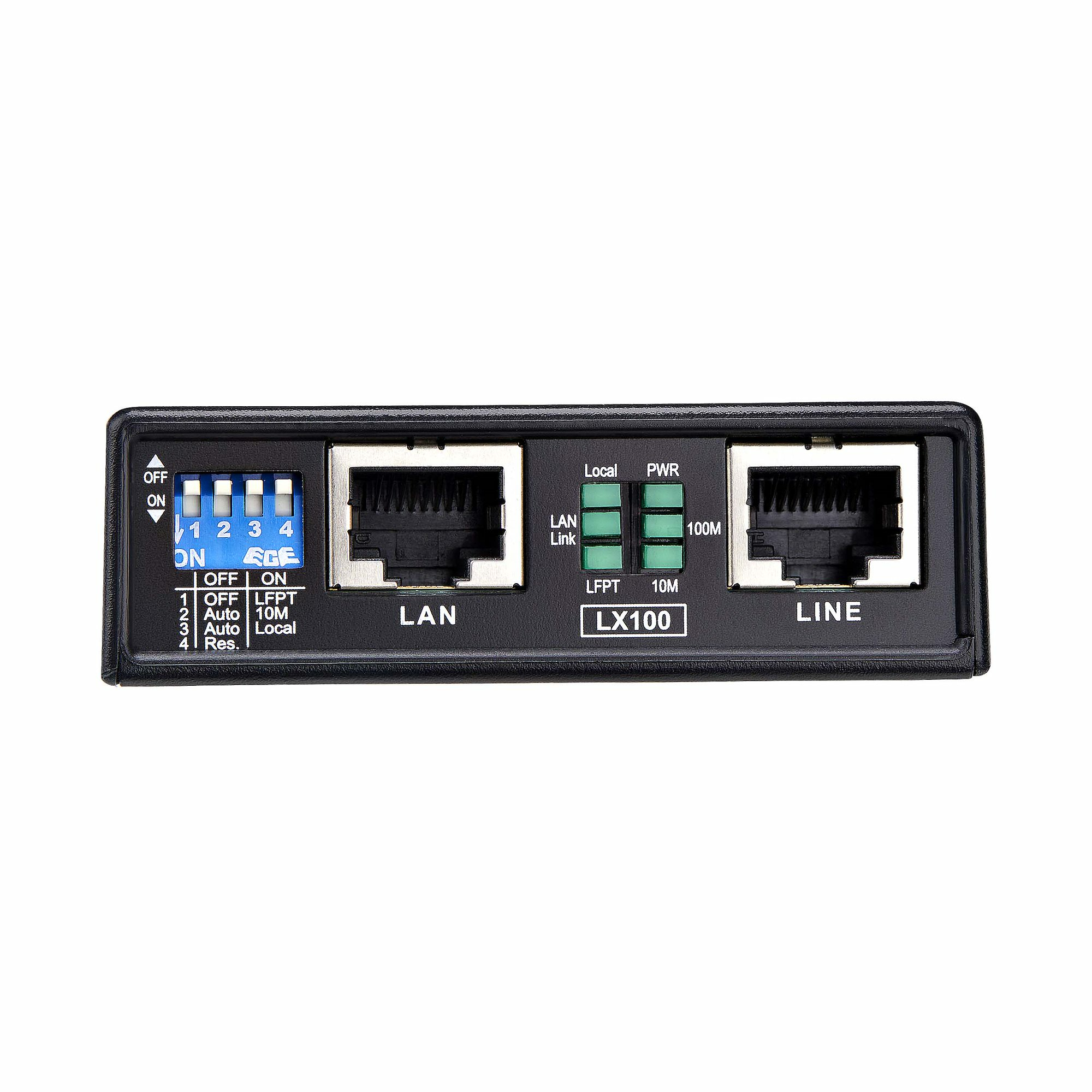

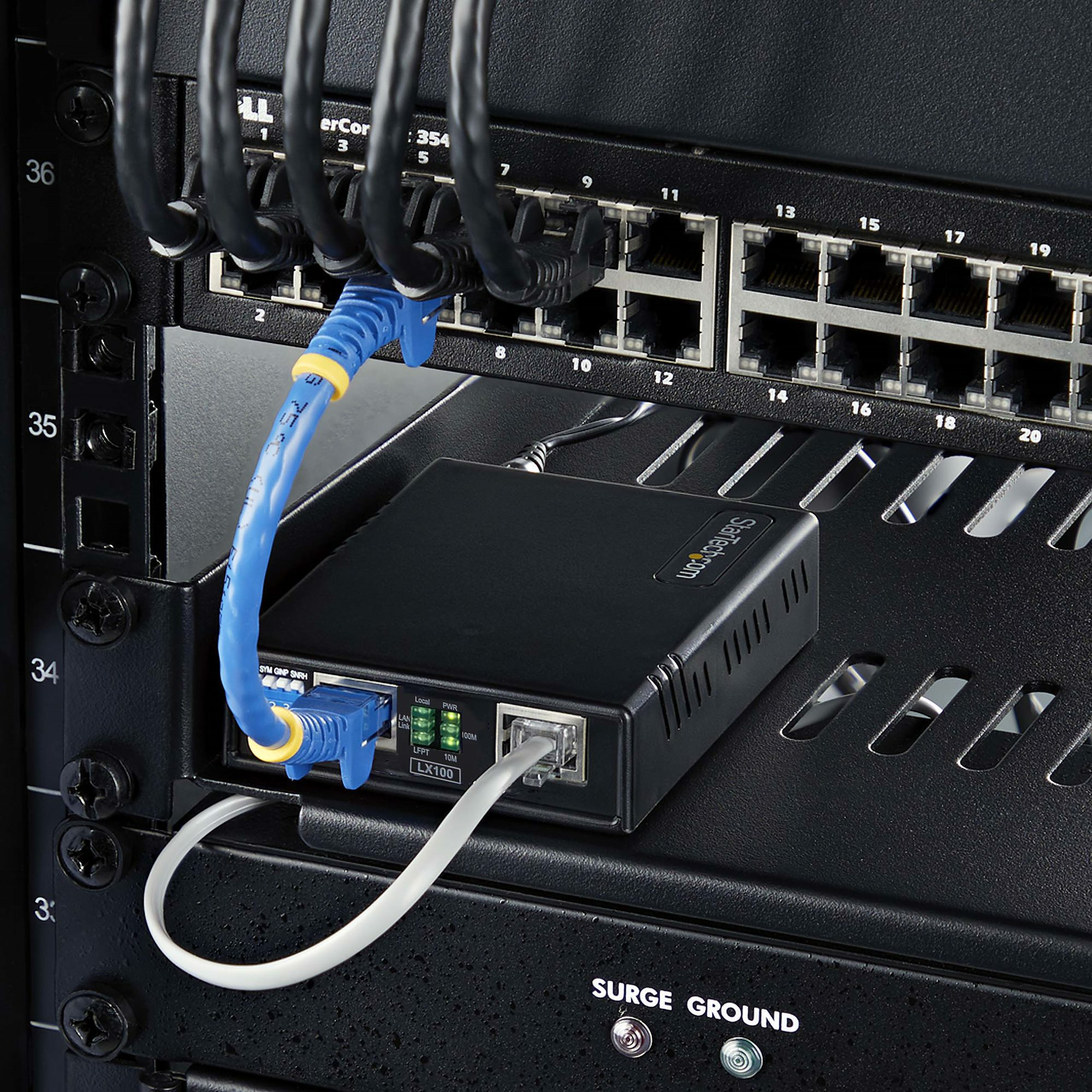

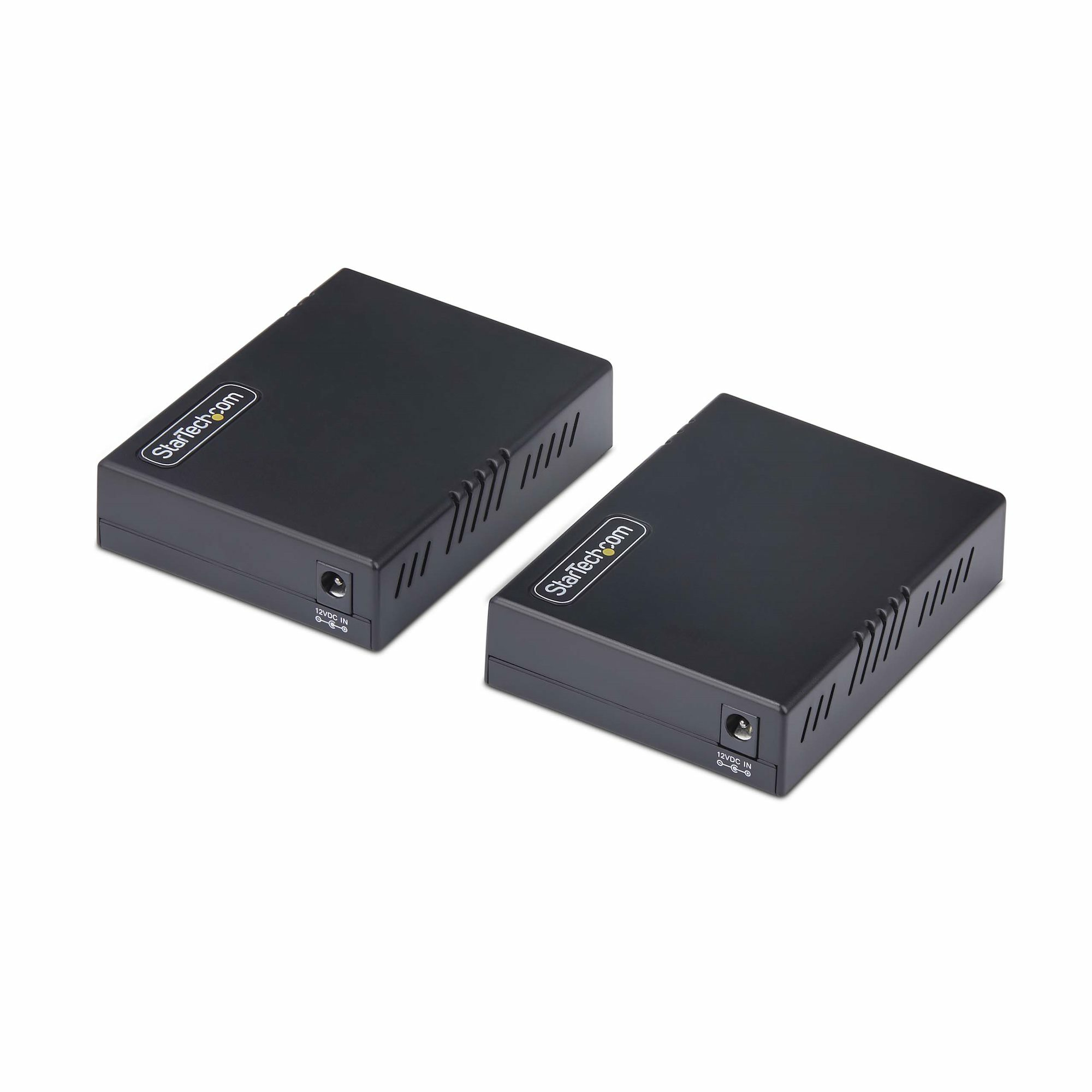

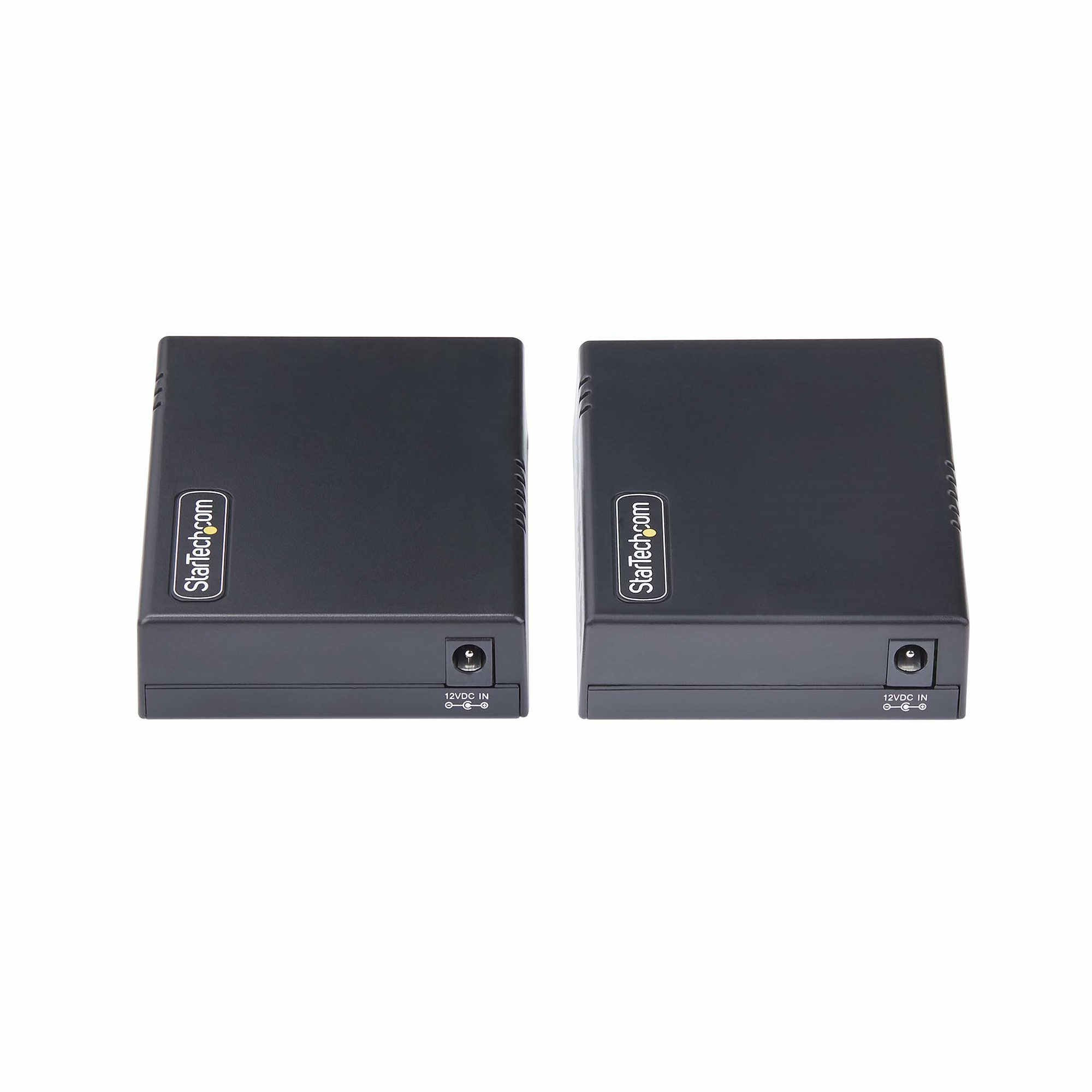

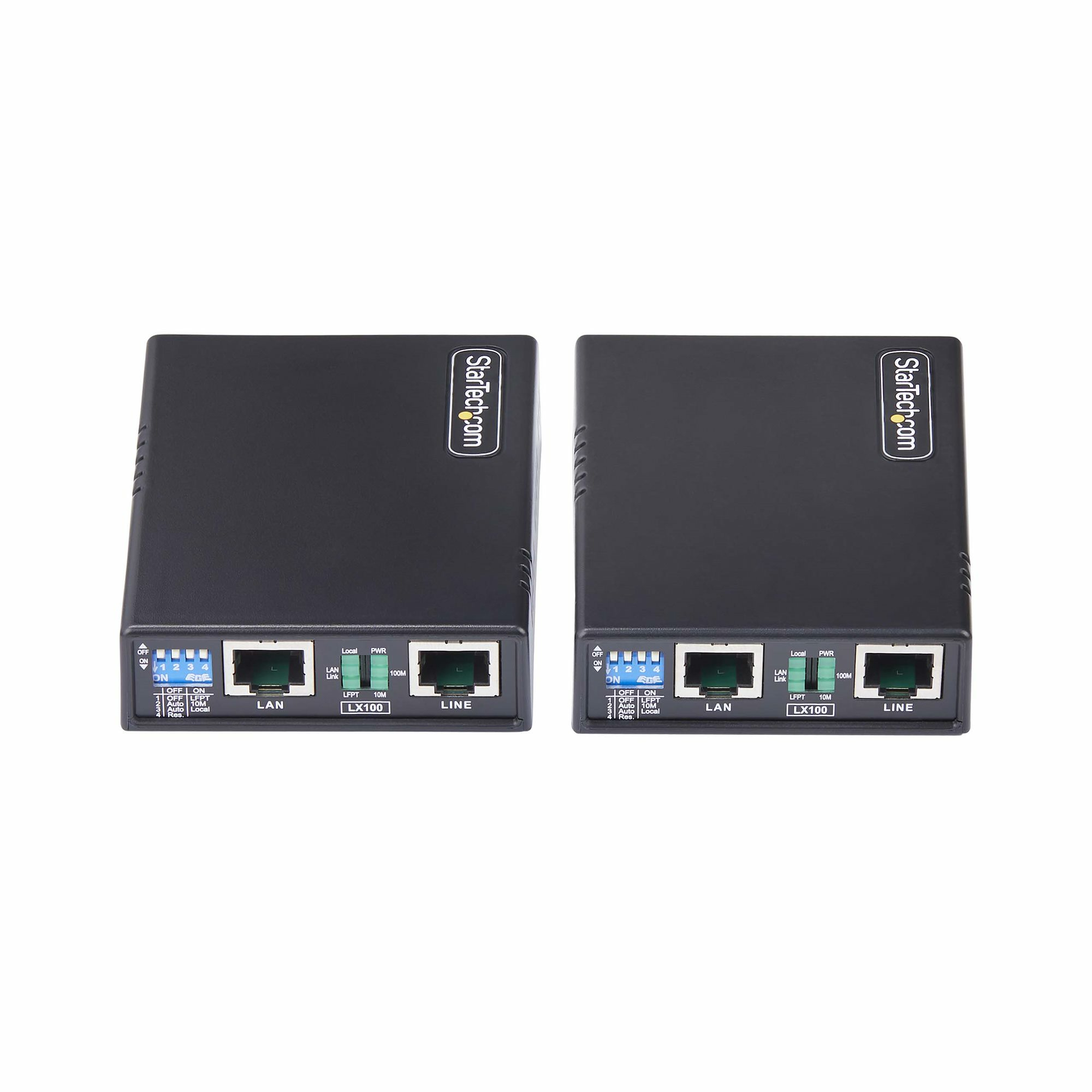

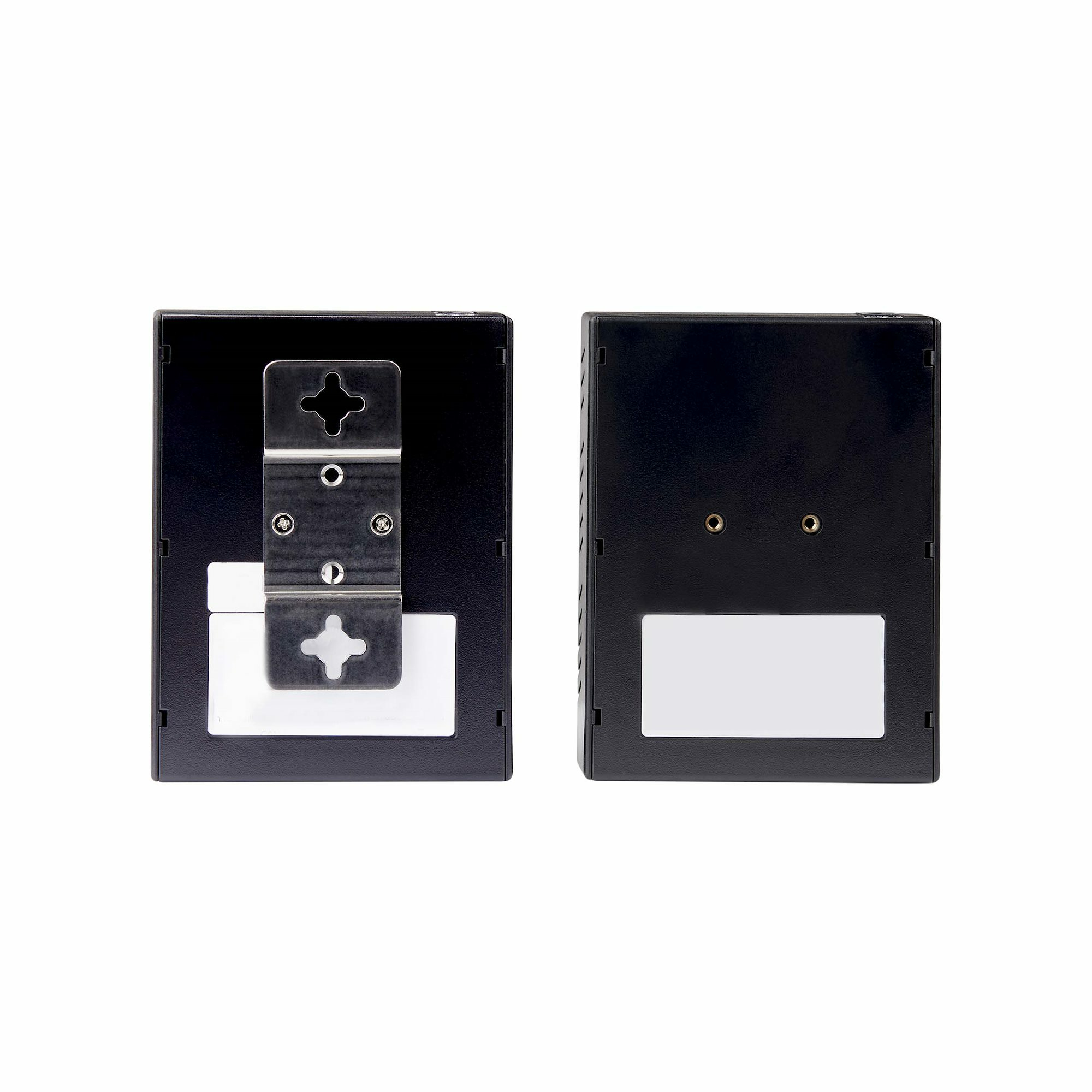

10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Se
Model C2-ETHERNET-EXTENDEREAN 065030907439
41 specifications
- TypeNetwork transmitter & receiver
- Weight73.5 g
- ColourBlack
- Cabling technology10/100Base-T(X)
- RJ-45 ports quantity (transmitter)2
- AC input voltage100 - 240 V
Overview
- Type
- Network transmitter & receiver
- Weight
- 73.5 g
- Colour
- Black
- Cabling technology
- 10/100Base-T(X)
- RJ-45 ports quantity (transmitter)
- 2
- AC input voltage
- 100 - 240 V
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- C2-ETHERNET-EXTENDER
- Part number
- C2-ETHERNET-EXTENDER
- EAN / UPC
- 065030907439
- Also known as
- StarTech.com 10/100 Ethernet Extender Kit, Up to 0.5Mi (800M), Long-Range LAN over Single Pair Wire/Phone Line/RJ45 UTP, Ethernet Booster For IP Video/Remote Se
Specifications
41 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 800 m |
| Data transfer rate | 100 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6, Cat6a |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDIX IEEE | No |
| Jumbo frames support | Yes |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3i, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity (transmitter) | 2 |
| RJ-45 ports quantity (receiver) | 2 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic, Steel |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 3.8 W |
| Output voltage | 12 V |
| Output current | 1 A |
| Power plug type | Type M |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 23 mm |
| Height | 73 mm |
| Weight | 73.5 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |

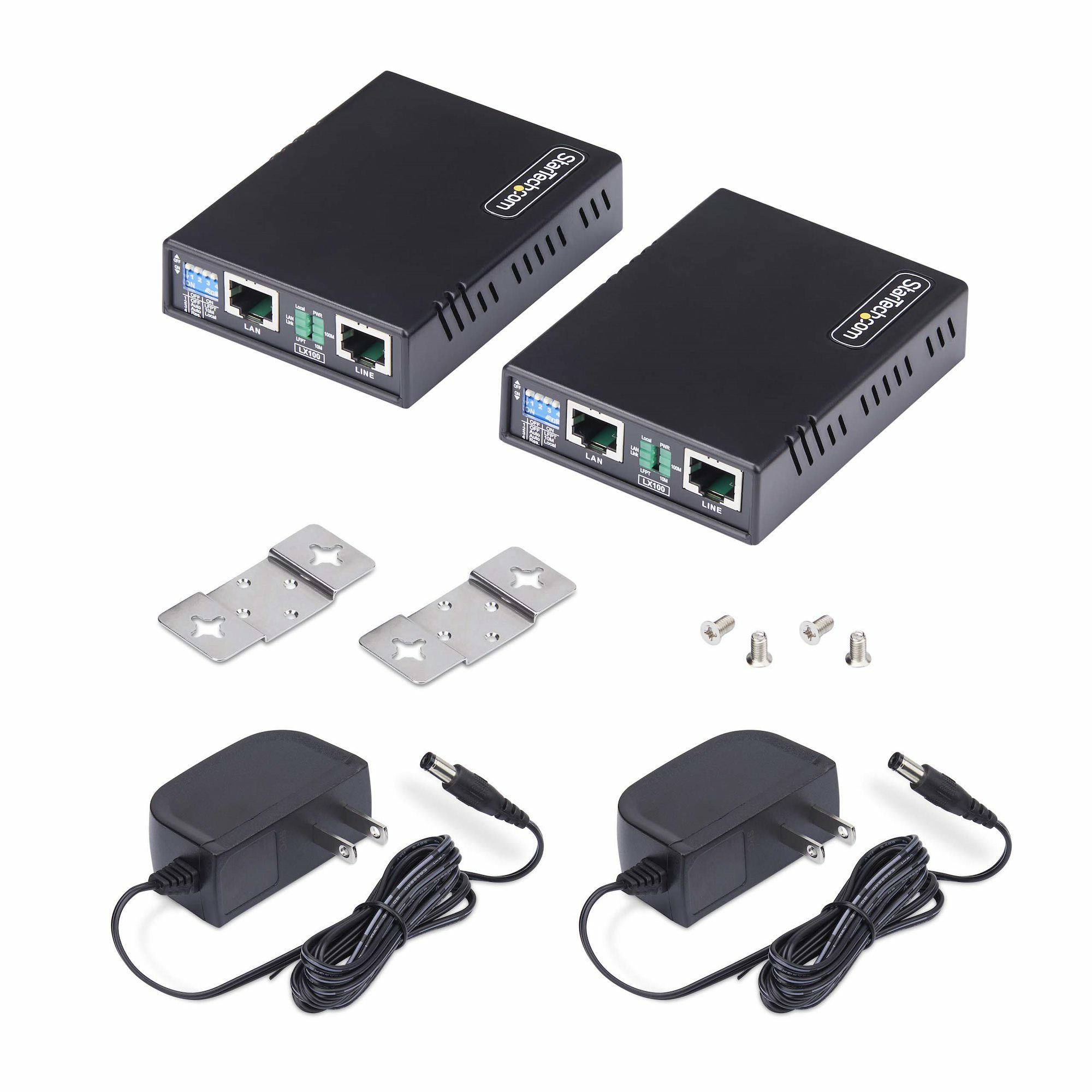

| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 154 mm |
| Package depth | 183 mm |
| Package height | 135 mm |
| Package weight | 900 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 310 mm |
| Master (outer) case length | 515 mm |
| Master (outer) case height | 425 mm |
| Products per master (outer) case | 15 pc(s) |
