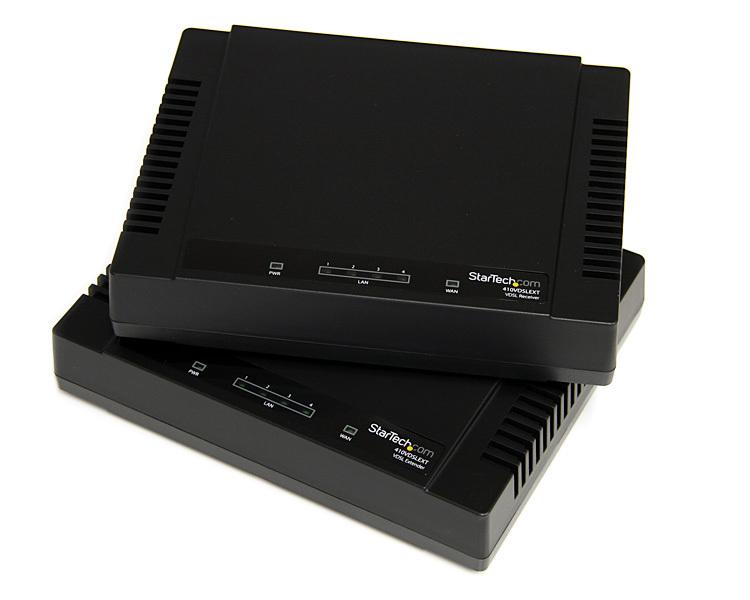

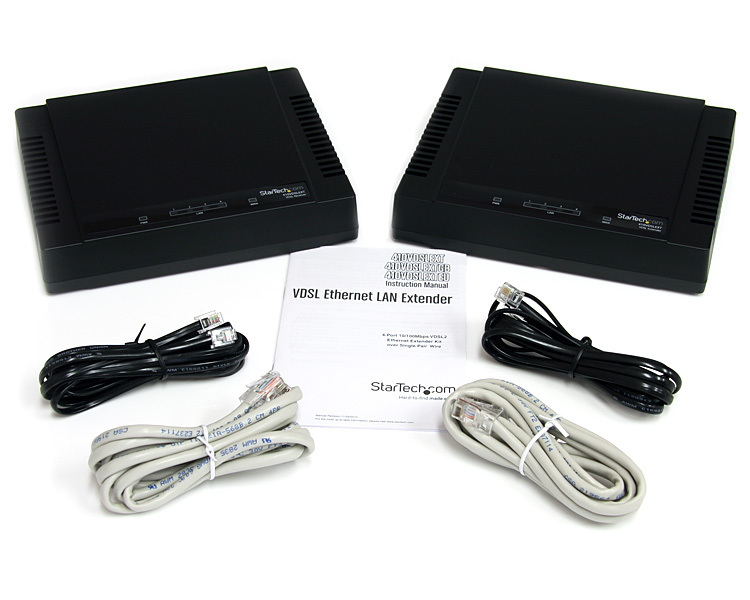

4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km
Model 4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1kmPart no. 410VDSLEXTGBEAN 065030842945
29 specifications
- TypeNetwork transmitter & receiver
- Weight418 g
- ColourBlack
- Cabling technology10/100Base-T(X)
- Ethernet LAN (RJ-45) ports4
- AC input voltage110-240 V
Overview
- Type
- Network transmitter & receiver
- Weight
- 418 g
- Colour
- Black
- Cabling technology
- 10/100Base-T(X)
- Ethernet LAN (RJ-45) ports
- 4
- AC input voltage
- 110-240 V
- Brand
- StarTech.com
- Category
- Network Extender
- Model
- 4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km
- Part numbers
- 410VDSLEXTGB, 410VDSLEXT
- EAN / UPC
- 065030842945
- Also known as
- StarTech.com 4 Port 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire - 1km Network transmitter & receiver Black
Specifications
29 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 1000 m |
| Data transfer rate | 100 Mbit/s |
| Chipset | VINAX D+A / LANTIQ |
| Auto MDIX IEEE | Yes |
| Duplex system | Full |
| Mean time between failures (MTBF) | 35000 h |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110-240 V |
| Input current | 0.5 A |
| Power consumption (typical) | 5 W |
| External power adapter | Yes |
| Output voltage | 12 V |
| Output current | 1.25 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 143 mm |
| Depth | 180 mm |
| Height | 36 mm |
| Weight | 418 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.75 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
