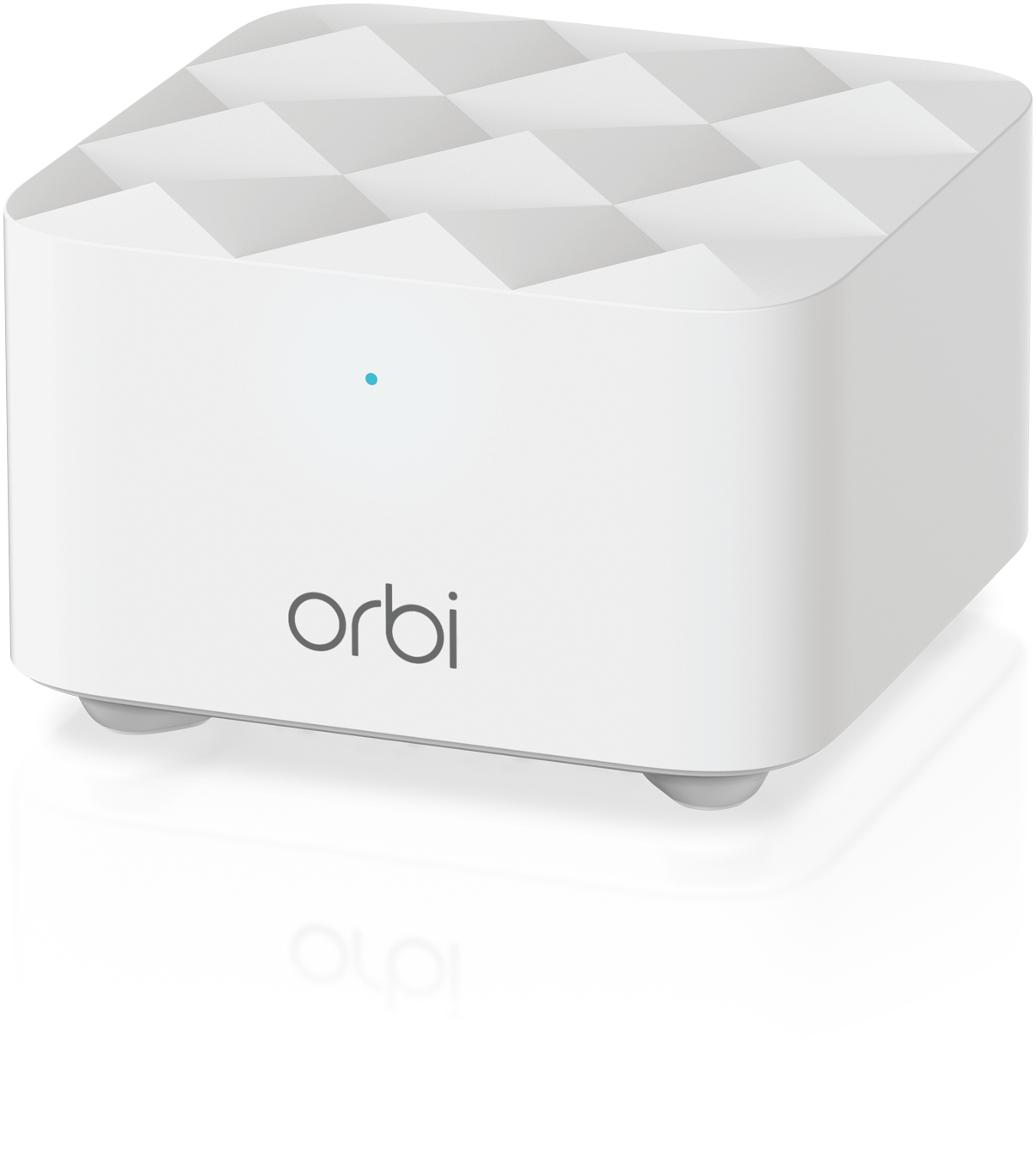

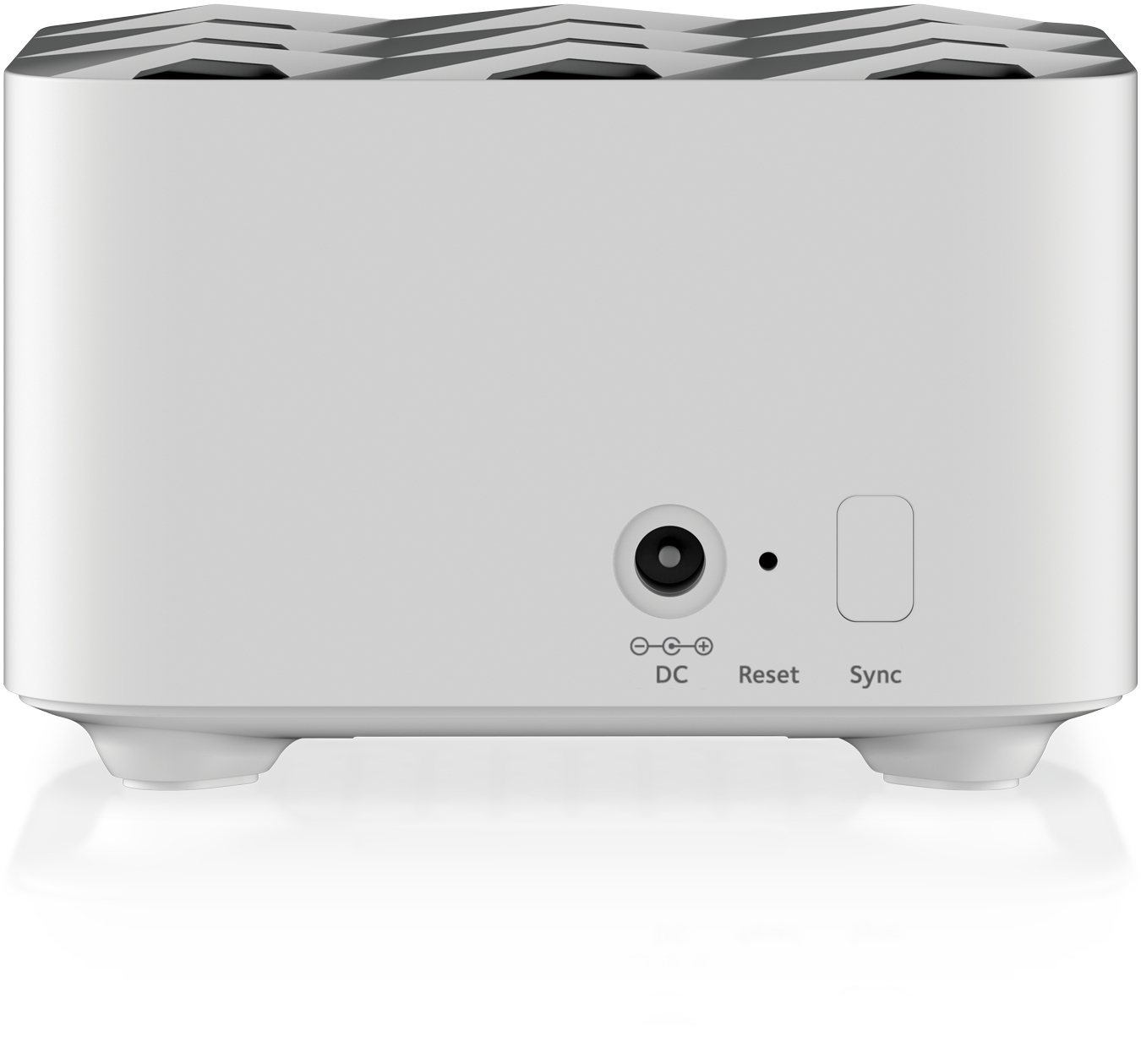

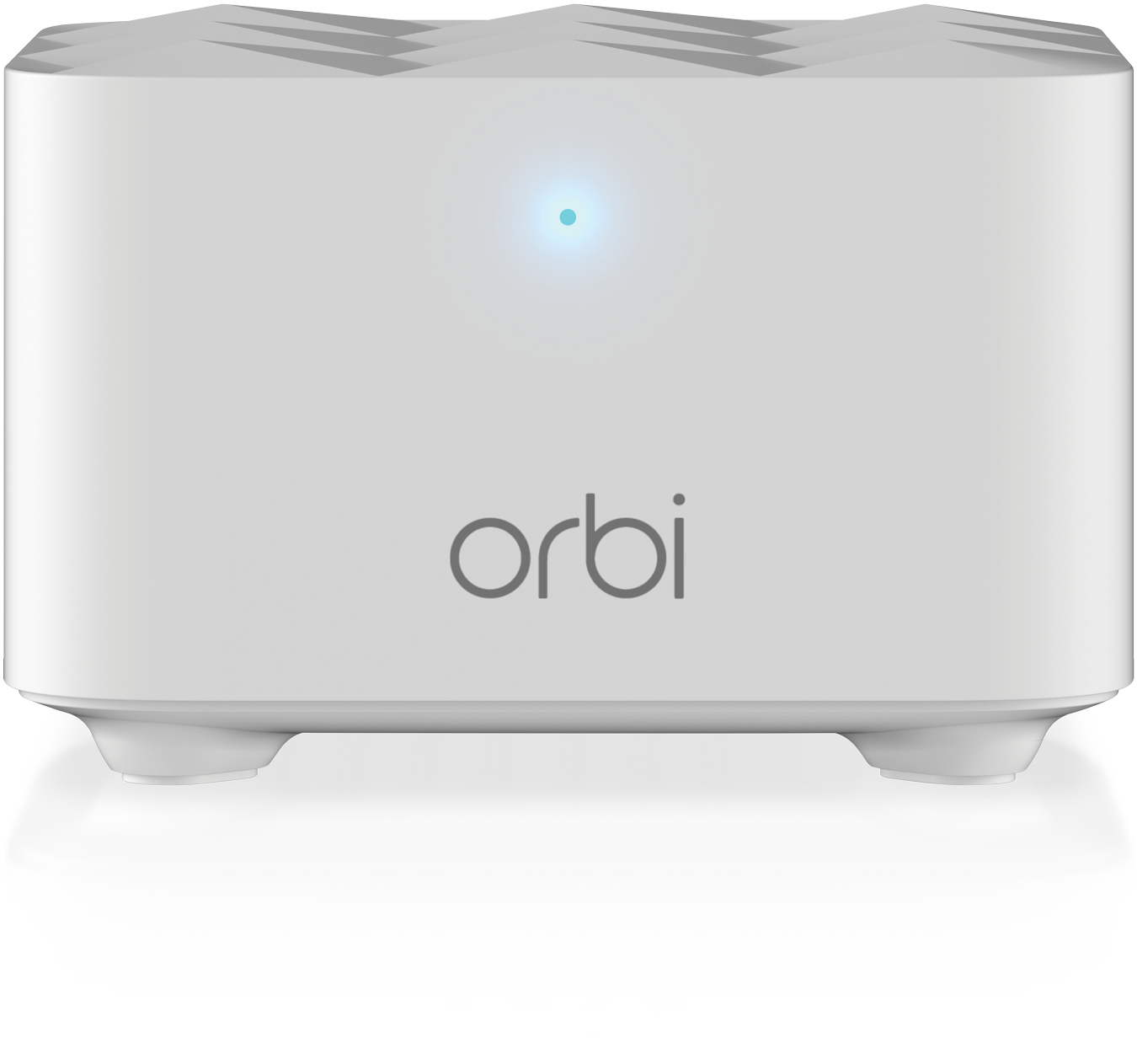

WBC502 Network repeater White 10, 100, 1000 Mbit/s
Model WBC502Part no. RBS10-100PESEAN 606449148145
36 specifications
- TypeNetwork repeater
- ColourWhite
- Antennas quantity2
- Wi-FiYes
- Operating temperature (T-T)0 - 40 °C
- Width101.6 mm
Overview
- Type
- Network repeater
- Colour
- White
- Antennas quantity
- 2
- Wi-Fi
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 101.6 mm
- Brand
- NETGEAR
- Category
- Network Extender
- Model
- WBC502
- Part numbers
- RBS10-100PES, WBC502-100UKS
- EAN / UPC
- 606449148145, 606449146790
- Also known as
- NETGEAR WBC502 Network repeater White 10, 100, 1000 Mbit/s
Specifications
36 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 140 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Modulation | 256-QAM |
| Security algorithms | WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Reset button | Yes |
| Certification | FCC 15, IECS-003, EN 55032, EN 55035, AS/NZS CISPR |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 101.6 mm |
| Height | 50.8 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 140 mm |
| Package depth | 147 mm |
| Package height | 135 mm |
| Package weight | 610 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 314 mm |
| Master (outer) case length | 326 mm |
| Master (outer) case height | 238 mm |
| Master (outer) case gross weight | 3.33 kg |
| Products per master (outer) case | 4 pc(s) |
