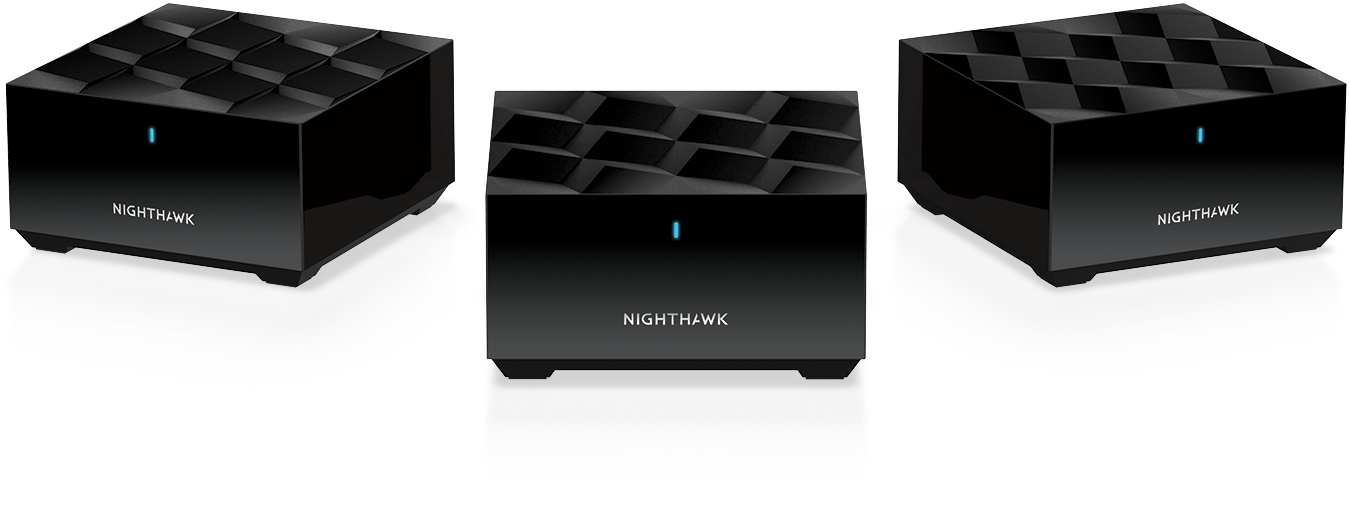

MK63 Network repeater Black 10, 100, 1000 Mbit/s
Model MK63Part no. MK63-100PESEAN 606449144710
43 specifications
- Memory256 MB
- TypeNetwork repeater
- Weight285 g
- ColourBlack
- Antennas quantity4
- Cabling technology10/100/1000Base-T(X)
Overview
- Memory
- 256 MB
- Type
- Network repeater
- Weight
- 285 g
- Colour
- Black
- Antennas quantity
- 4
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- NETGEAR
- Category
- Network Extender
- Model
- MK63
- Part number
- MK63-100PES
- EAN / UPC
- 606449144710
- Also known as
- NETGEAR MK63 Network repeater Black 10, 100, 1000 Mbit/s
Specifications
43 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 4500 m |
| Data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 4 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Bandwidth | 2.4 GHz |
| Modulation | 1024-QAM |
Ports & interfaces
| Specification | Value |
|---|---|

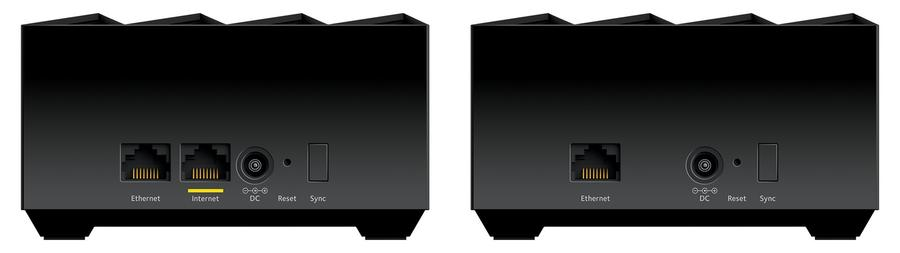

| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Reset button | Yes |
| Certification | FCC 15, IECS-003, EN 55032, EN 55035, AS/NZS CISPR |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 101.6 mm |
| Height | 50.8 mm |
| Weight | 285 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 316 mm |
| Package depth | 195 mm |
| Package height | 139 mm |
| Package weight | 2.05 kg |
Features
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Flash memory | 128 MB |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 329 mm |
| Master (outer) case height | 317 mm |
| Master (outer) case gross weight | 4.94 kg |
| Products per master (outer) case | 2 pc(s) |
