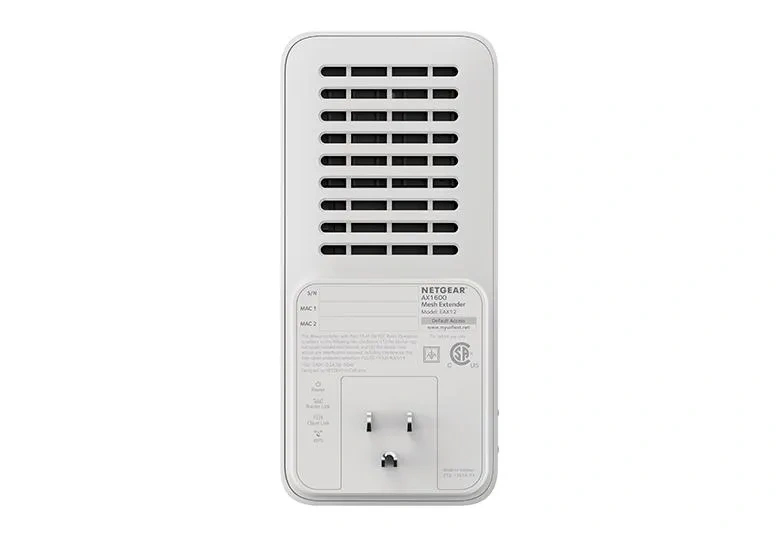

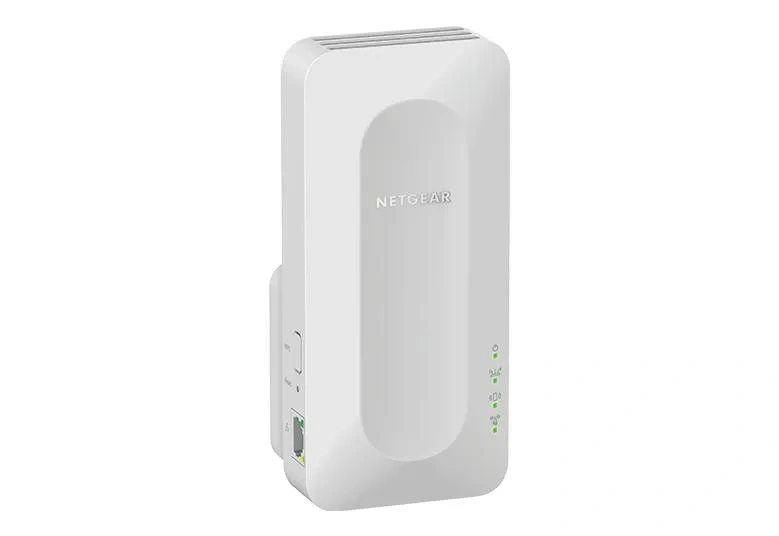

EAX12 Network repeater White 10, 100, 1000 Mbit/s
Model EAX12Part no. EAX12-100CNSEAN 606449154115
26 specifications
- TypeNetwork repeater
- Weight222 g
- ColourWhite
- Antennas quantity2
- Ethernet LAN interface typeGigabit Ethernet
- Ethernet LAN (RJ-45) ports1
Overview
- Type
- Network repeater
- Weight
- 222 g
- Colour
- White
- Antennas quantity
- 2
- Ethernet LAN interface type
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- NETGEAR
- Category
- Network Extender
- Model
- EAX12
- Part numbers
- EAX12-100CNS, EAX12-100AUS, EAX12-100NAS
- EAN / UPC
- 606449154115, 606449154122, 606449154153
- Also known as
- NETGEAR EAX12 Network repeater White 10, 100, 1000 Mbit/s
Specifications
26 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 1600 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), 802.11a |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | OFDM |
| Security algorithms | 128-bit AES, WPA-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Mounting type | Wall |
| LED indicators | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.4 mm |
| Depth | 52.3 mm |
| Height | 149 mm |
| Weight | 222 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
