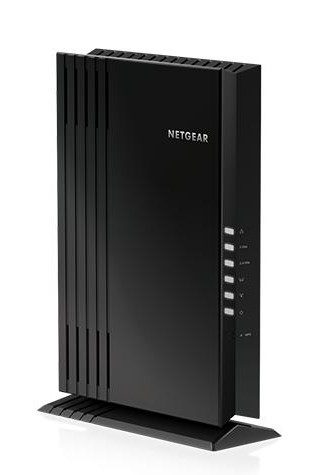

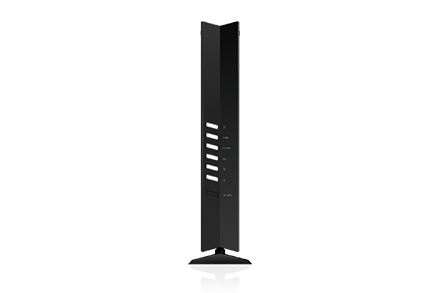

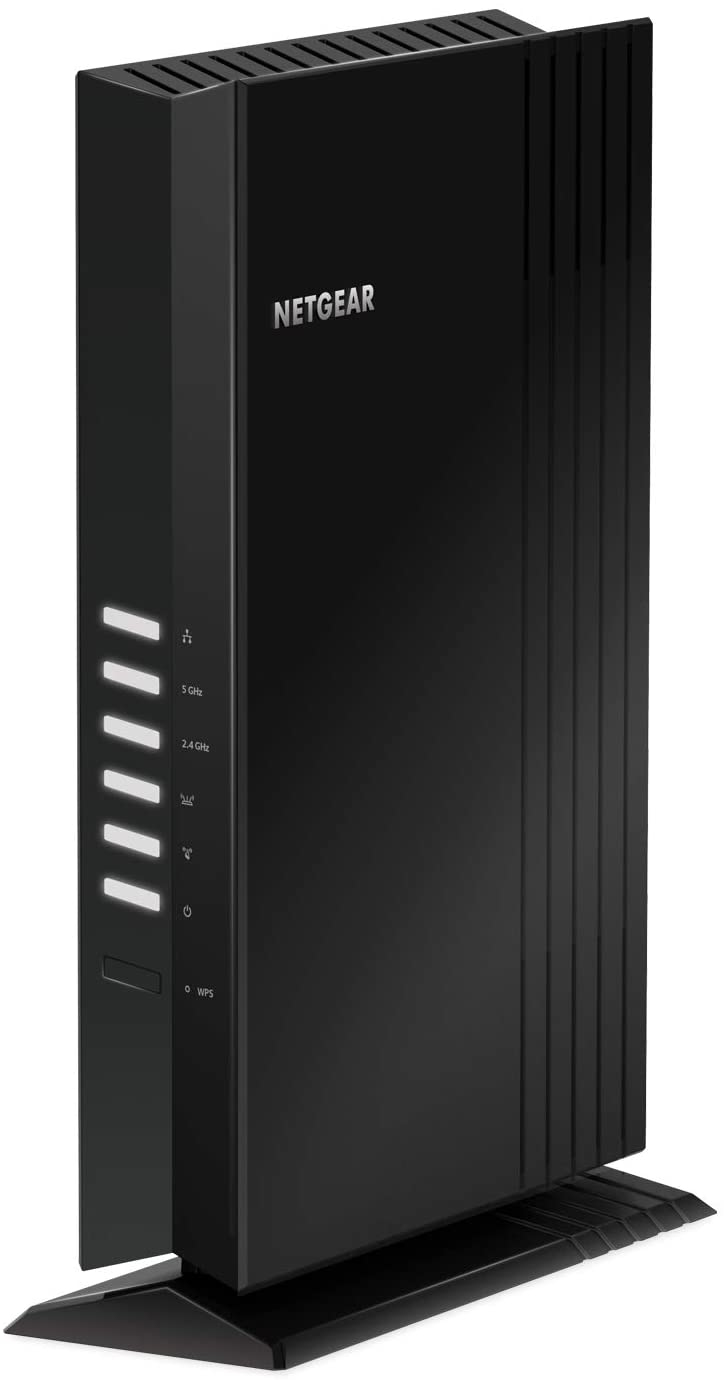

4PT AX1800 WIFI MESH EXTENDER
Model 4PT AX1800 WIFI MESH EXTENDERPart no. EAX20-100EUSEAN 606449150780
32 specifications
- TypeNetwork repeater
- Weight504.5 g
- ColourBlack
- Antennas quantity2
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports4
Overview
- Type
- Network repeater
- Weight
- 504.5 g
- Colour
- Black
- Antennas quantity
- 2
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- NETGEAR
- Category
- Network Extender
- Model
- 4PT AX1800 WIFI MESH EXTENDER
- Part number
- EAX20-100EUS
- EAN / UPC
- 606449150780
- Also known as
- NETGEAR 4PT AX1800 WIFI MESH EXTENDER Network repeater Black 10, 100, 1000 Mbit/s
Specifications
32 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Data transfer rate | 1800 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WPS push button | Yes |
| Browser supported | Microsoft® Internet Explorer® 8.0, Firefox® 20 or Safari® 5.1 or Google Chrome® 25.0 browsers or higher |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Modulation | 1024-QAM |
| Security algorithms | 128-bit AES, WPA-PSK |
| Web-based management | Yes |

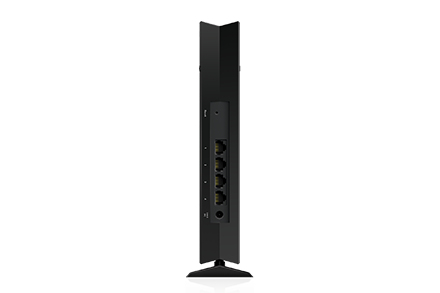

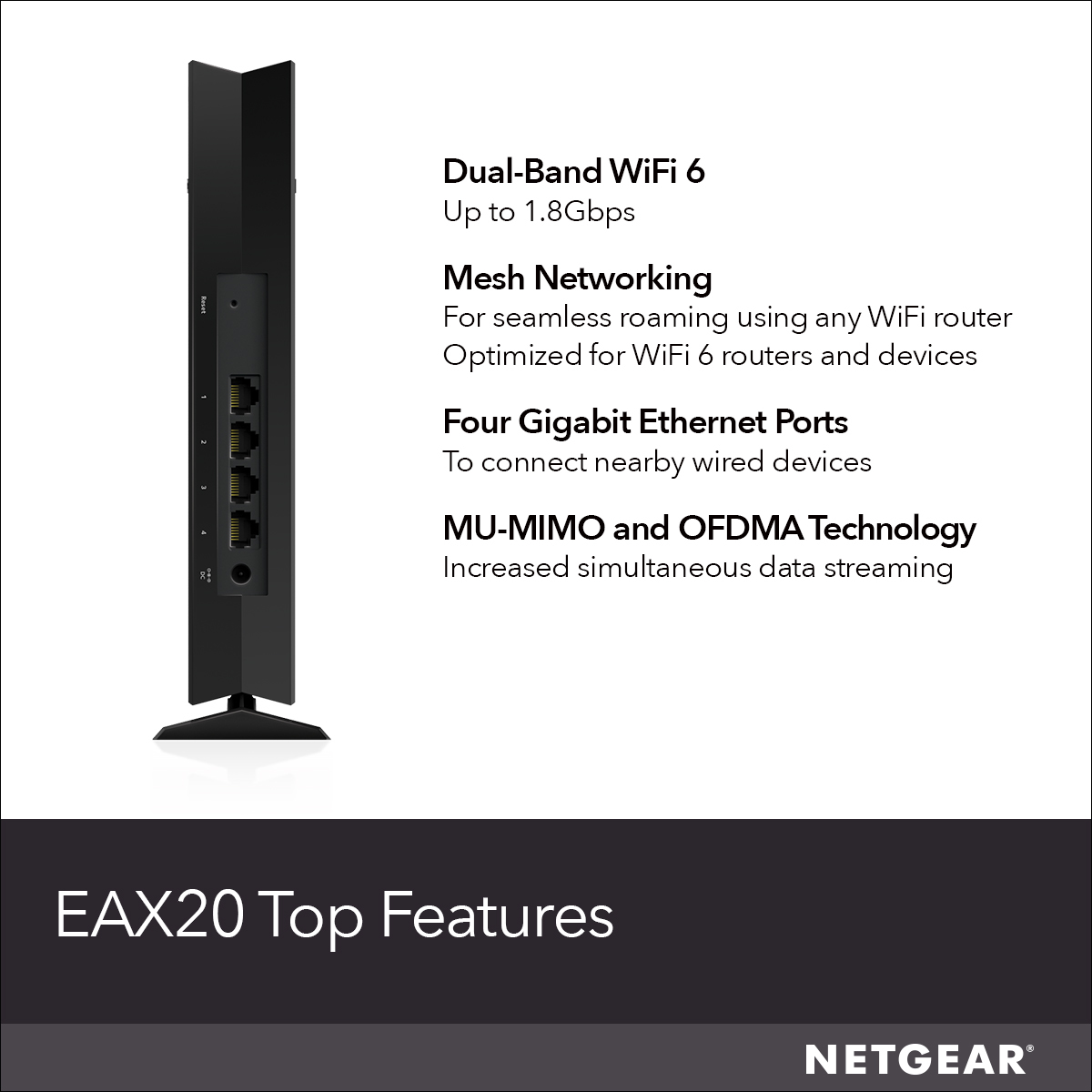

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Reset button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 241.7 mm |
| Depth | 169.5 mm |
| Height | 63.4 mm |
| Weight | 504.5 g |

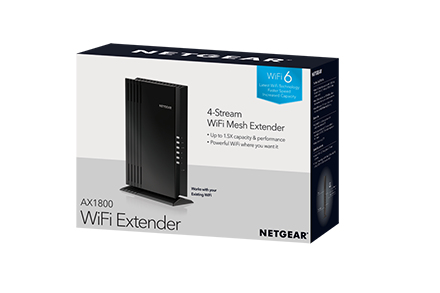

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 200 mm |
| Package depth | 288 mm |
| Package height | 110 mm |
| Package weight | 1.06 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
