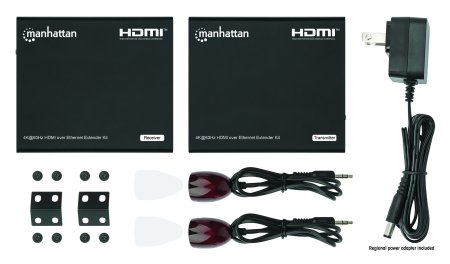

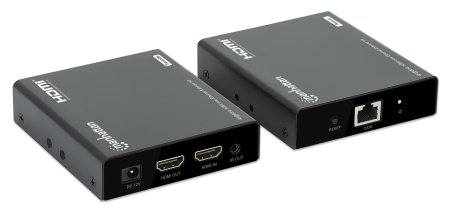

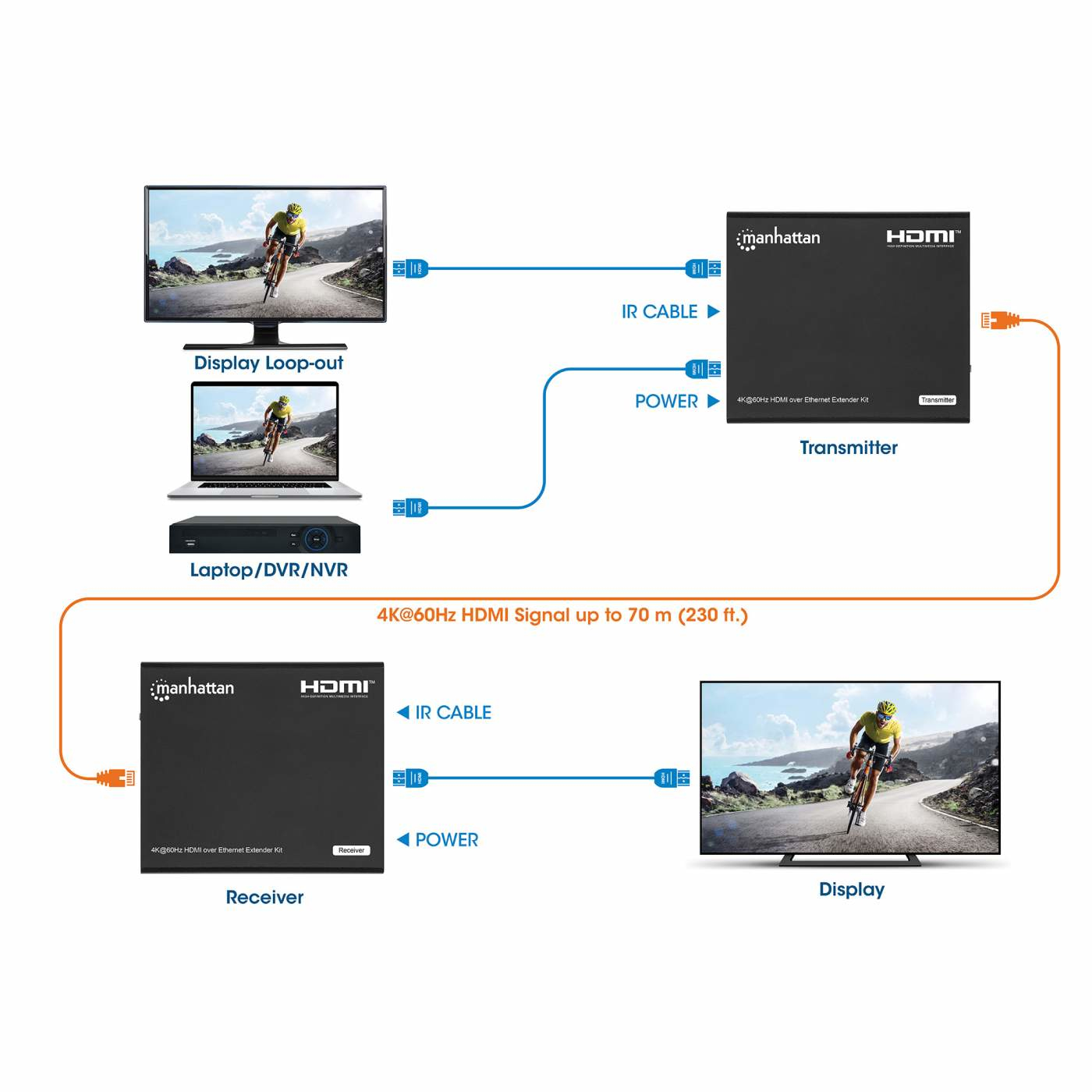

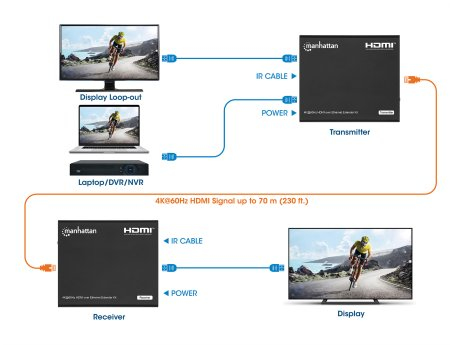

4K HDMI over Ethernet Extender Kit, Extends 4K@60Hz signal up to 70m with a single Cat6 Ethernet Cable, Transmitter and Receiver, Power over Cable (Po
Model 207980EAN 766623207980
30 specifications
- TypeNetwork transmitter & receiver
- Weight400 g
- ColourBlack
- Bandwidth0.6 GHz
- RJ-45 ports quantity (transmitter)1
- AC input voltage100 - 240 V
Overview
- Type
- Network transmitter & receiver
- Weight
- 400 g
- Colour
- Black
- Bandwidth
- 0.6 GHz
- RJ-45 ports quantity (transmitter)
- 1
- AC input voltage
- 100 - 240 V
- Brand
- Manhattan
- Category
- Network Extender
- Model
- 207980
- Part number
- 207980
- EAN / UPC
- 766623207980
- Also known as
- Manhattan 4K HDMI over Ethernet Extender Kit, Extends 4K@60Hz signal up to 70m with a single Cat6 Ethernet Cable, Transmitter and Receiver, Power over Cable (Po
Specifications
30 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 70 m |
| Data transfer rate | 18000 Mbit/s |
| Cable types supported | Cat6 |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Bandwidth | 0.6 GHz |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Connector contacts plating | Gold |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| Certification | CE FCC RoHS REACH UKCA |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (transmitter) (max) | 1.3 W |
| Power consumption (receiver) (max) | 1.6 W |
| Output voltage | 12 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Depth | 100 mm |
| Height | 23 mm |
| Weight | 400 g |
| Cable length | 1.2 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | IR, Power |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 750 g |
