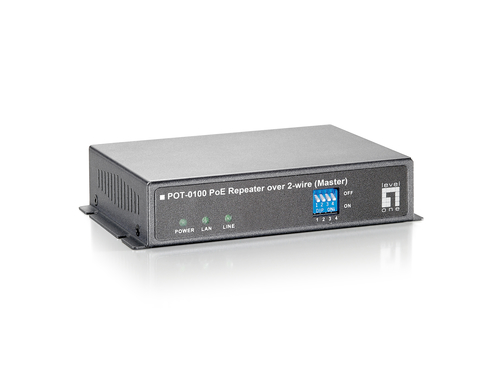

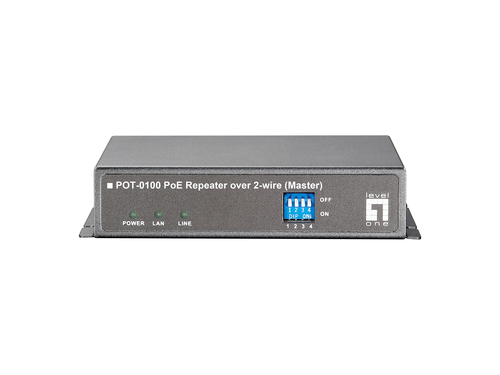

PoE over 2-wire Transmitter
Model POT-0100EAN 4015867153574
26 specifications
- TypeNetwork repeater
- ColourBlack
- Cabling technology10/100Base-T(X)
- Ethernet LAN (RJ-45) ports1
- Power consumption (max)15 W
- Operating temperature (T-T)0 - 50 °C
Overview
- Type
- Network repeater
- Colour
- Black
- Cabling technology
- 10/100Base-T(X)
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (max)
- 15 W
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- LevelOne
- Category
- Network Extender
- Model
- POT-0100
- Part number
- POT-0100
- EAN / UPC
- 4015867153574
- Also known as
- LevelOne PoE over 2-wire Transmitter
Specifications
26 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |

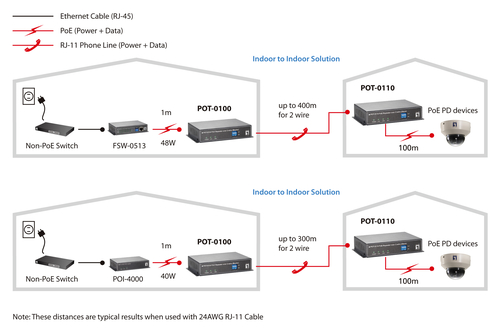

| Maximum transfer distance | 400 m |
| Data transfer rate | 60 Mbit/s |
| Auto MDIX IEEE | Yes |
| Duplex system | Full, Half |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|

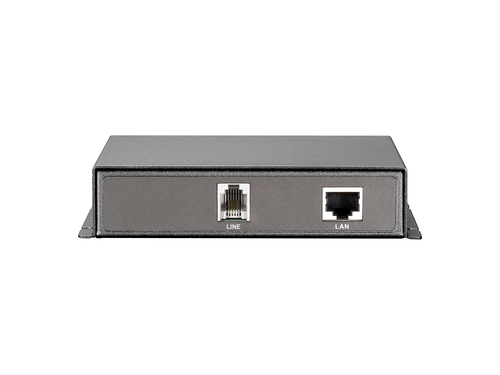

| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Country of origin | Taiwan |
| Certification | FCC Rules Part 15 CE |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 15 W |
| Output voltage | 57 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 148 mm |
| Package depth | 235 mm |
| Package height | 80 mm |
| Package weight | 540 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
