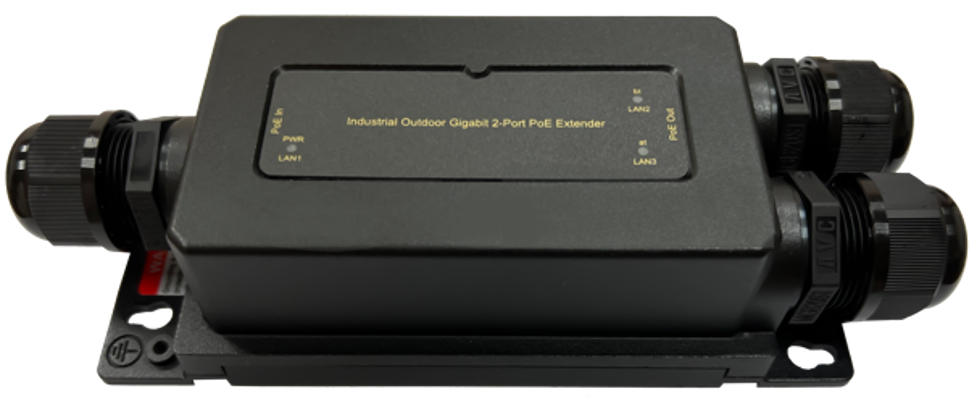

Industrial IP67 PoE BT extender/repeater
Model POR-1322EAN 4015867231142
34 specifications
- TypeNetwork repeater
- Weight380 g
- ColourBlack
- Power over Ethernet (PoE) ports quantity3
- Power consumption (typical)5 W
- Operating temperature (T-T)-40 - 75 °C
Overview
- Type
- Network repeater
- Weight
- 380 g
- Colour
- Black
- Power over Ethernet (PoE) ports quantity
- 3
- Power consumption (typical)
- 5 W
- Operating temperature (T-T)
- -40 - 75 °C
- Brand
- LevelOne
- Category
- Network Extender
- Model
- POR-1322
- Part number
- POR-1322
- EAN / UPC
- 4015867231142
- Also known as
- LevelOne Industrial IP67 PoE BT extender/repeater
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| International Protection (IP) code | IP67 |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) ports quantity | 3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Wall |
| LED indicators | Activity, Power |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Output voltage | 36 - 57 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | 0 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125.8 mm |
| Depth | 73.5 mm |
| Height | 44.3 mm |
| Weight | 380 g |
| Receiver width | 21.1 cm |
| Receiver depth | 16.2 cm |
| Receiver height | 6.4 cm |
| Receiver weight | 630 g |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 15 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 160 cm |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 7 kg |
| Products per master (outer) case | 12 pc(s) |
