Gigabit PoE Repeater, Cascadable
Model POR-0120EAN 4015867174920
27 specifications
- TypeNetwork repeater
- Weight400 g
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports2
- Power consumption (max)2.5 W
Overview
- Type
- Network repeater
- Weight
- 400 g
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 2
- Power consumption (max)
- 2.5 W
- Brand
- LevelOne
- Category
- Network Extender
- Model
- POR-0120
- Part number
- POR-0120
- EAN / UPC
- 4015867174920
- Also known as
- LevelOne Gigabit PoE Repeater, Cascadable
Specifications
27 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |

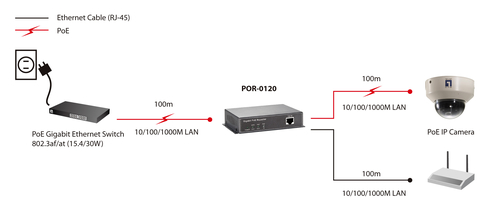

| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Duplex system | Full, Half |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3af, IEEE 802.3x |
Ports & interfaces
| Specification | Value |
|---|---|

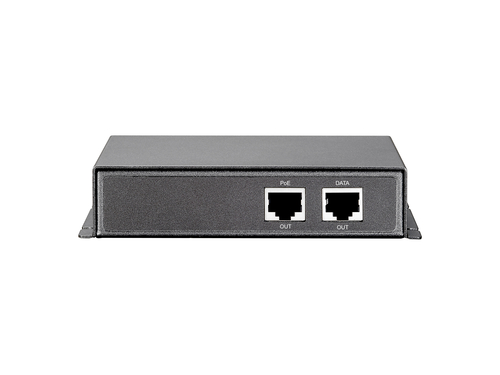

| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

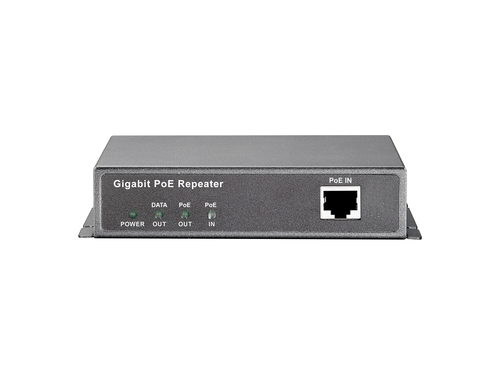

| LED indicators | PoE, Power |
| Country of origin | Taiwan |
| Certification | FCC Rules Part 15, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 400 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 148 mm |
| Package depth | 235 mm |
| Package height | 80 mm |
| Package weight | 530 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
