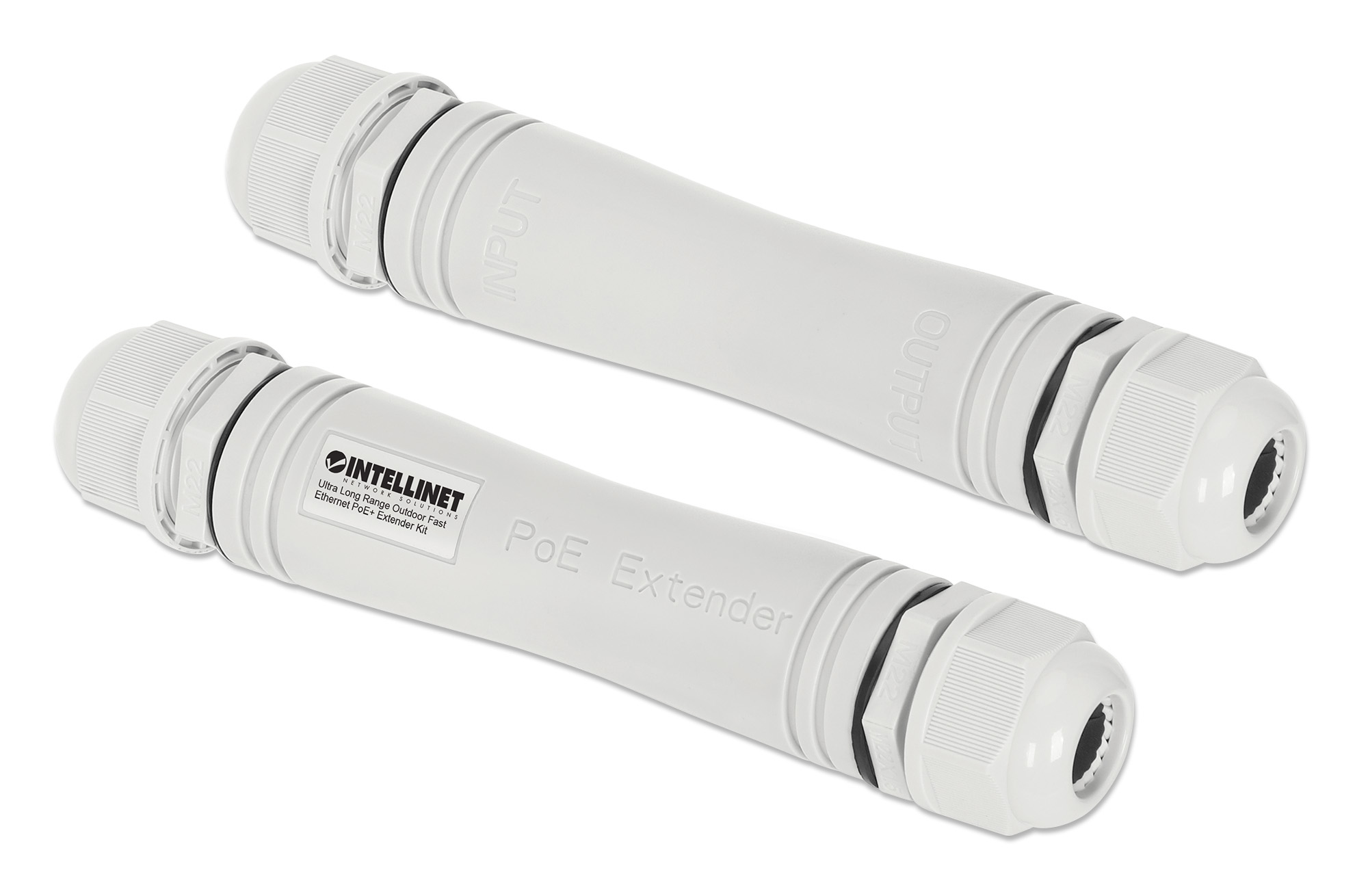

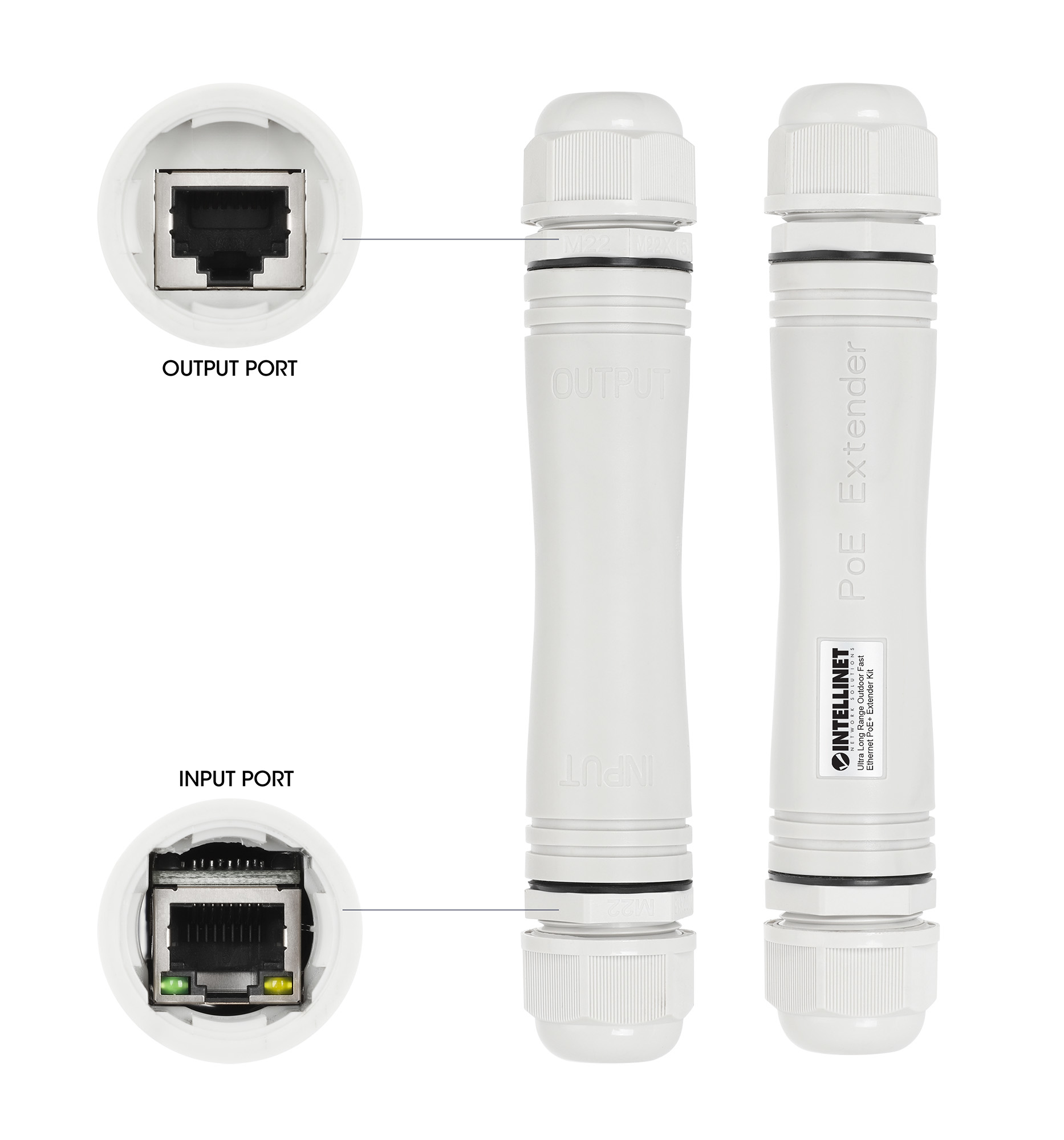

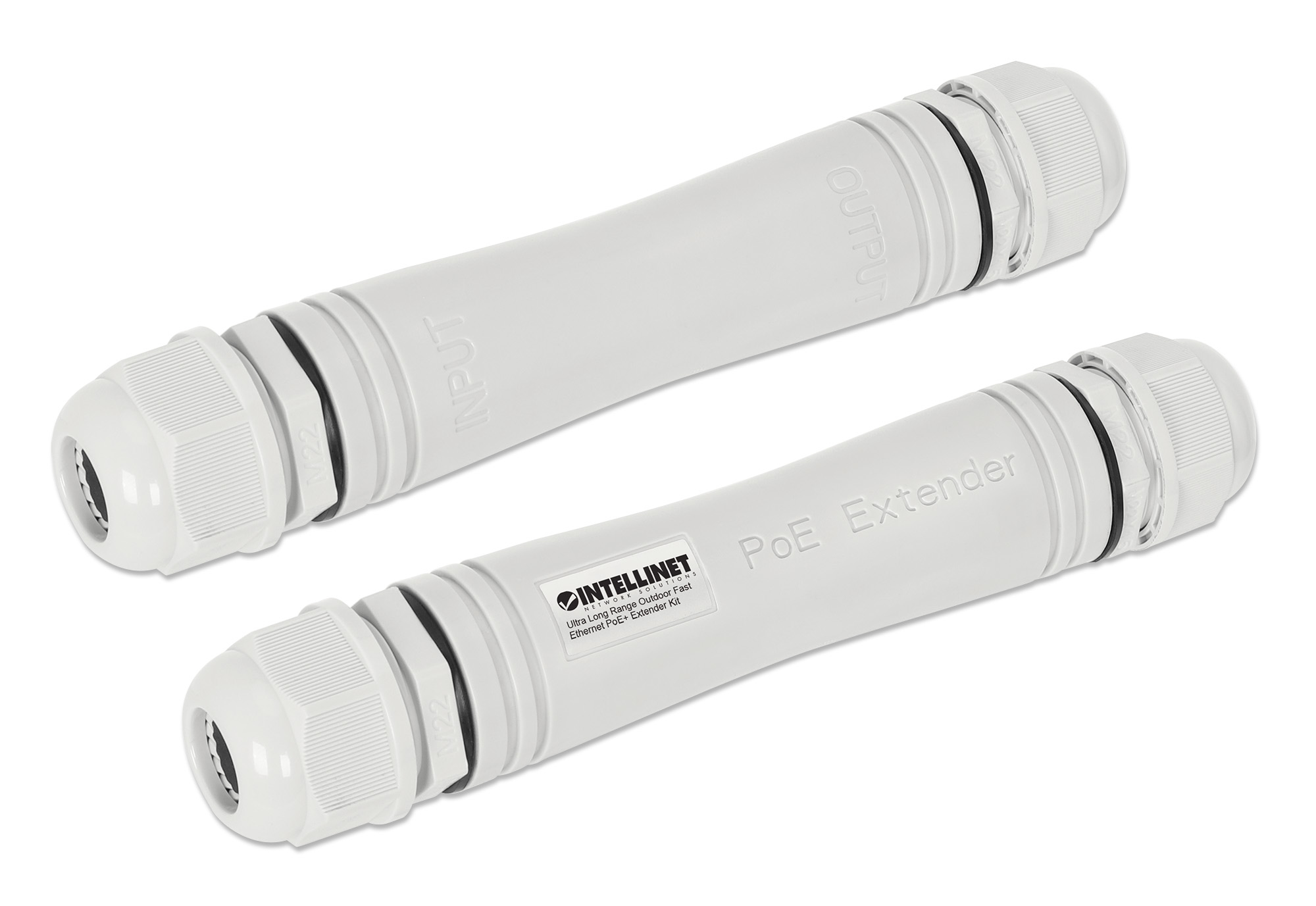

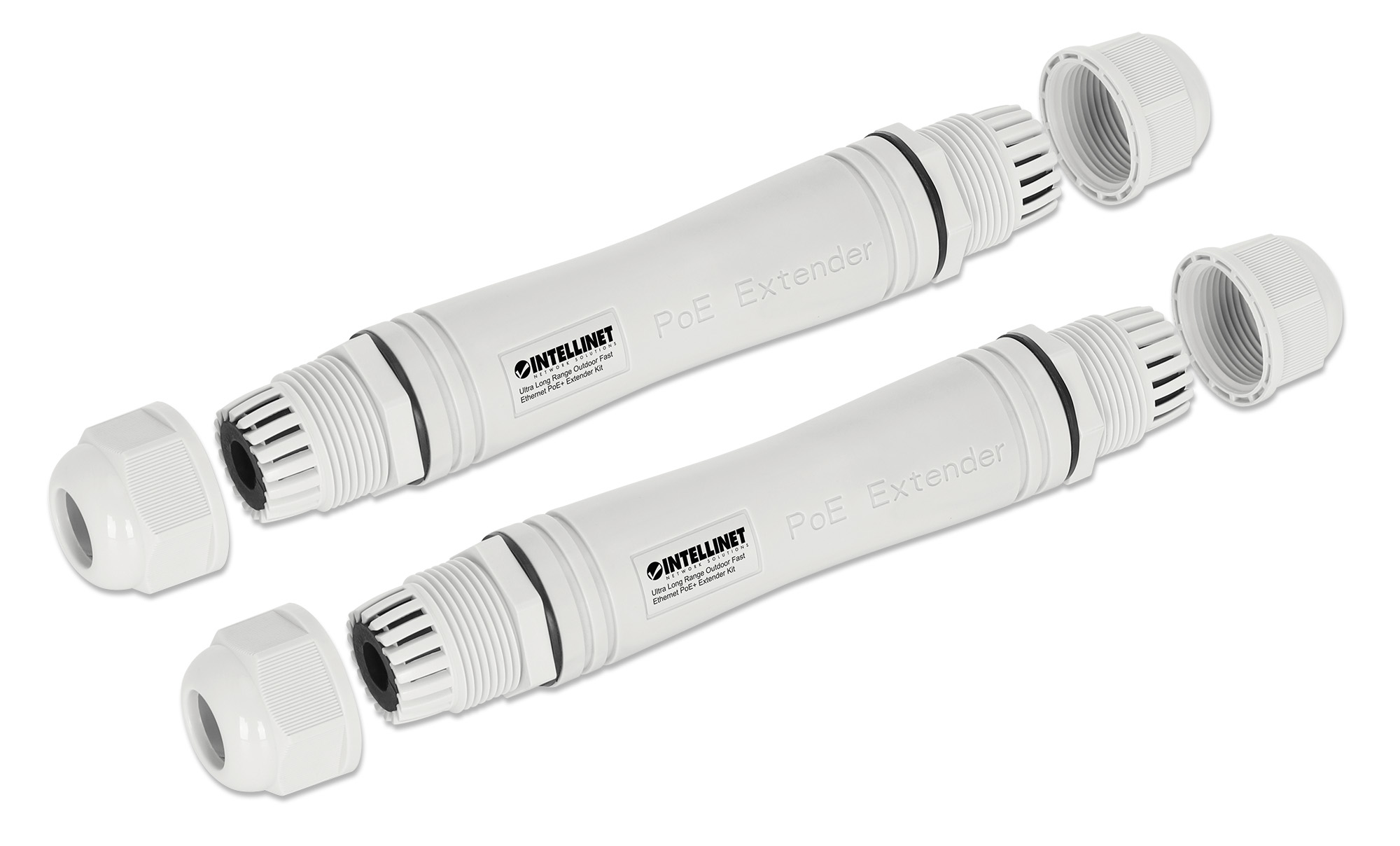

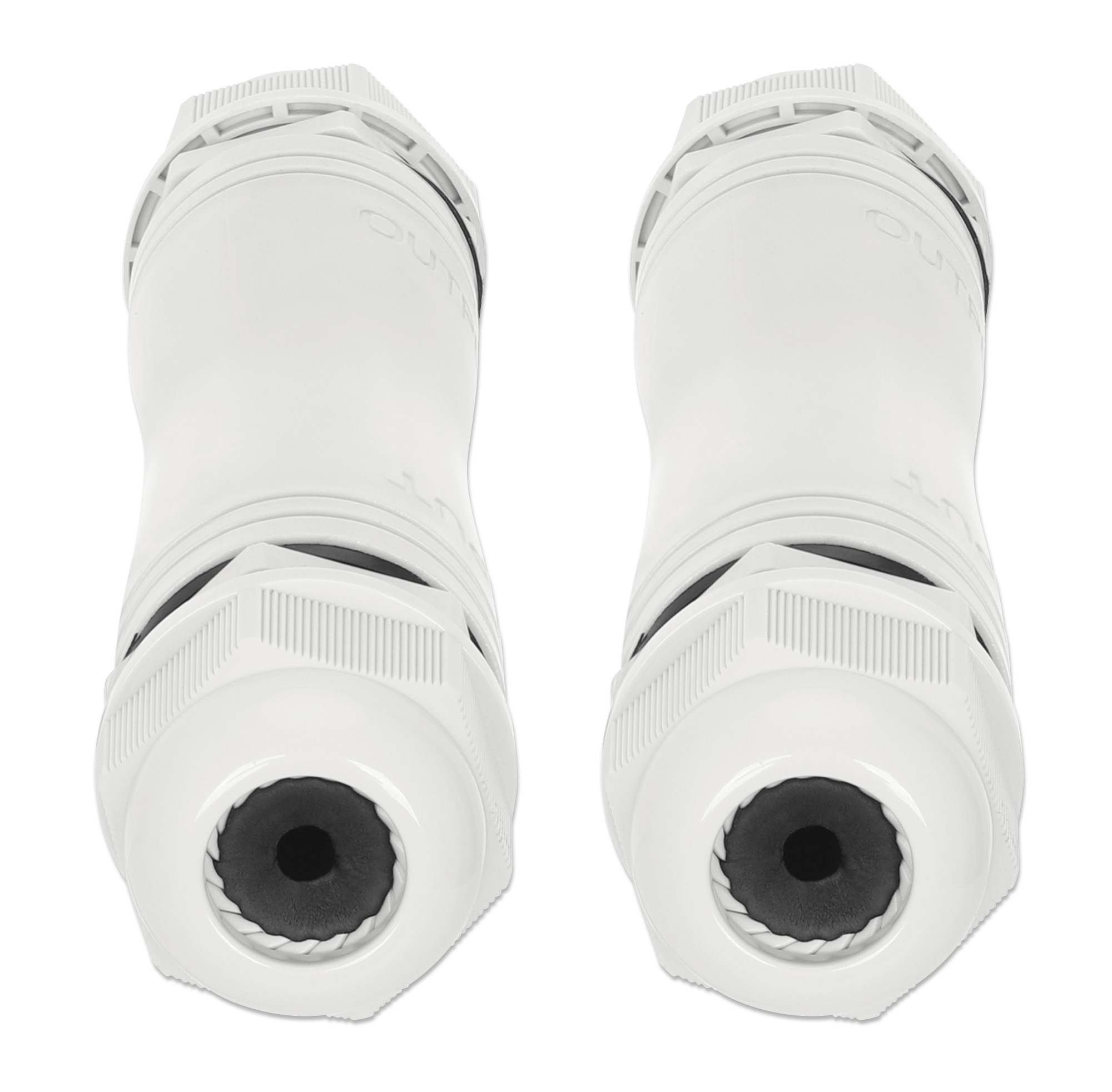

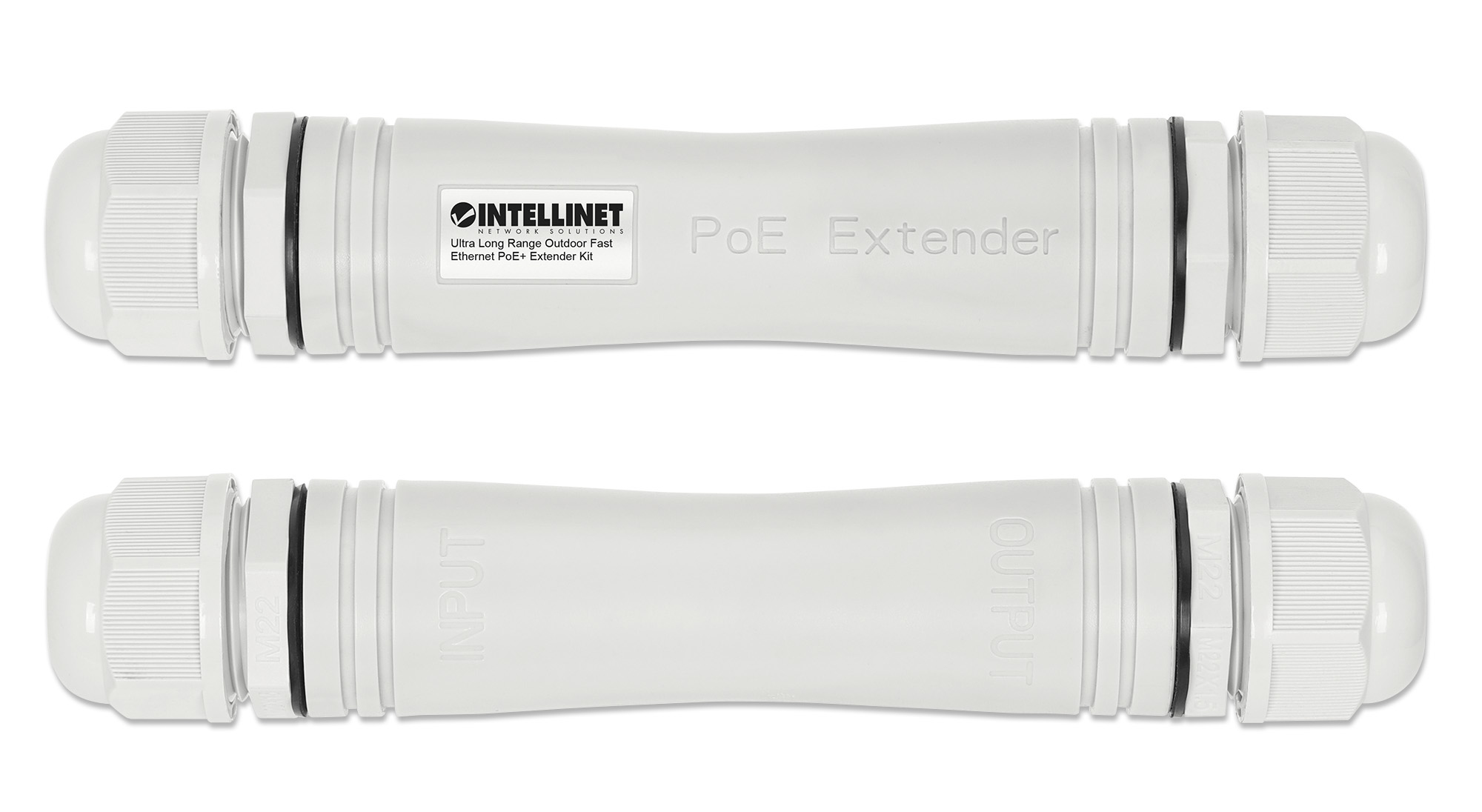

Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit Extends PoE up to 1000 m (3280 ft.), One PD Port up to
95 W, IEEE 802.3bt (4PPoE) Compatible
Model 561952EAN 766623561952
25 specifications
- Weight155 g
- ColourWhite
- Ethernet LAN data rates10,100 Mbit/s
- Cabling technology10/100
- RJ-45 input ports1
- Power consumption (max)0.7 W
Overview
- Weight
- 155 g
- Colour
- White
- Ethernet LAN data rates
- 10,100 Mbit/s
- Cabling technology
- 10/100
- RJ-45 input ports
- 1
- Power consumption (max)
- 0.7 W
- Brand
- Intellinet
- Category
- Network Extender
- Model
- 561952
- Part number
- 561952
- EAN / UPC
- 766623561952
- Also known as
- Intellinet Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit Extends PoE up to 1000 m (3280 ft.), One PD Port up to 95 W, IEEE 802.3bt (4PPoE) Compatible
Specifications
25 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Duplex system | Full |
| International Protection (IP) code | IP67 |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100 |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
Ports & interfaces
| Specification | Value |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 0.7 W |
| Power consumption (typical) | 0.4 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 29 mm |
| Depth | 157 mm |
| Height | 29 mm |
| Weight | 155 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UL |
