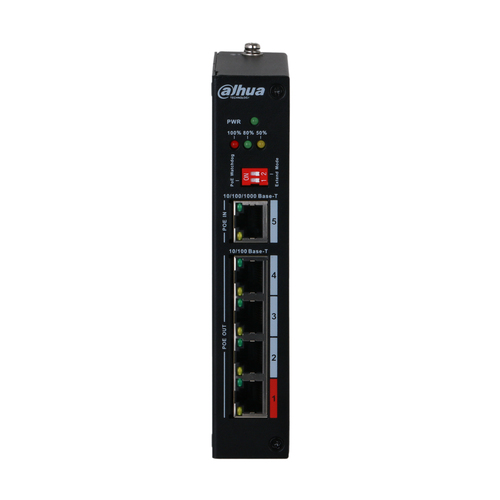

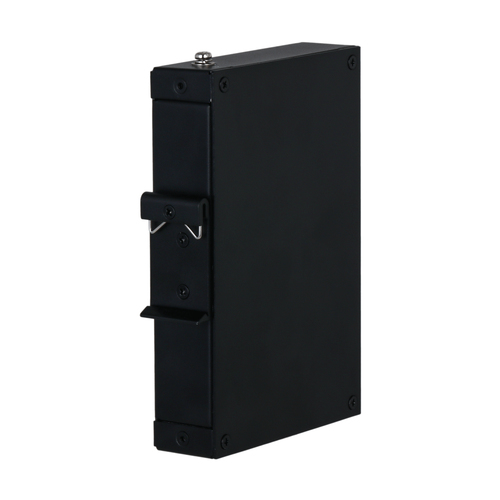

PFT1500 Network transmitter Black 10, 100, 1000 Mbit/s
Model PFT1500Part no. DH-PFT1500
38 specifications
- TypeNetwork transmitter
- Weight470 g
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
- Host interfaceRJ-45
- Power consumption (typical)5 W
Overview
- Type
- Network transmitter
- Weight
- 470 g
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- Host interface
- RJ-45
- Power consumption (typical)
- 5 W
- Brand
- Dahua Technology
- Category
- Network Extender
- Model
- PFT1500
- Part number
- DH-PFT1500
- Also known as
- Dahua Technology PFT1500 Network transmitter Black 10, 100, 1000 Mbit/s
Specifications
38 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter |
| Maximum transfer distance | 250 m |
| Data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| MTBF (transmitter) | 66.37 h |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power over Ethernet (PoE) ports quantity | 4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Mounting type | Desk |
| LED indicators | PoE |
| Quantity per pack | 1 pc(s) |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5 W |
| Power consumption (transmitter) (max) | 90 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (transmitter) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 100 mm |
| Height | 30 mm |
| Weight | 470 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 265 mm |
| Package depth | 238 mm |
| Package height | 76 mm |
| Package weight | 650 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
