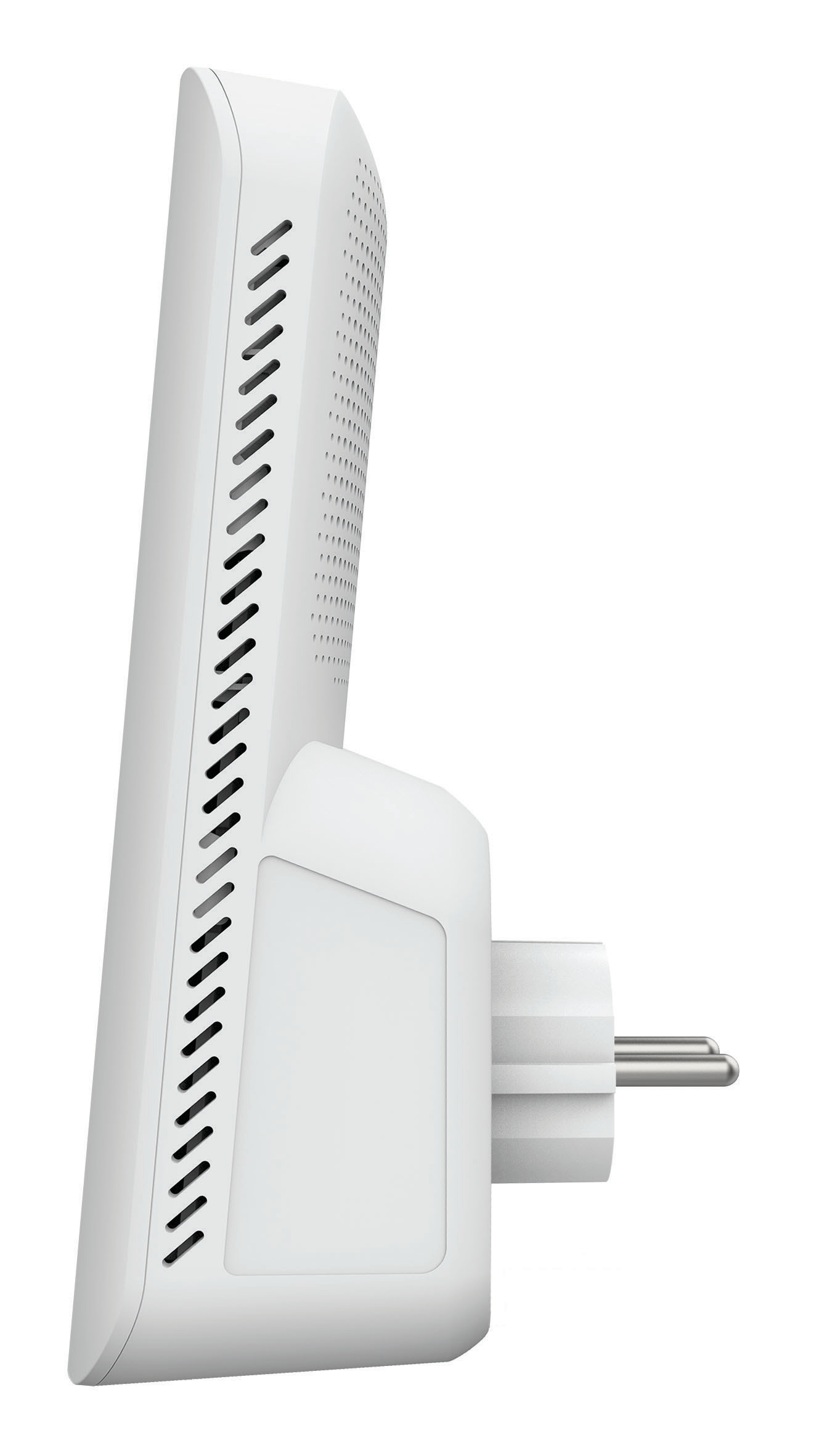

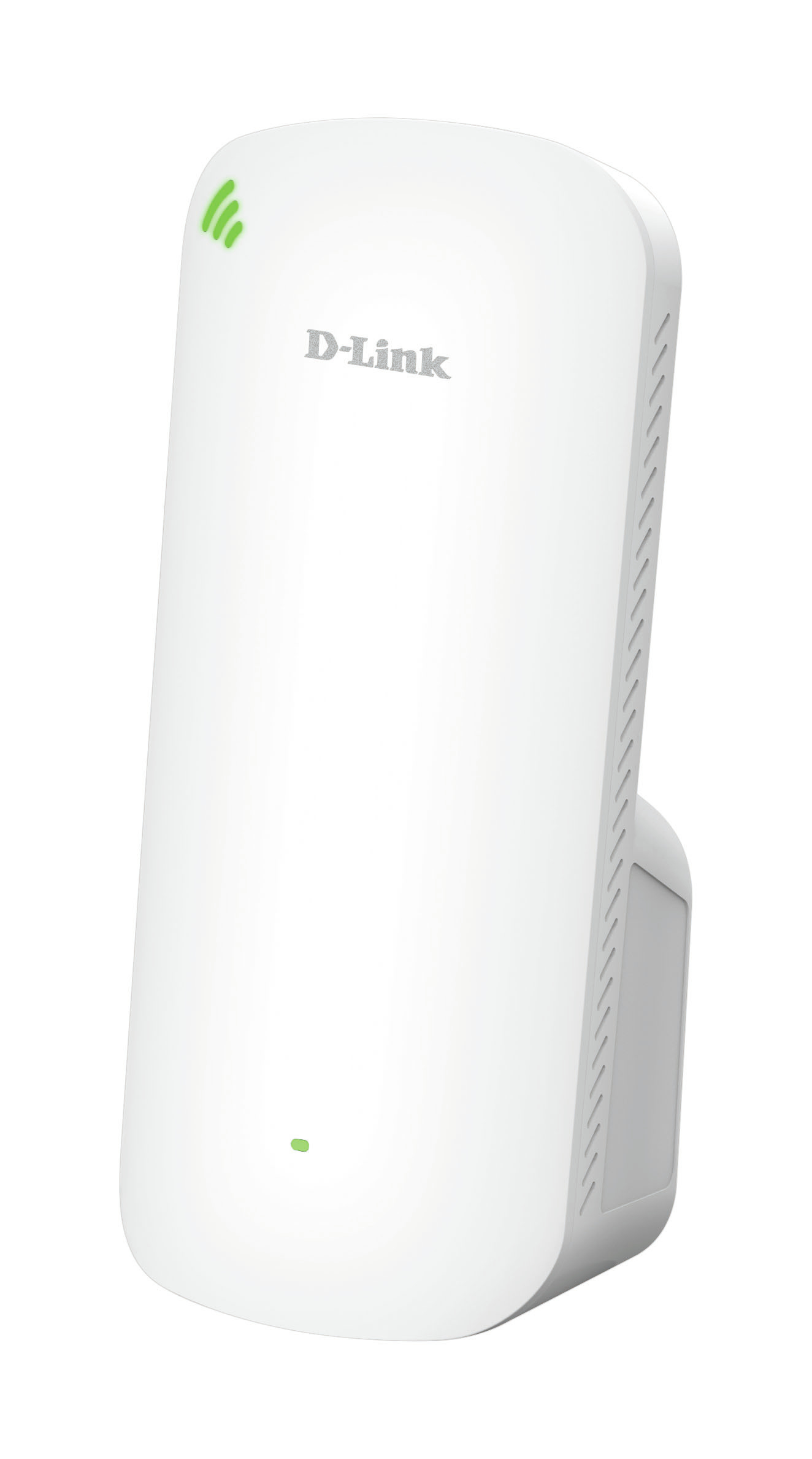

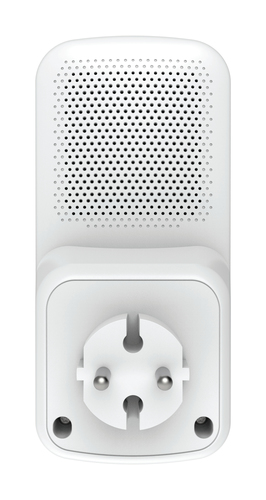

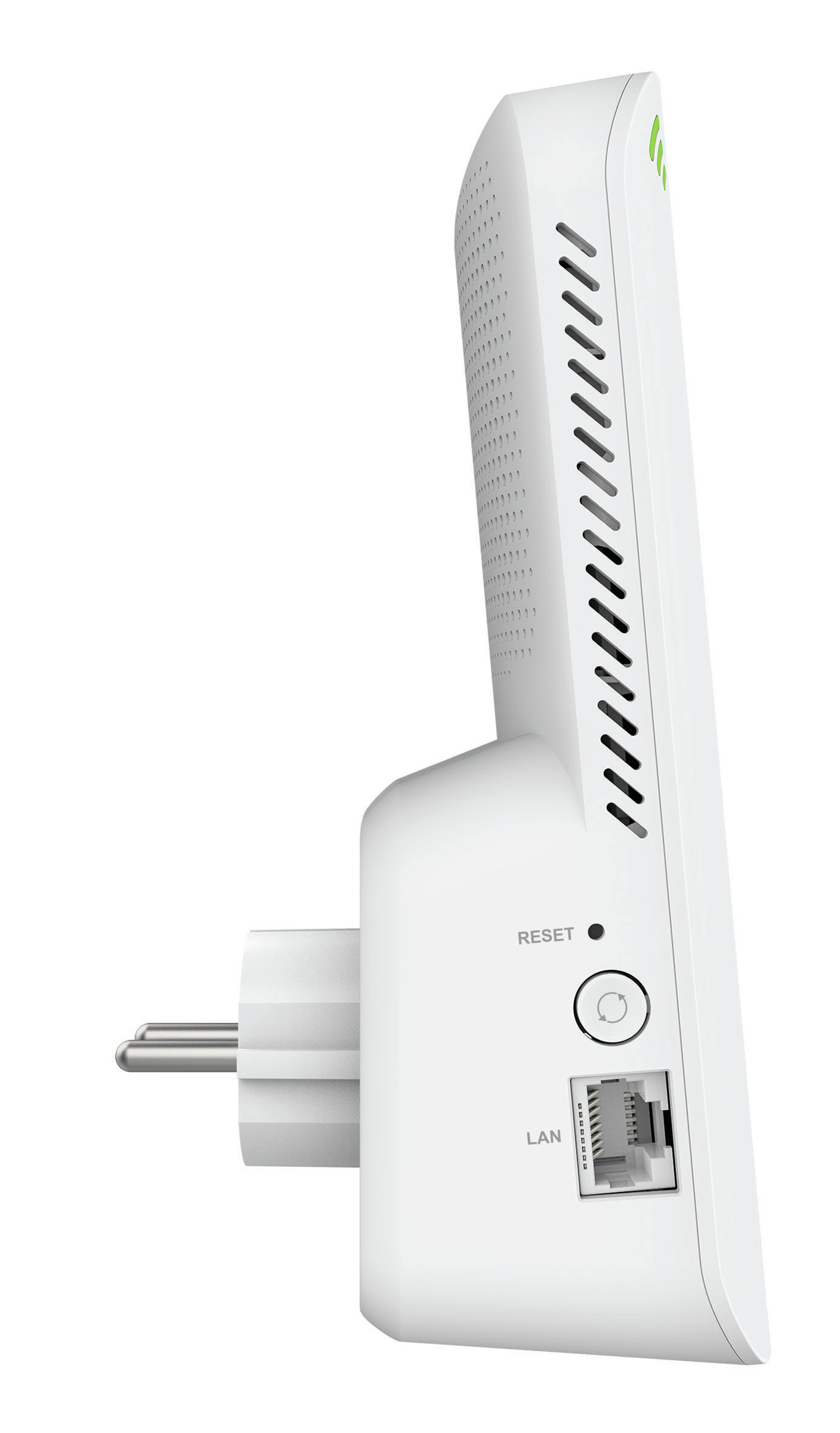

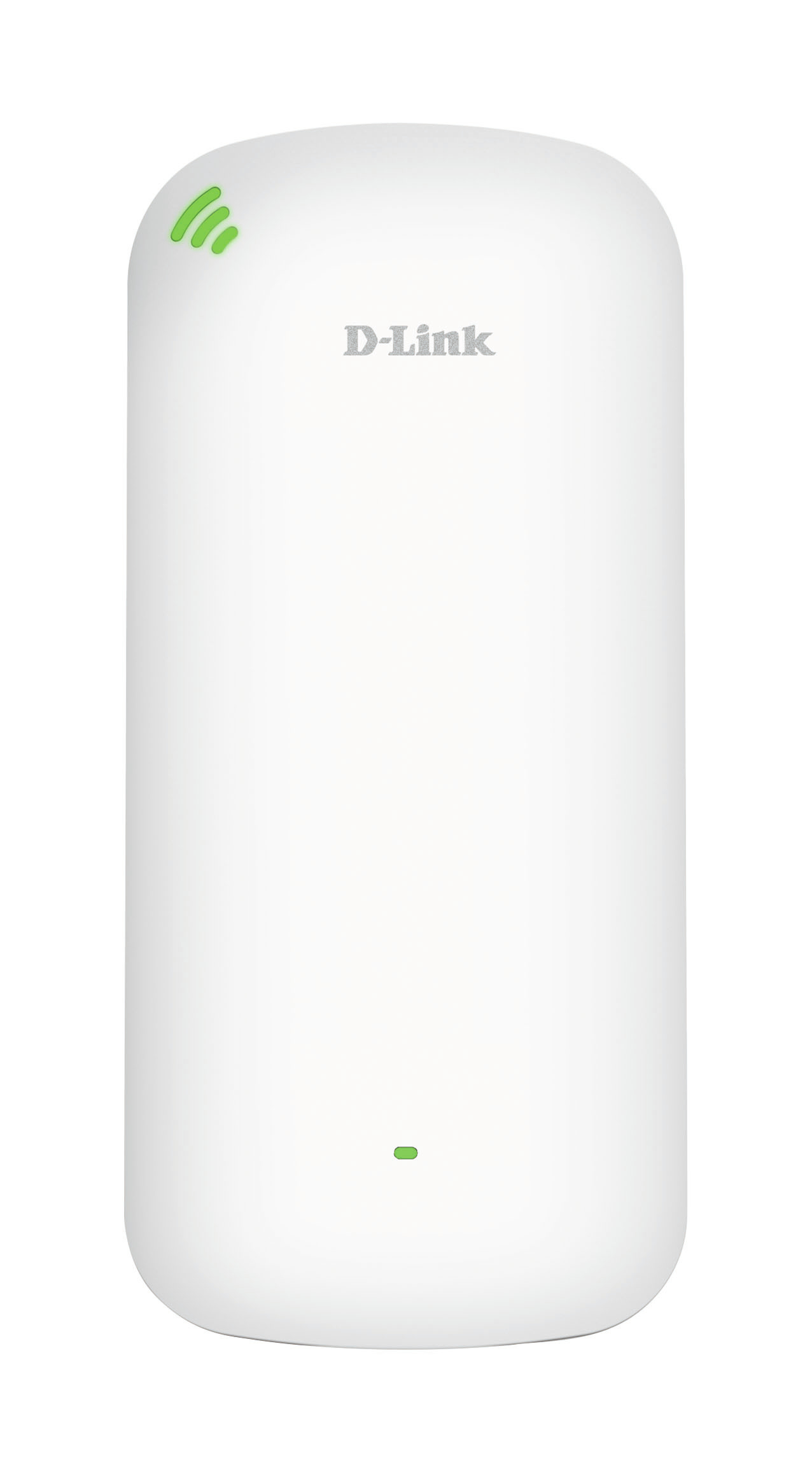

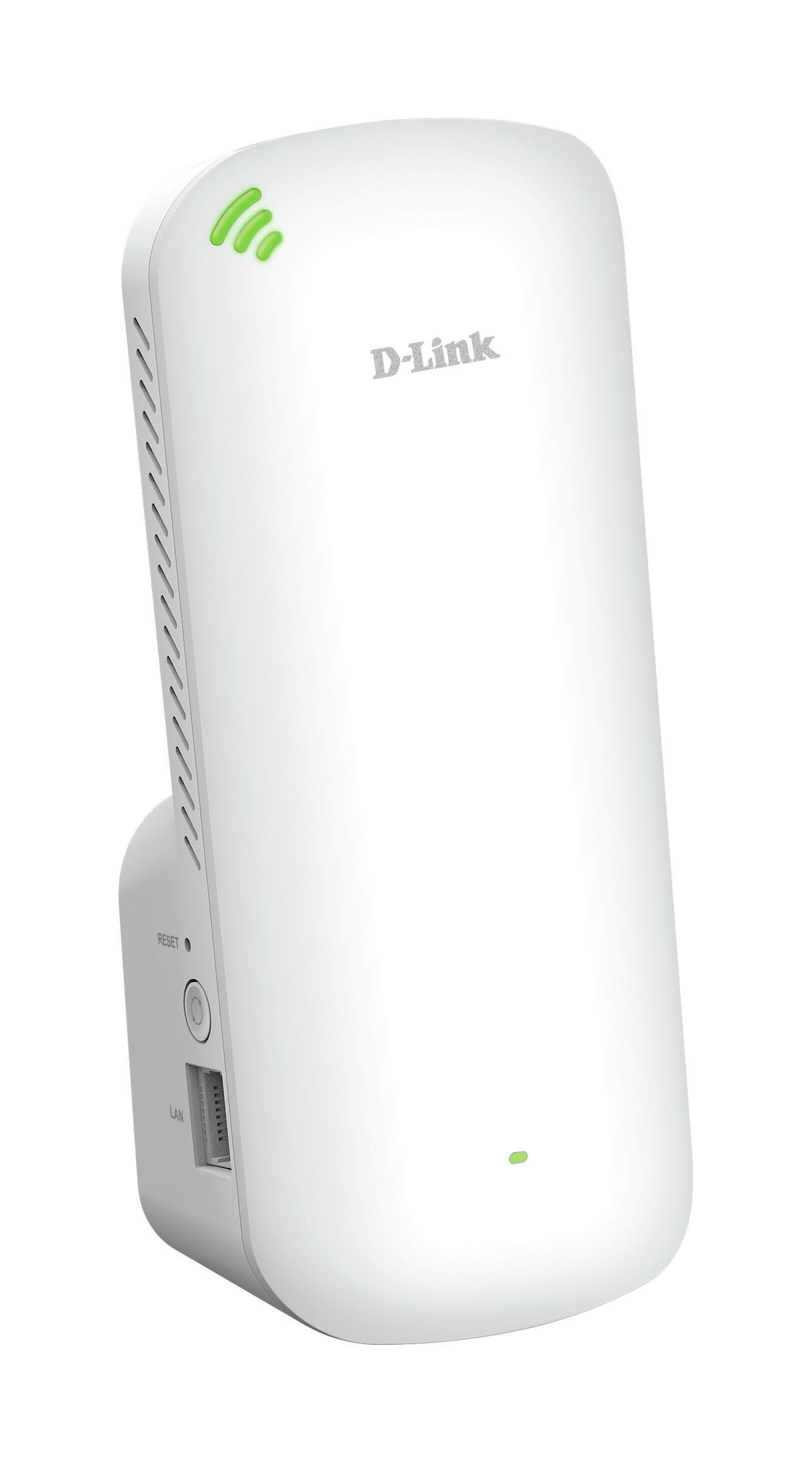

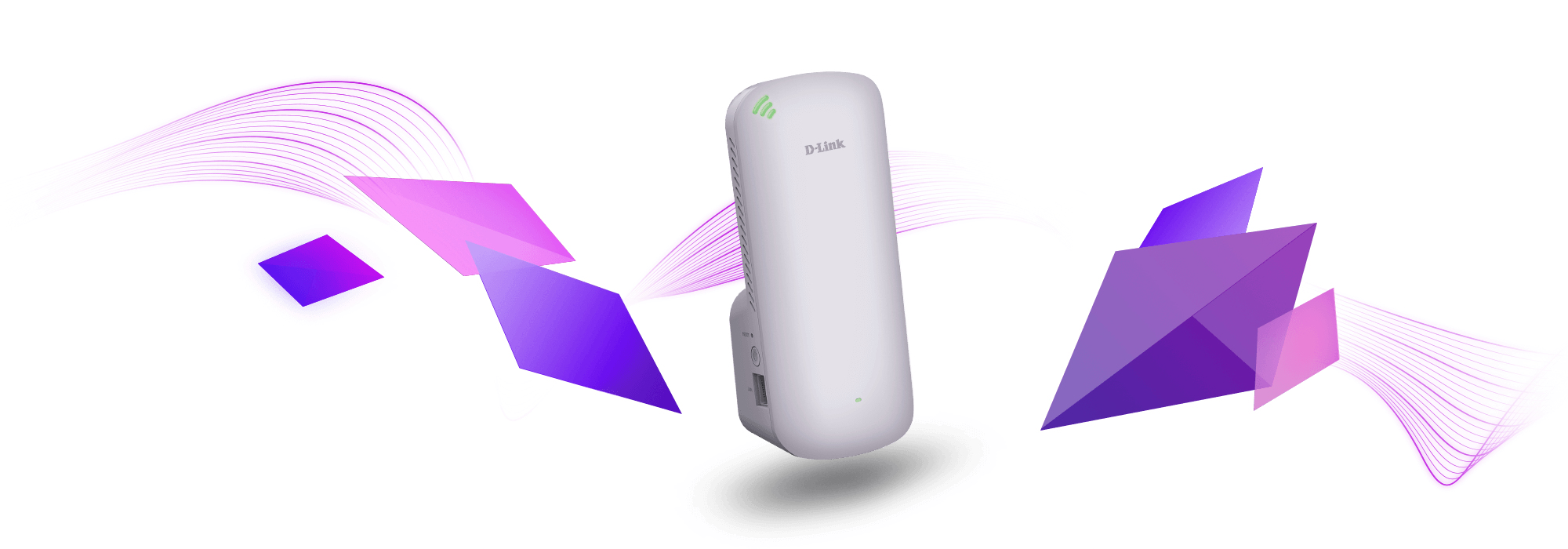

DAP‑X1860 AX1800 Mesh Wi‑Fi 6 Range Extender DAP‑X1860
Model DAP‑X1860Part no. DAP-X1860EAN 790069458149
31 specifications
- TypeNetwork repeater
- Weight293 g
- ColourWhite
- Antennas quantity2
- Wi-FiYes
- Ethernet LAN (RJ-45) ports1
Overview
- Type
- Network repeater
- Weight
- 293 g
- Colour
- White
- Antennas quantity
- 2
- Wi-Fi
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- D-Link
- Category
- Network Extender
- Model
- DAP‑X1860
- Part number
- DAP-X1860
- EAN / UPC
- 790069458149
- Also known as
- D-Link DAP‑X1860 AX1800 Mesh Wi‑Fi 6 Range Extender DAP‑X1860
Specifications
31 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 185 m |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| WPS push button | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna type | Internal |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Modulation | OFDM, QAM |
| Security algorithms | WPA2, WPA3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Mounting type | Wall |
| LED indicators | Yes |
| Reset button | Yes |
| Certification | FCC, IC, CE |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.7 W |
| Included power plug types | EU |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (transmitter) | 10 - 90 °C |
| Storage temperature (transmitter) | 5 - 95 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 75 mm |
| Height | 165 mm |
| Weight | 293 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
