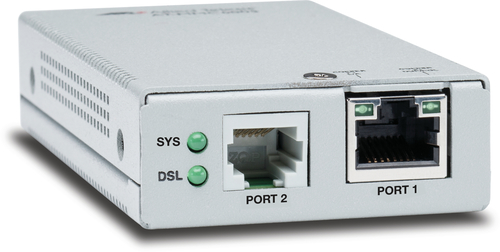

AT-MMC6005-60 Network transmitter & receiver Silver 10, 100, 1000 Mbit/s
Model AT-MMC6005-60Part no. 990-004746-60EAN 767035206189
22 specifications
- TypeNetwork transmitter & receiver
- Weight200 g
- ColourSilver
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports1
- AC input voltage120-240 V
Overview
- Type
- Network transmitter & receiver
- Weight
- 200 g
- Colour
- Silver
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 120-240 V
- Brand
- Allied Telesis
- Category
- Network Extender
- Model
- AT-MMC6005-60
- Part number
- 990-004746-60
- EAN / UPC
- 767035206189
- Also known as
- Allied Telesis AT-MMC6005-60 Network transmitter & receiver Silver 10, 100, 1000 Mbit/s
Specifications
22 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Type | Network transmitter & receiver |
| Maximum transfer distance | 3000 m |
| Data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 99.1 mm |
| Height | 20.3 mm |
| Weight | 200 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
