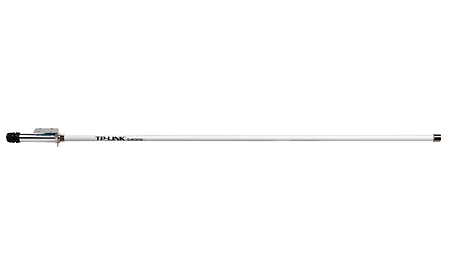

2.4GHz 15dBi Outdoor Omni-directional Antenna
Model 2.4GHz 15dBi Outdoor Omni-directional AntennaPart no. TL-ANT2415DEAN 6935364052201
15 specifications
- Antenna gain level (max)15 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)40 - 65 °C
- Width0 mm
Overview
- Antenna gain level (max)
- 15 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- 40 - 65 °C
- Width
- 0 mm
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- 2.4GHz 15dBi Outdoor Omni-directional Antenna
- Part number
- TL-ANT2415D
- EAN / UPC
- 6935364052201, 191120006321, 631058211751, 631058270604 +10 more
- Also known as
- TP-Link 2.4GHz 15dBi Outdoor Omni-directional Antenna network antenna
Specifications
15 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 15 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 9° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | 40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 0 mm |
| Depth | 1500 mm |
| Height | 0 mm |
Other features
| Specification | Value |
|---|---|
| Network connection type | 802.11n/b/g |
