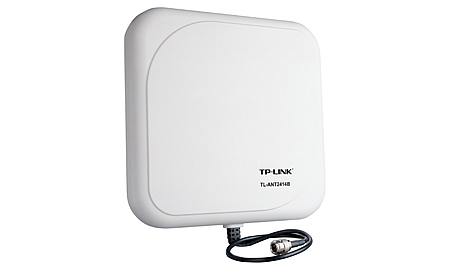

2.4GHz 14dBi Outdoor Directional Antenna
Model 2.4GHz 14dBi Outdoor Directional AntennaPart no. TL-ANT2414BEAN 5054629106860
16 specifications
- Antenna gain level (max)14 dBi
- PolarizationVertical polarization
- Operating temperature (T-T)-10 - 60 °C
- Width240 mm
Overview
- Antenna gain level (max)
- 14 dBi
- Polarization
- Vertical polarization
- Operating temperature (T-T)
- -10 - 60 °C
- Width
- 240 mm
- Brand
- TP-Link
- Category
- Network Antenna
- Model
- 2.4GHz 14dBi Outdoor Directional Antenna
- Part number
- TL-ANT2414B
- EAN / UPC
- 5054629106860, 084597305212, 115971111423, 191120016702 +11 more
- Also known as
- TP-Link 2.4GHz 14dBi Outdoor Directional Antenna network antenna
Specifications
16 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 30° |
| Vertical beam width | 30° |
Features
| Specification | Value |
|---|---|
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.92: 1 |
| Cable length | 1 m |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, ROHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 240 mm |
| Height | 40 mm |
