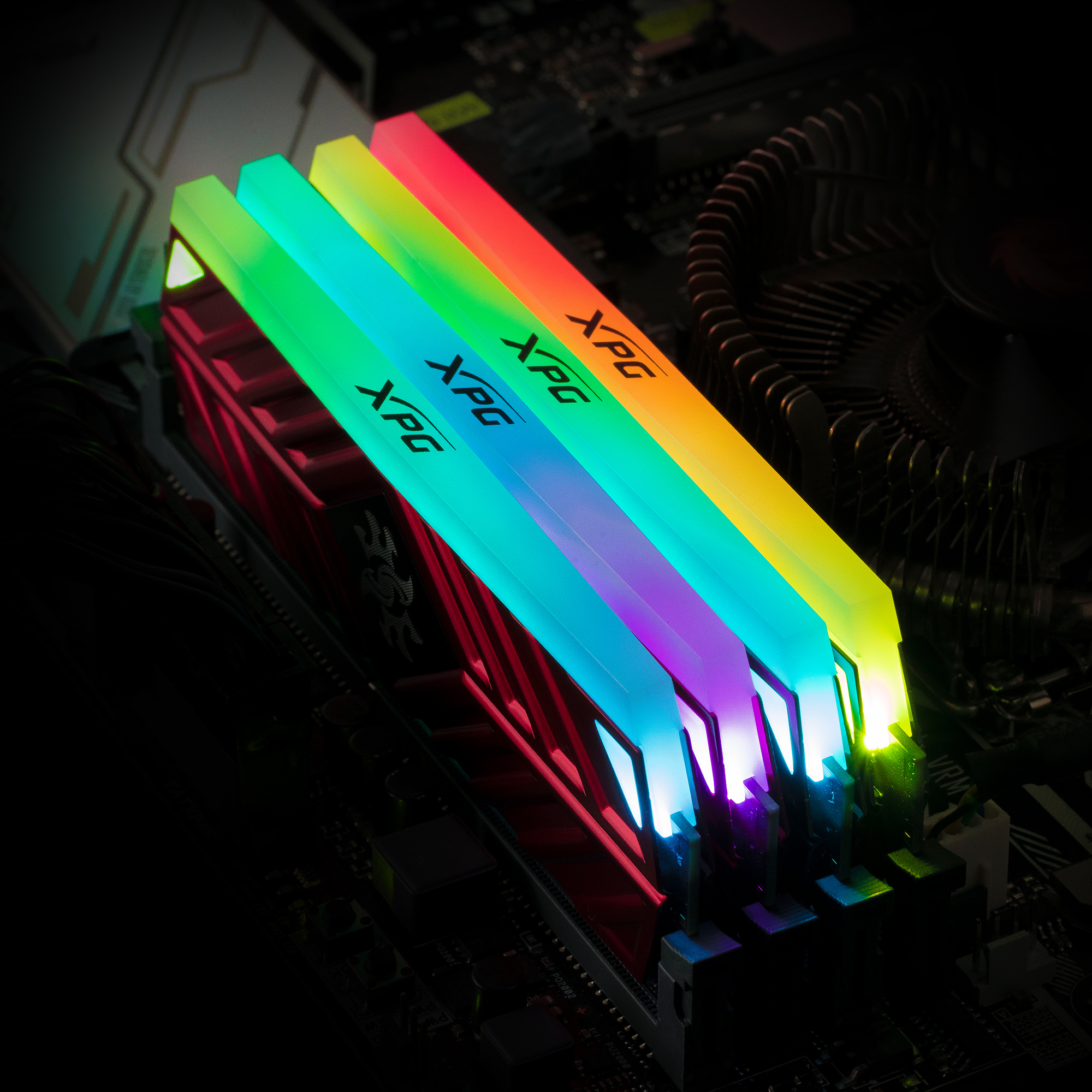

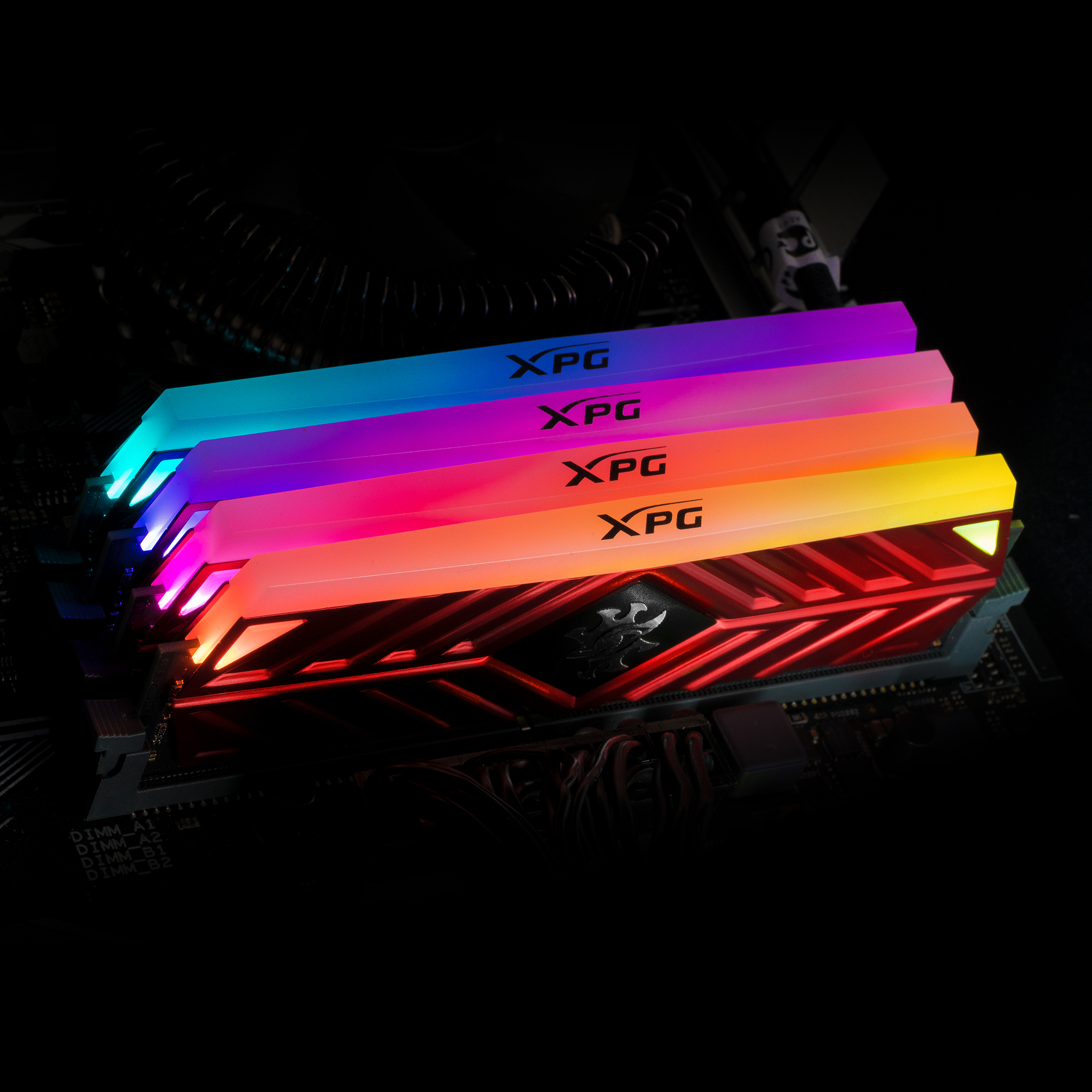

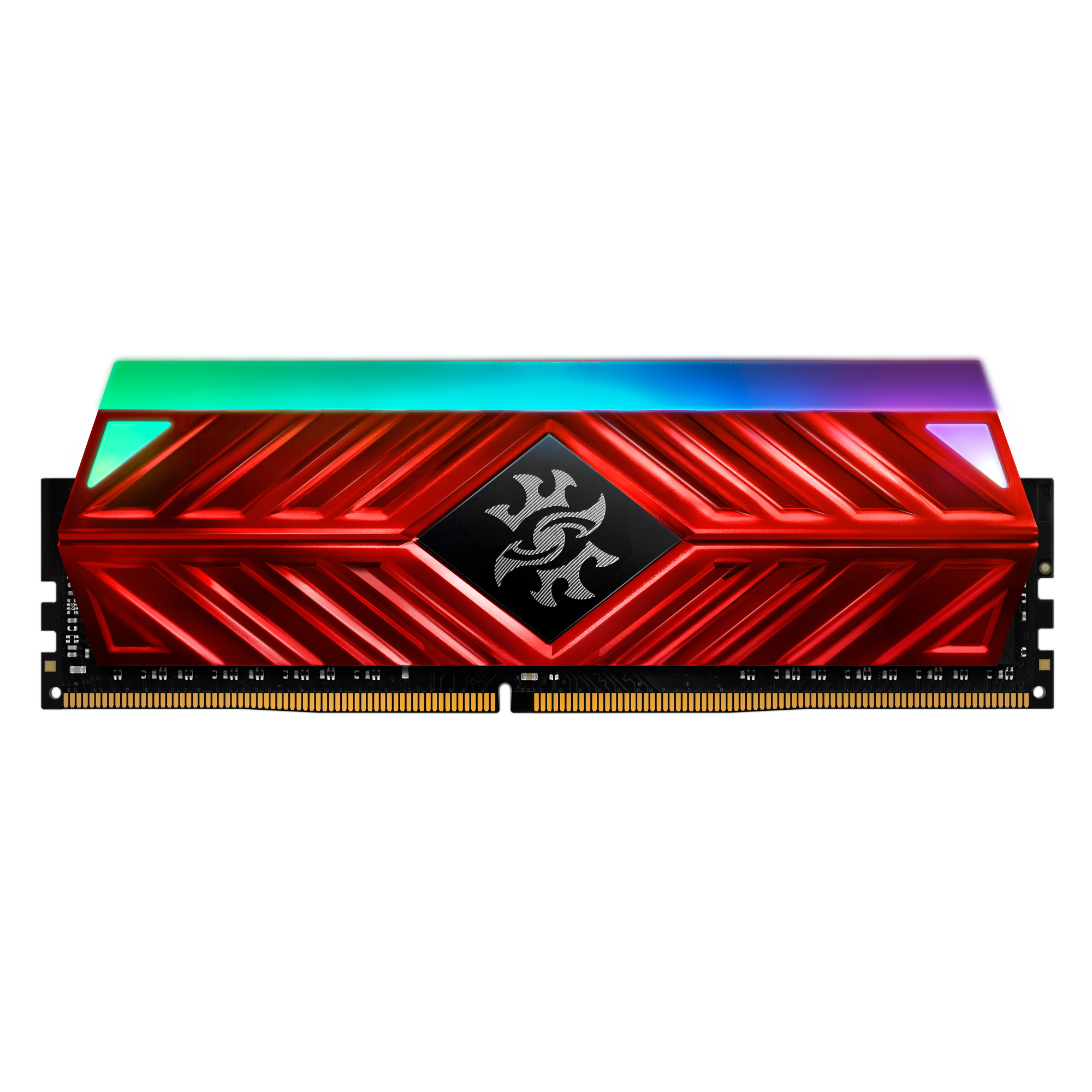

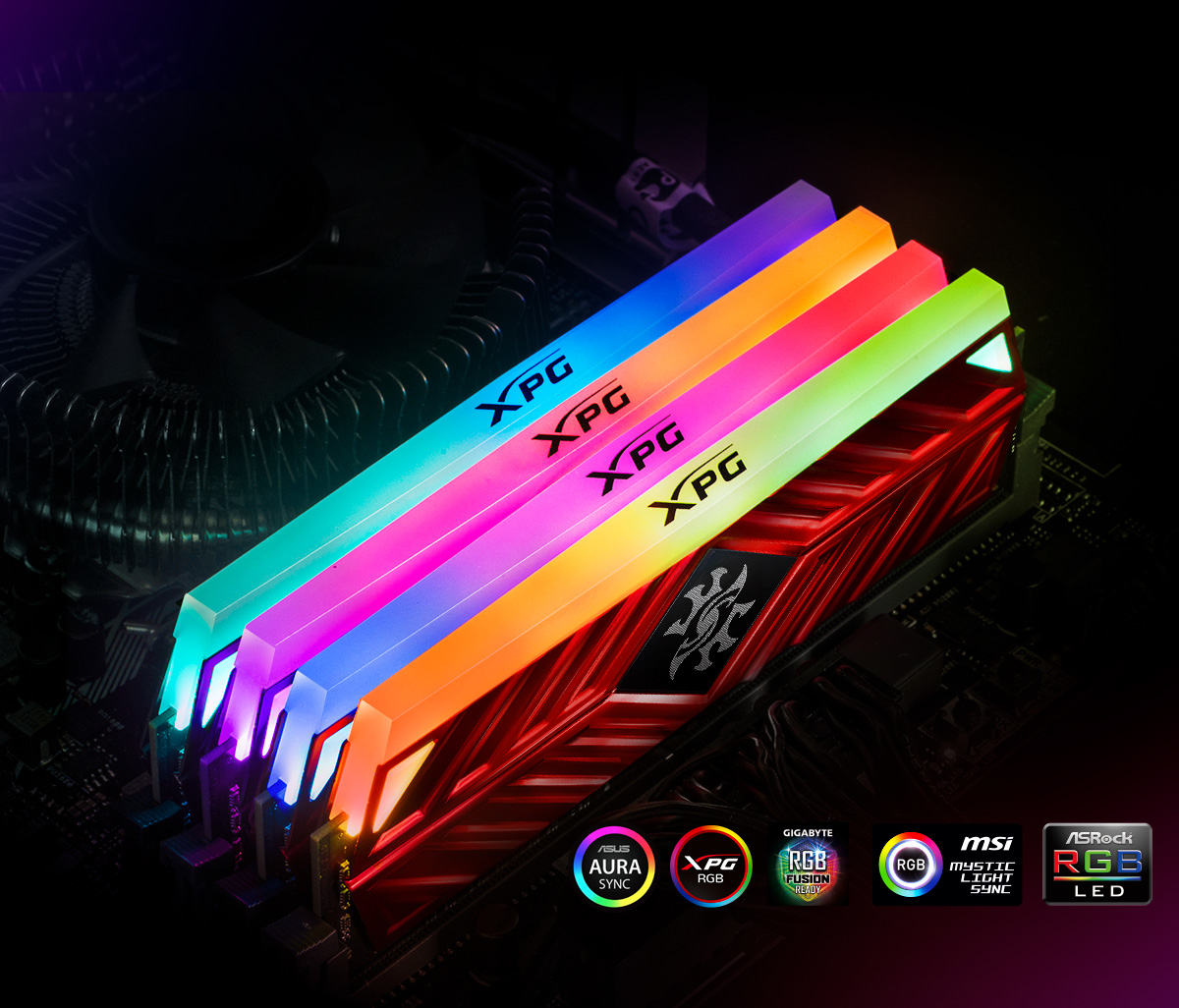

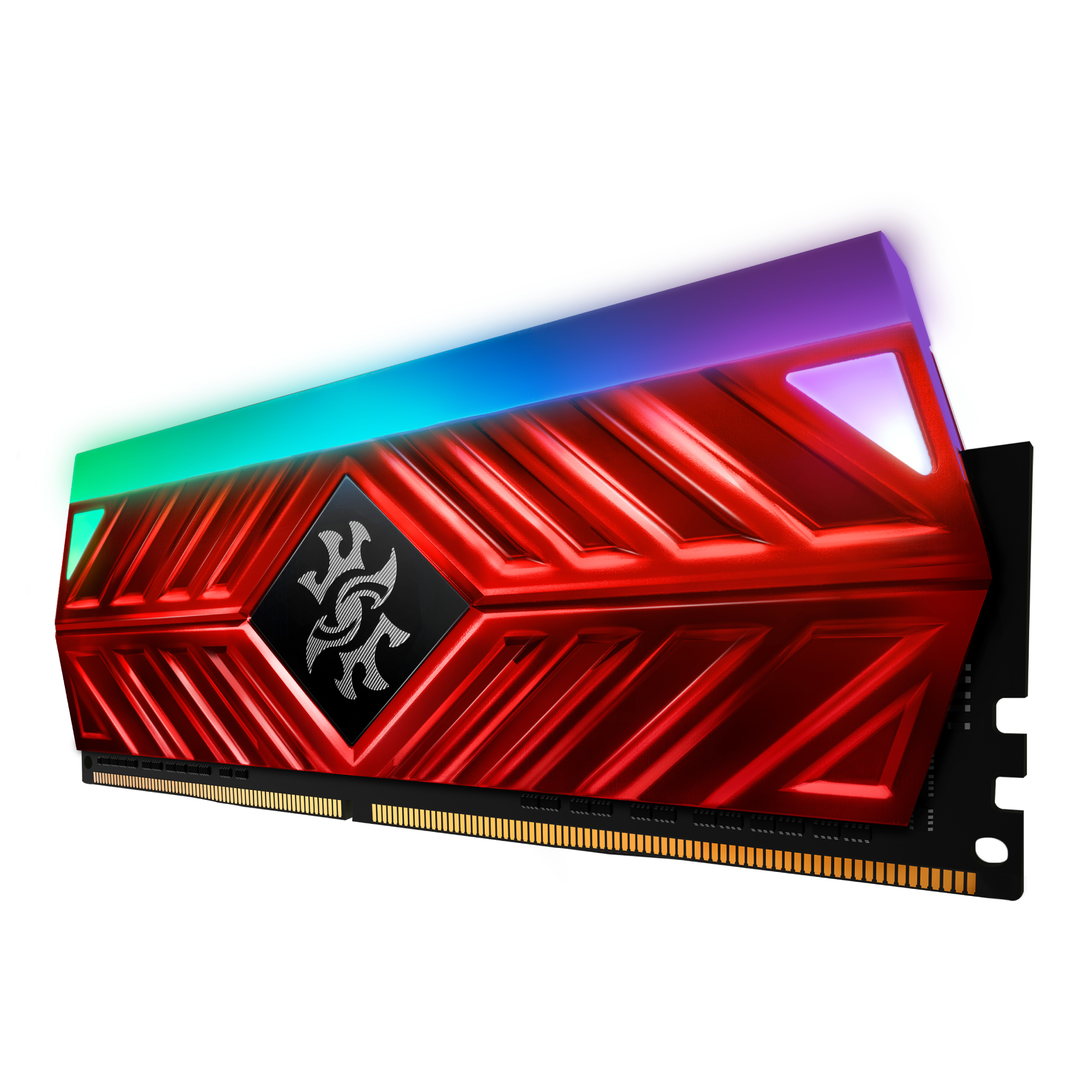

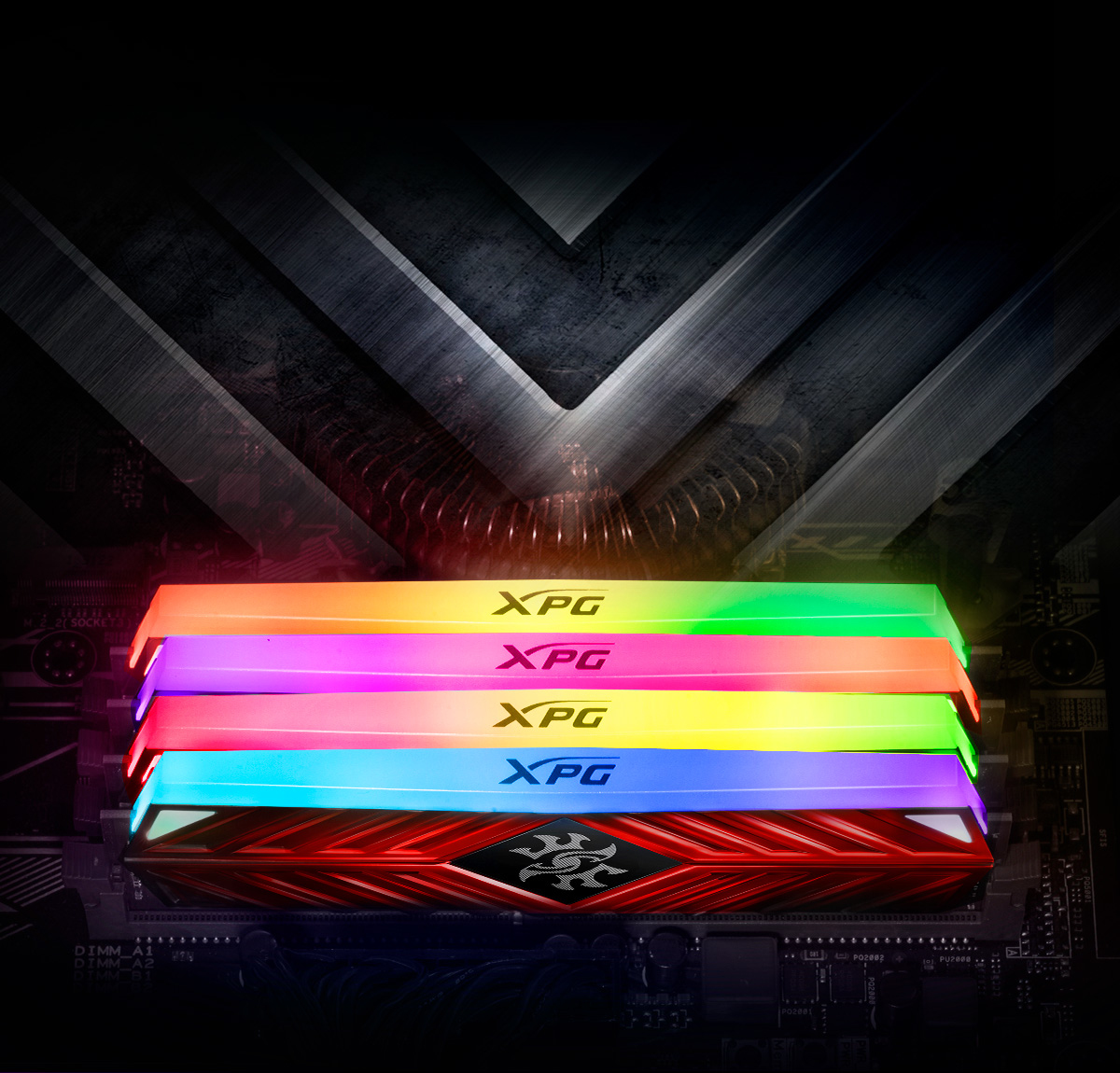

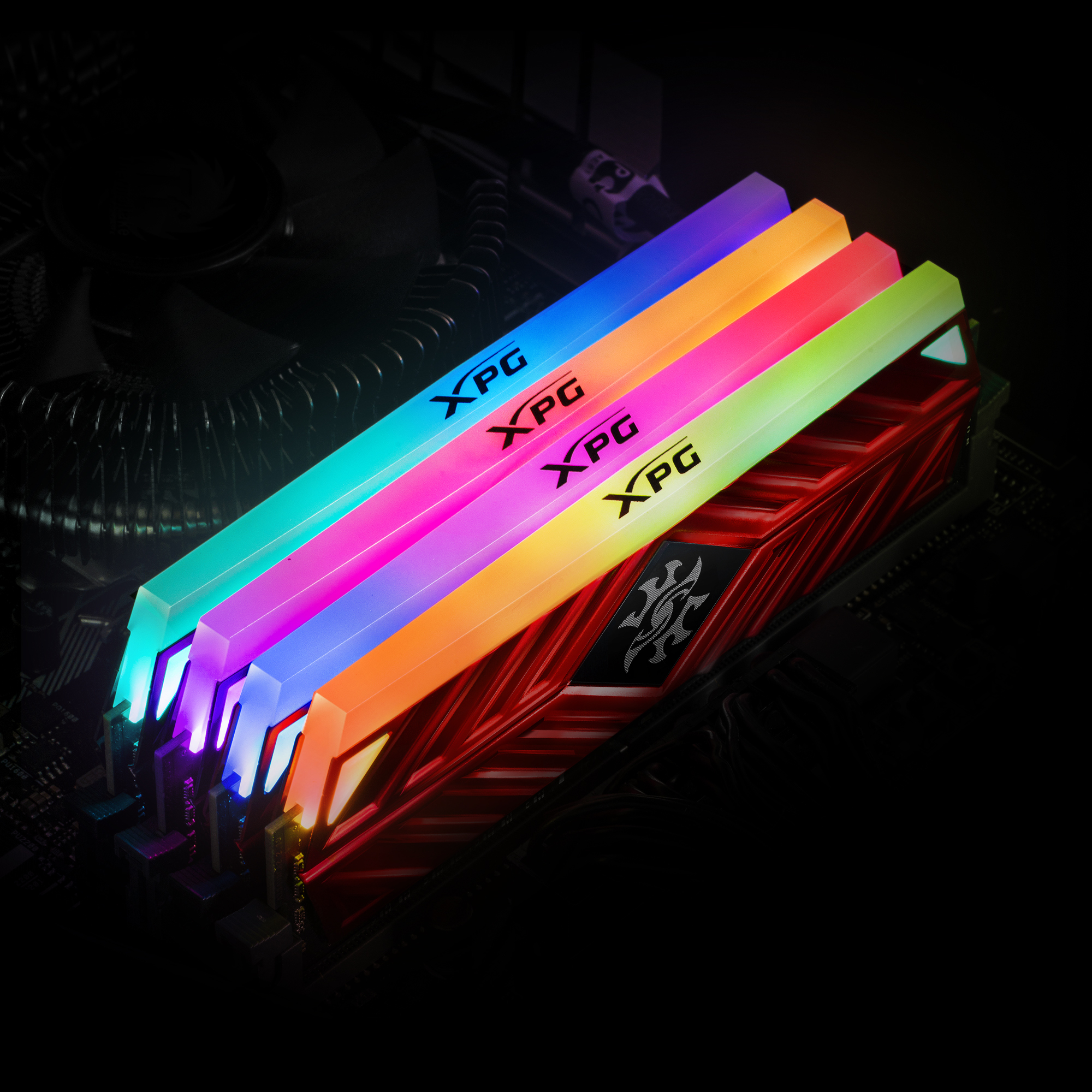

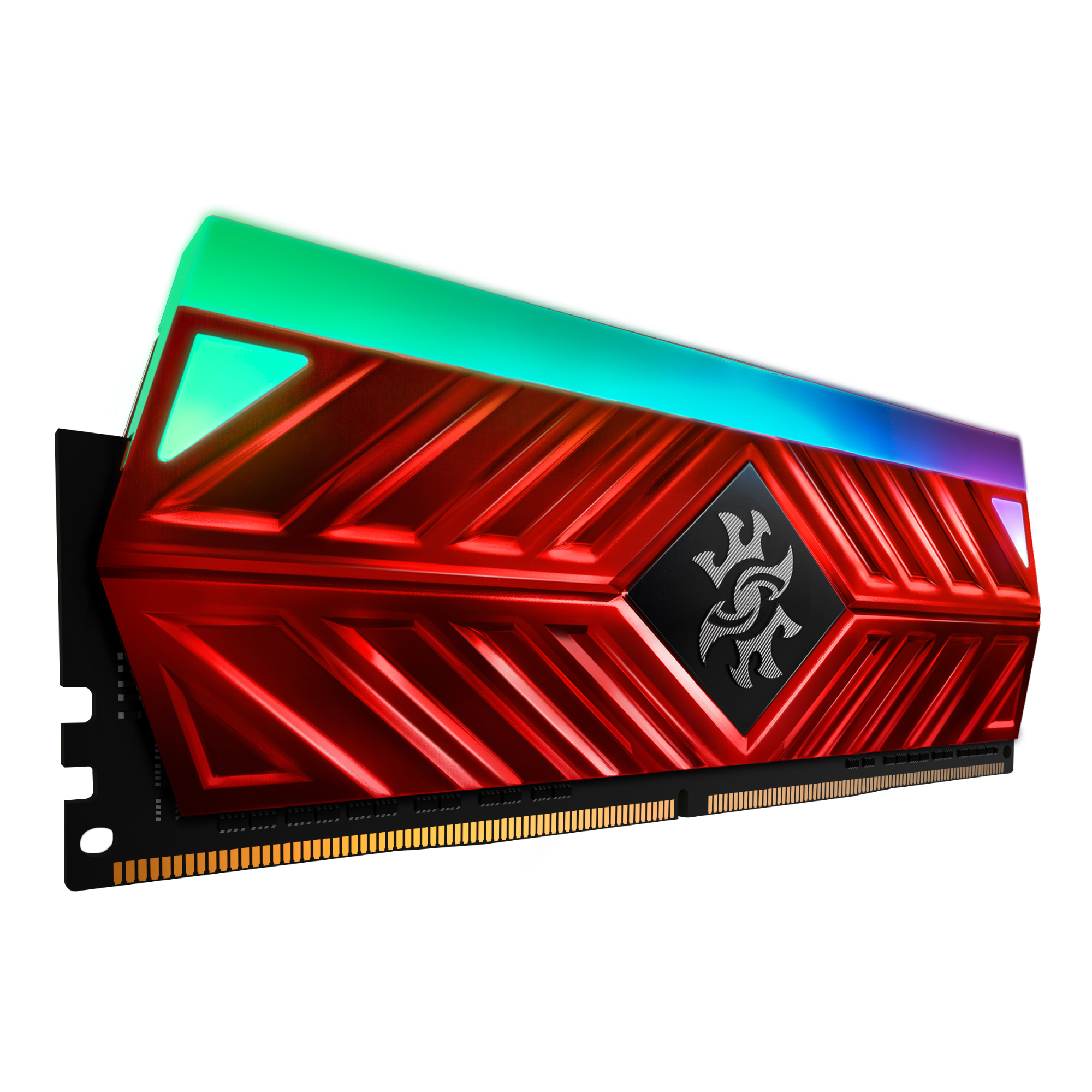

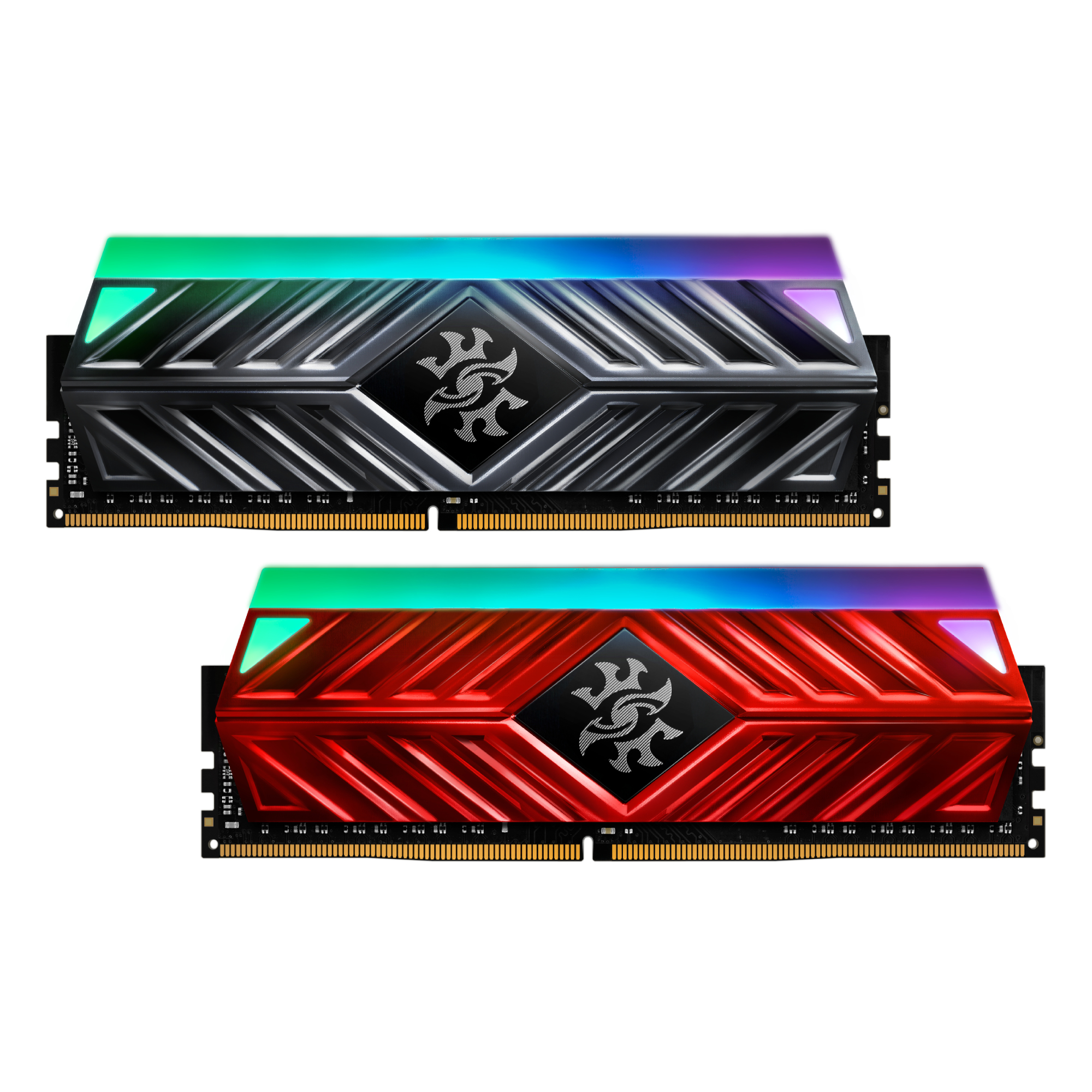

SPECTRIX D41 memory module
16 GB 1 x 16 GB DDR4 288-pin DIMM
Model D41Part no. AX4U300016G16A-DT41EAN 4711085931153
36 specifications
- Memory16 GB
- Weight53 g
- ColourRed
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 16 GB
- Weight
- 53 g
- Colour
- Red
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- XPG
- Category
- Memory Module
- Model
- D41
- Part numbers
- AX4U300016G16A-DT41, AX4U2666716G16-DR41, AX4U30008G16A-DT41, AX4U300016G16A-ST41
- EAN / UPC
- 4711085931153, 4710273777900, 4711085930927, 4711085931160
- Also known as
- XPG SPECTRIX D41 memory module 16 GB 1 x 16 GB DDR4 288-pin DIMM
Specifications
36 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR4 |
| Component for | PC |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| CAS latency | 16 |
| Memory clock speed | 2666 MHz |
| Buffered memory type | Unregistered (unbuffered) |
| Memory channels | Dual-channel |
| Memory voltage | 1.2,1.4 V |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 2.0 |
| SPD profile | Yes |
| Product colour | Red |
| Cooling type | Heatsink |
| Backlight | Yes |
| Backlight colour | Multicolour |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Depth | 45.8 mm |
| Height | 8 mm |
| Weight | 53 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 122 mm |
| Package depth | 150 mm |
| Package height | 15.5 mm |
| Package weight | 127 g |
| Package type | Dual retail pack |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 285 mm |
| Master (outer) case net weight | 14.3 kg |
| Master (outer) case gross weight | 15.3 kg |
