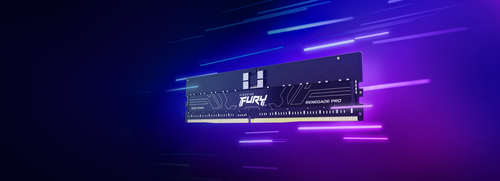

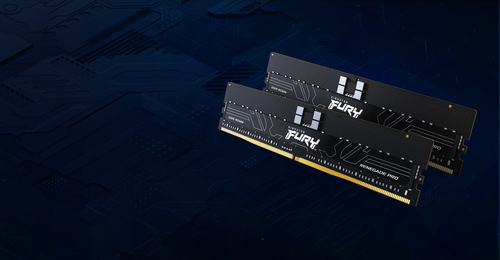

Renegade Pro
Model Renegade ProPart no. KF564R32RBEK4-64EAN 740617335491
43 specifications
- Memory16 GB
- Weight35.25 g
- ColourBlack
- Operating temperature (T-T)0 - 95 °C
- Width7.31 mm
Overview
- Memory
- 16 GB
- Weight
- 35.25 g
- Colour
- Black
- Operating temperature (T-T)
- 0 - 95 °C
- Width
- 7.31 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- Renegade Pro
- Part numbers
- KF564R32RBEK4-64, KF572RH38RB-16, KF572RH38RBK4-64, KF572RH38RBK8-128, KF572RH38RB-32, KF572RH38RBK4-128 +34 more
- EAN / UPC
- 740617335491, 740617354959, 740617354942, 740617354935 +55 more
- Also known as
- Kingston Technology FURY 16GB 7200MT/s DDR5 ECC Reg CL38 DIMM Renegade Pro Black
Specifications
43 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 7200 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| On-Die ECC | Yes |
| CAS latency | 38 |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory voltage | 1.4 V |
| Module configuration | 2048M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| AMD Extended Profiles for Overclocking (EXPO) | Yes |
| AMD Extended Profiles for Overclocking (EXPO) version | 1.1 |
| Programming power voltage (VPP) | 1.8 V |
| SPD profile | Yes |
| Product colour | Black |
| Cooling type | Heatsink |
| Lead plating | Gold |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 7.31 mm |
| Depth | 133.3 mm |
| Height | 34.1 mm |
| Weight | 35.25 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 57.1 mm |
| Package depth | 14 mm |
| Package height | 171.4 mm |
| Package weight | 51.2 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 196.8 mm |
| Master (outer) case length | 311.1 mm |
| Master (outer) case height | 61 mm |
| Master (outer) case gross weight | 1.42 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | China, Taiwan |
| Doesn't contain | Halogen |
