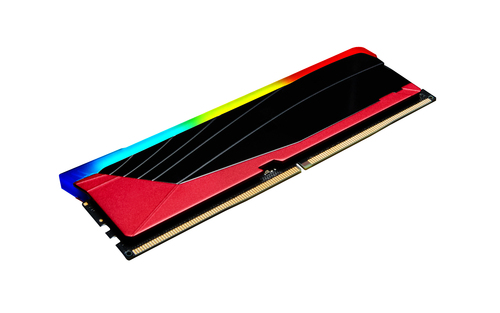

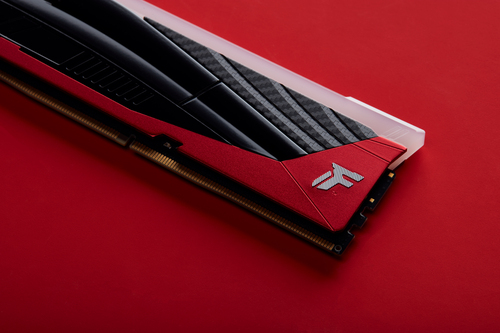

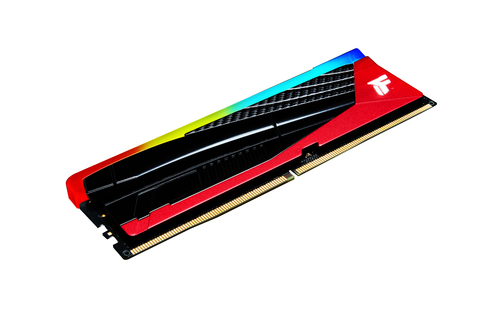

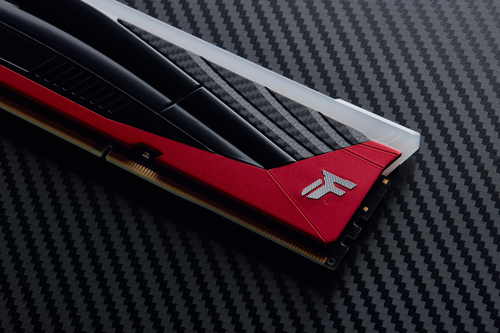

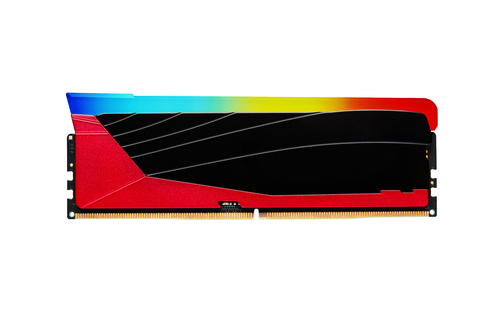

Renegade RGB Limited Edition
Model Renegade RGB Limited EditionPart no. KF580C36RLAK2-48EAN 740617343892
42 specifications
- Memory48 GB
- Weight128 g
- ColourBlack, Red
- Operating temperature (T-T)0 - 85 °C
- Width8.26 mm
Overview
- Memory
- 48 GB
- Weight
- 128 g
- Colour
- Black, Red
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 8.26 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- Renegade RGB Limited Edition
- Part number
- KF580C36RLAK2-48
- EAN / UPC
- 740617343892
- Also known as
- Kingston Technology FURY 48GB 8000MT/s DDR5 CL36 DIMM Renegade RGB Red XMP
Specifications
42 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 48 GB |
| Memory layout (modules x size) | 2 x 24 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 8000 MT/s |
| Component for | PC |
| Memory form factor | 288-pin DIMM |
| On-Die ECC | Yes |
| CAS latency | 36 |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 1 |
| Memory voltage | 1.45 V |
| Module configuration | 3072M x 64 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| Programming power voltage (VPP) | 1.8 V |
| SPD profile | Yes |
| Product colour | Black, Red |
| Cooling type | Heatsink |
| Backlight | Yes |
| Lead plating | Gold |
| Backlight colour | Red/Green/Blue |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 8.26 mm |
| Depth | 133.3 mm |
| Height | 45.8 mm |
| Weight | 128 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 181.6 mm |
| Package depth | 36.8 mm |
| Package height | 101.6 mm |
| Package weight | 263.9 g |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 238.1 mm |
| Master (outer) case length | 374.6 mm |
| Master (outer) case height | 143.5 mm |
| Master (outer) case gross weight | 2.91 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
