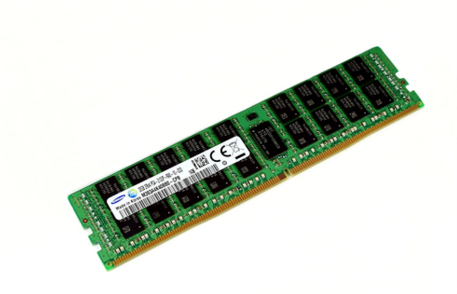

M393A2G40DB1-CRC memory module
16 GB 1 x 16 GB DDR4 288-pin DIMM ECC
Model M393A2G40DB1-CRC
20 specifications
- Memory16 GB
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 16 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- Samsung
- Category
- Memory Module
- Model
- M393A2G40DB1-CRC
- Part number
- M393A2G40DB1-CRC
- Also known as
- Samsung M393A2G40DB1-CRC memory module 16 GB 1 x 16 GB DDR4 288-pin DIMM ECC
Specifications
20 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 17 |
| Memory clock speed | 2400 MHz |
| Buffered memory type | Registered (buffered) |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 17 ns |
| Refresh row cycle time | 17 ns |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Depth | 3.9 mm |
| Height | 31.2 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
