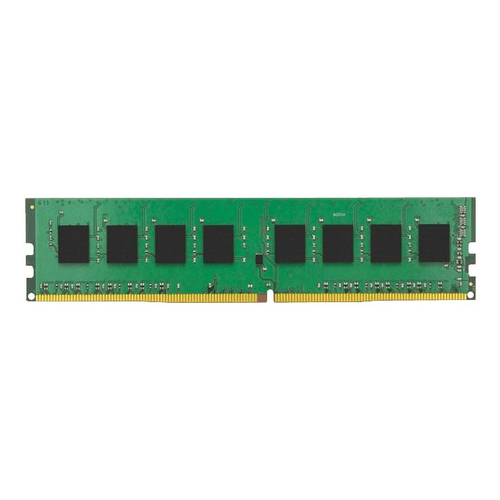

Origin Storage 32GB DDR3 1866MHz LRDIMM 4Rx4 ECC
1.5V
Model 46W0763-OSEAN 5056006165606
23 specifications
- Memory32 GB
- Weight100 g
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width133.3 mm
Overview
- Memory
- 32 GB
- Weight
- 100 g
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 133.3 mm
- Brand
- Origin Storage
- Category
- Memory Module
- Model
- 46W0763-OS
- Part number
- 46W0763-OS
- EAN / UPC
- 5056006165606, 5056006165972
- Also known as
- Origin Storage 32GB DDR3 1866MHz LRDIMM 4Rx4 ECC 1.5V
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR3 |
| Component for | NAS/storage server |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| CAS latency | 11 |
| Memory clock speed | 1866 MHz |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 4 |
| Memory voltage | 1.5 V |
| Backlight | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 95 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Depth | 3.8 mm |
| Height | 30.4 mm |
| Weight | 100 g |
