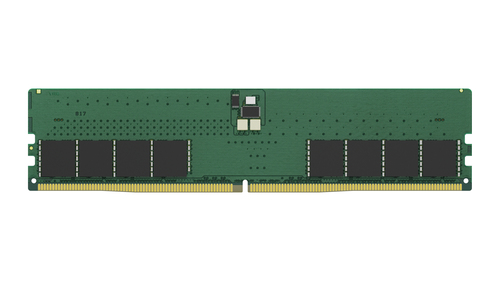

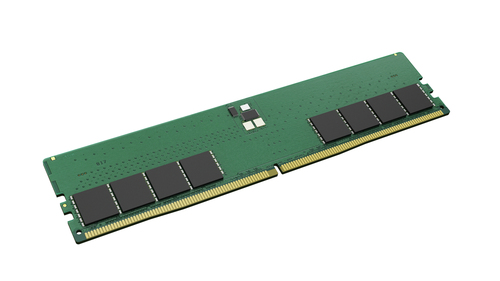

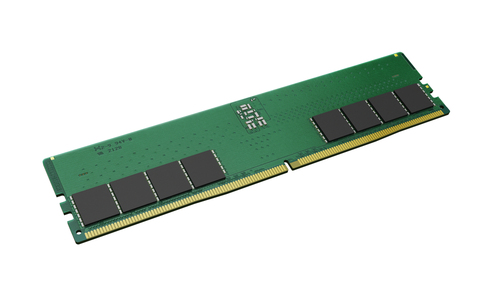

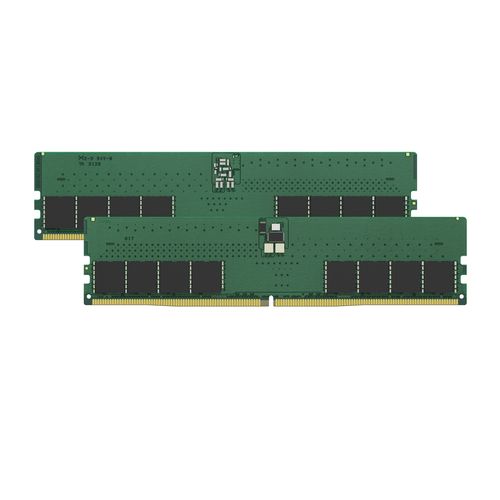

ValueRAM KVR56U46BD8K2-96 memory module
96 GB 2 x 48 GB DDR5 5600 MT/s 288-pin DIMM
Model KVR56U46BD8K2-96EAN 740617336764
25 specifications
- Memory96 GB
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 96 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KVR56U46BD8K2-96
- Part number
- KVR56U46BD8K2-96
- EAN / UPC
- 740617336764
- Also known as
- Kingston Technology ValueRAM KVR56U46BD8K2-96 memory module 96 GB 2 x 48 GB DDR5 5600 MT/s 288-pin DIMM
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 96 GB |
| Memory layout (modules x size) | 2 x 48 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| CAS latency | 46 |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 6144M x 64 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 1.8 V |
| SPD profile | Yes |
| Lead plating | Gold |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 31.2 mm |
Other features
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
