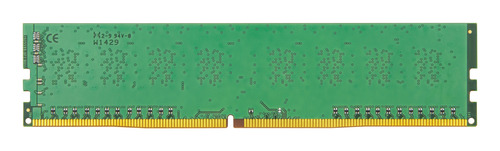

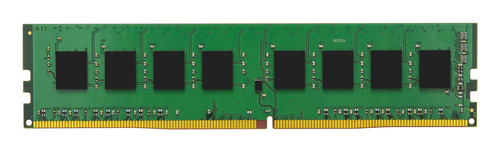

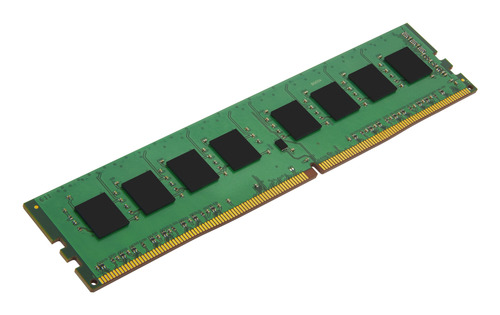

ValueRAM KVR32N22S8/8WP memory module
8 GB 1 x 8 GB DDR4 3200 MT/s 288-pin DIMM
Model KVR32N22S8/8WPEAN 740617351934
26 specifications
- Memory8 GB
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 8 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KVR32N22S8/8WP
- Part number
- KVR32N22S8/8WP
- EAN / UPC
- 740617351934
- Also known as
- Kingston Technology ValueRAM KVR32N22S8/8WP memory module 8 GB 1 x 8 GB DDR4 3200 MT/s 288-pin DIMM
Specifications
26 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory type | DDR4 |
| Memory data transfer rate | 3200 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| CAS latency | 22 |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 1 |
| Memory voltage | 1.2 V |
| Module configuration | 1024M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Lead plating | Gold |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 31.2 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Doesn't contain | Halogen |
