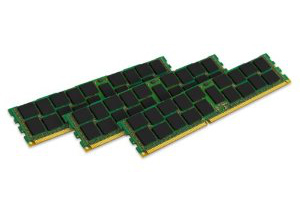

ValueRAM KVR16LR11S8K4 memory module
16 GB 4 x 4 GB DDR3L 240-pin DIMM ECC
Model KVR16LR11S8K4Part no. KVR16LR11S8K4/16EAN 7406172289534
27 specifications
- Memory16 GB
- ColourBlack, Green
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width133.3 mm
Overview
- Memory
- 16 GB
- Colour
- Black, Green
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KVR16LR11S8K4
- Part numbers
- KVR16LR11S8K4/16, KVR16LR11S8K4/16I
- EAN / UPC
- 7406172289534, 740617228939, 4053162867529, 5054484584377 +4 more
- Also known as
- Kingston Technology ValueRAM KVR16LR11S8K4 memory module 16 GB 4 x 4 GB DDR3L 240-pin DIMM ECC
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 4 x 4 GB |
| Internal memory type | DDR3L |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| CAS latency | 11 |
| Memory bus | 72 bit |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory voltage | 1.35 V |
| Module configuration | 512M X 72 |
| Row cycle time | 48.125 ns |
| Refresh row cycle time | 260 ns |
| Row active time | 35 ns |
| Product colour | Black, Green |
| Lead plating | Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 30 mm |
Other features
| Specification | Value |
|---|---|
| Chips organisation | X8 |
| Bus clock rate | 1600 MHz |
| Error indication | ECC |
| Internal memory | 16384 MB |
| Memory layout | 4 x 4096 MB |
