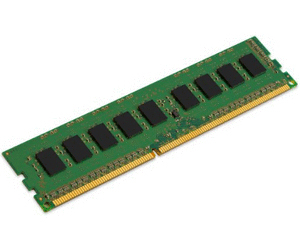

ValueRAM KVR16LR11S4/4HE memory module
4 GB 1 x 4 GB DDR3 240-pin DIMM ECC
Model KVR16LR11S4/4HEEAN 740617218220
23 specifications
- Memory4 GB
- Operating temperature (T-T)0 - 85 °C
- Height30 mm
Overview
- Memory
- 4 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Height
- 30 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KVR16LR11S4/4HE
- Part number
- KVR16LR11S4/4HE
- EAN / UPC
- 740617218220
- Also known as
- Kingston Technology ValueRAM KVR16LR11S4/4HE memory module 4 GB 1 x 4 GB DDR3 240-pin DIMM ECC
Specifications
23 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Memory layout (modules x size) | 1 x 4 GB |
| Internal memory type | DDR3 |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| CAS latency | 11 |
| Memory bus | 72 bit |
| Buffered memory type | Registered (buffered) |
| Memory channels | Single-channel |
| Memory ranking | 1 |
| Memory voltage | 1.35 V |
| Module configuration | 512M X 72 |
| SPD profile | Yes |
| Lead plating | Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 30 mm |
Other features
| Specification | Value |
|---|---|
| Chips organisation | X4 |
| Bus clock rate | 1600 MHz |
| Error indication | ECC |
| Internal memory | 4096 MB |
| Memory layout | 1 x 4096 MB |
