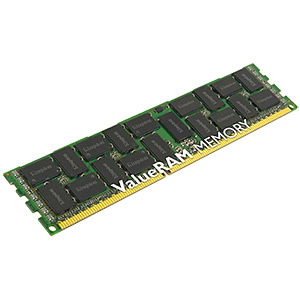

ValueRAM KVR16LR11D8K3/24 memory module
24 GB 3 x 8 GB DDR3 240-pin DIMM ECC
Model KVR16LR11D8K3/24EAN 740617231991
25 specifications
- Memory24 GB
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 24 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KVR16LR11D8K3/24
- Part number
- KVR16LR11D8K3/24
- EAN / UPC
- 740617231991, 7406172319910
- Also known as
- Kingston Technology ValueRAM KVR16LR11D8K3/24 memory module 24 GB 3 x 8 GB DDR3 240-pin DIMM ECC
Specifications
25 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 24 GB |
| Memory layout (modules x size) | 3 x 8 GB |
| Internal memory type | DDR3 |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| CAS latency | 11 |
| Memory bus | 72 bit |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory voltage | 1.35 V |
| Module configuration | 512M x 8 |
| Row cycle time | 48.125 ns |
| Refresh row cycle time | 260 ns |
| Row active time | 35 ns |
| Lead plating | Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 30 mm |
Other features
| Specification | Value |
|---|---|
| Chips organisation | X8 |
| Bus clock rate | 1600 MHz |
| Error indication | ECC |
| Internal memory | 24576 MB |
| Memory layout | 3 x 8192 MB |
