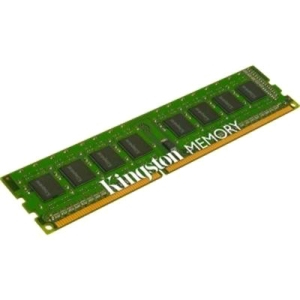

System Specific Memory KTH-PL313ELV/8G memory module
8 GB 1 x 8 GB DDR3 240-pin DIMM ECC
Model KTH-PL313ELV/8GEAN 7406172219920
20 specifications
- Memory8 GB
- Width133.3 mm
Overview
- Memory
- 8 GB
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KTH-PL313ELV/8G
- Part number
- KTH-PL313ELV/8G
- EAN / UPC
- 7406172219920, 168141491085, 740617018929, 740617221992 +5 more
- Also known as
- Kingston Technology System Specific Memory KTH-PL313ELV/8G memory module 8 GB 1 x 8 GB DDR3 240-pin DIMM ECC
Specifications
20 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory type | DDR3 |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | Yes |
| CAS latency | 9 |
| Memory bus | 72 bit |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 2 |
| Memory voltage | 1.35 V |
| Module configuration | 1G X 72 |
| Lead plating | Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
Other features
| Specification | Value |
|---|---|
| Chips organisation | X8 |
| Compatibility | 647909-B21 (HP) |
| Bus clock rate | 1333 MHz |
| Error indication | ECC |
| Internal memory | 8192 MB |
| Memory layout | 1 x 8192 MB |
