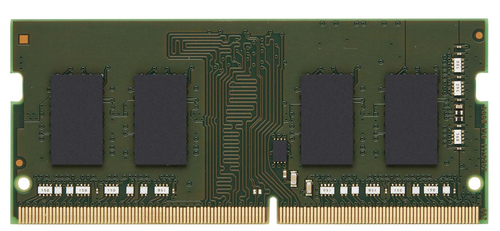

Kingston Technology KSM26SED8/16ME memory module

Kingston Technology KSM26SED8/16ME memory module

16 GB 1 x 16 GB DDR4 260-pin SO-DIMM ECC

Model KSM26SED8/16MEEAN 740617279764

25 specifications

Memory16 GB
Operating temperature (T-T)0 - 85 °C
Width69.6 mm

See all specifications

Overview

Memory: 16 GB
Operating temperature (T-T): 0 - 85 °C
Width: 69.6 mm

Brand: Kingston Technology
Category: Memory Module
Model: KSM26SED8/16ME
Part number: KSM26SED8/16ME
EAN / UPC: 740617279764
Also known as: Kingston Technology KSM26SED8/16ME memory module 16 GB 1 x 16 GB DDR4 260-pin SO-DIMM ECC

Specifications

25 specifications in 6 groups

Features

Specification	Value
Internal memory	16 GB
Memory layout (modules x size)	1 x 16 GB
Internal memory type	DDR4
Component for	Laptop
Memory form factor	260-pin SO-DIMM
ECC	Yes
CAS latency	19
Memory ranking	2
Memory voltage	1.2 V
Module configuration	2048M x 72
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Programming power voltage (VPP)	2.5 V
Lead plating	Gold
Compatible products	Dell - Precision (3530) Dell - Precision 15 7000 Series (7530) Dell - Precision 17 7000 Series (7730) HP/Compaq - Workstation Z2 Mini G4 HP/Compaq - ZBook 15 G5 Mobile Workstation HP/Compaq - ZBook 15v G5 Mobile Workstation HP/Compaq - ZBook 17 G5 Mobile Workstation HP/Compaq - ZBook Studio G5 Mobil
JEDEC standard	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C

Sustainability

Specification	Value
Compliance certificates	RoHS

Weight & dimensions

Specification	Value
Width	69.6 mm
Depth	3.7 mm
Height	30 mm

Logistics data

Specification	Value
Harmonized System (HS) code	84733020

Other features

Specification	Value
Doesn't contain	Halogen
