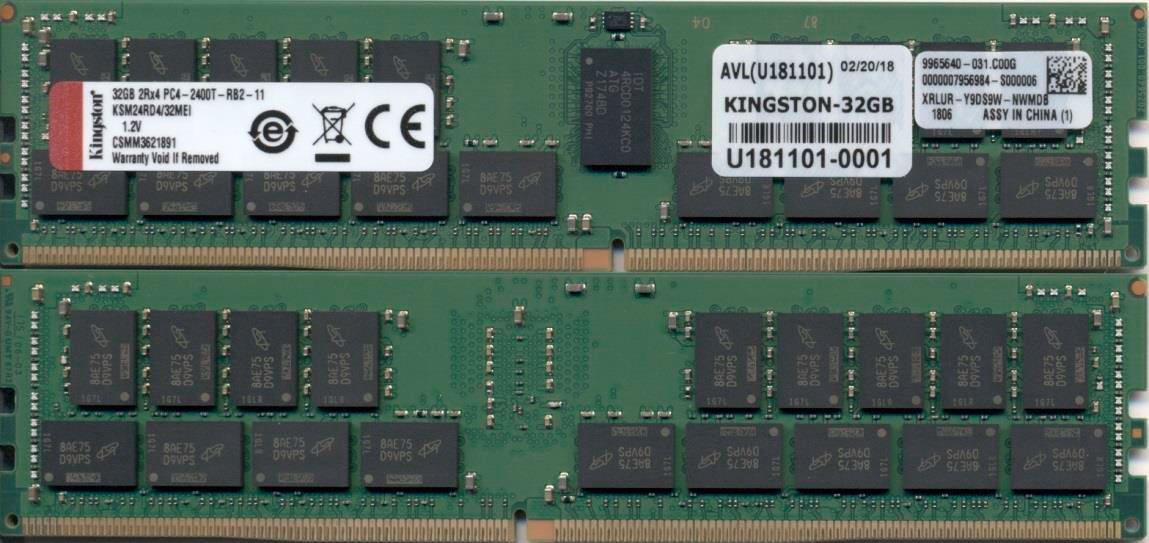

KSM24RD4/32MEI memory module
32 GB 1 x 32 GB DDR4 288-pin DIMM ECC
Model KSM24RD4/32MEIEAN 740617278293
25 specifications
- Memory32 GB
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width133.3 mm
Overview
- Memory
- 32 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KSM24RD4/32MEI
- Part number
- KSM24RD4/32MEI
- EAN / UPC
- 740617278293
- Also known as
- Kingston Technology KSM24RD4/32MEI memory module 32 GB 1 x 32 GB DDR4 288-pin DIMM ECC
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 17 |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 4096M x 72 |
| Row cycle time | 46.16 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Lead plating | Gold |
| Compatible products | AIC - HA201-TP Server AIC - Phoenix Server Board AIC - SB202-LB Storage Server AIC - Virgo Server Board ASRock - Server 3U8G-C612 ASRock - Server Board D1541D4U Series ASRock - Server Board EP2C612 WS ASRock - Server Board EP2C612D16-2L2T ASRock - Server Board EP2C612D16-4L ASRock - Server Board EP2 |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 31.2 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
