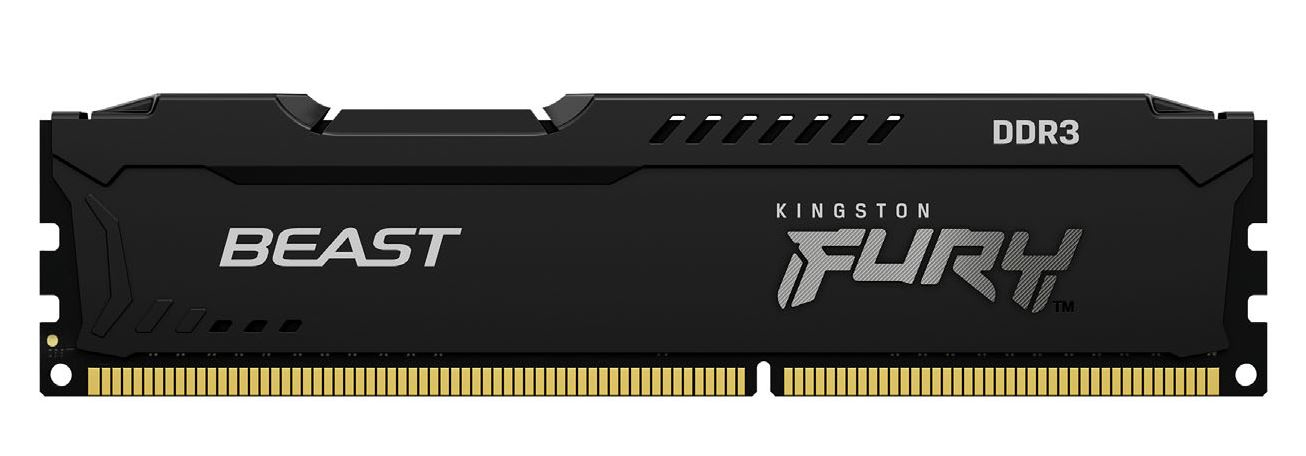

KF316C10BBK2/16 memory module
16 GB 2 x 8 GB DDR3 240-pin DIMM
Model KF316C10BBK2/16EAN 740617318104
25 specifications
- Memory16 GB
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width133.3 mm
Overview
- Memory
- 16 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- KF316C10BBK2/16
- Part number
- KF316C10BBK2/16
- EAN / UPC
- 740617318104
- Also known as
- Kingston Technology KF316C10BBK2/16 memory module 16 GB 2 x 8 GB DDR3 240-pin DIMM
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 2 x 8 GB |
| Internal memory type | DDR3 |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | No |
| CAS latency | 10 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Module configuration | 512M x 8 |
| Row cycle time | 48.125 ns |
| Refresh row cycle time | 260 ns |
| Row active time | 37.5 ns |
| Cooling type | Heatsink |
| Backlight | No |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Depth | 7.1 mm |
| Height | 34 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
