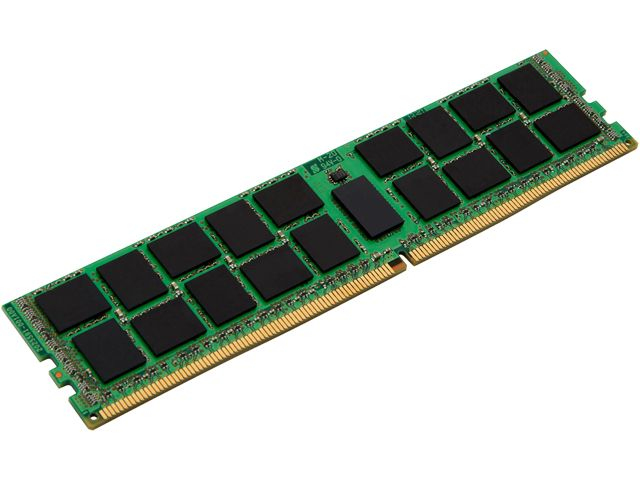

8GB DDR4 2400MHz Intel Validated Module
Model 8GB DDR4 2400MHz Intel Validated ModulePart no. KVR24R17S8/8IEAN 740617257465
31 specifications
- Memory8 GB
- ColourGreen
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width133.3 mm
Overview
- Memory
- 8 GB
- Colour
- Green
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- 8GB DDR4 2400MHz Intel Validated Module
- Part number
- KVR24R17S8/8I
- EAN / UPC
- 740617257465
- Also known as
- Kingston Technology ValueRAM 8GB DDR4 2400MHz Intel Validated Module memory module 1 x 8 GB 288-pin DIMM ECC
Specifications
31 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 17 |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory voltage | 1.2 V |
| Module configuration | 1024M x 72 |
| Row cycle time | 46.16 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory type | PC4-19200 |
| Product colour | Green |
| Cooling type | Heatsink |
| Lead plating | Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 31.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | DIMM |
Other features
| Specification | Value |
|---|---|
| Chips organisation | x4 |
| Country of origin | Taiwan |
| Number of pins | 288 |
