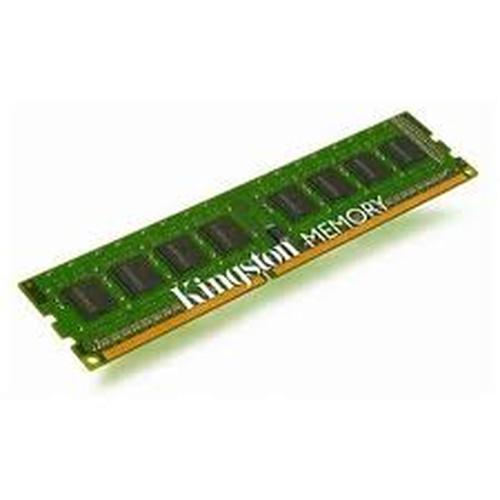

Kingston Technology 4GB DDR3 1600MT/s Module
Model 4GB DDR3 1600MT/s ModulePart no. KCP316NS8/4EAN 5054533185739
27 specifications
- Memory4 GB
- ColourGreen
- Operating temperature (T-T)0 - 85 °C
- Windows operating systems supportedYes
- Width67.6 mm
Overview
- Memory
- 4 GB
- Colour
- Green
- Operating temperature (T-T)
- 0 - 85 °C
- Windows operating systems supported
- Yes
- Width
- 67.6 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- 4GB DDR3 1600MT/s Module
- Part number
- KCP316NS8/4
- EAN / UPC
- 5054533185739, 069060106404, 151903574751, 740617207644 +14 more
- Also known as
- Kingston Technology System Specific Memory 4GB DDR3 1600MT/s Module memory module 1 x 4 GB 1600 MT/s 240-pin DIMM
Specifications
27 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Memory layout (modules x size) | 1 x 4 GB |
| Internal memory type | DDR3 |
| Memory data transfer rate | 1600 MT/s |
| Component for | PC/Server |
| Memory form factor | 240-pin DIMM |
| ECC | No |
| CAS latency | 11 |
| Memory bus | 64 bit |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 1 |
| Memory voltage | 1.5 V |
| Module configuration | 512M x 64 |
| Memory type | PC-12800 |
| Product colour | Green |
| Lead plating | Gold |
| Compatible products | Acer: Aspire AT7 Series AT7-xxx, Aspire M Series AM3985-xxx, Aspire M Series MC605, Aspire M T Series AME600-xxx, Aspire M T Series AT3-600-xxx, Aspire M T Series AT3-605-xxx, Aspire M T Series TC603-xxx, Aspire M T Series TC605, Aspire M1 Series AM1930-xxx, Aspire M1470 Series AM1470-xxx, Aspire Pr |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67.6 mm |
| Height | 30 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Chips organisation | x8 |
| Number of pins | 240 |
| Replacement for | A7398800 (Dell); 0A65729 (Lenovo); 888015710 (Lenovo) |
