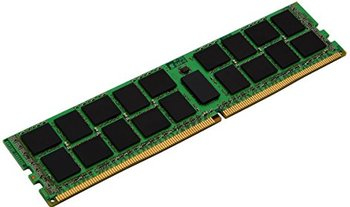

16GB DDR4
Model 16GB DDR4Part no. KVR21R15D4/16IEAN 740617248722
25 specifications
- Memory16 GB
- Operating temperature (T-T)0 - 85 °C
- Width133.3 mm
Overview
- Memory
- 16 GB
- Operating temperature (T-T)
- 0 - 85 °C
- Width
- 133.3 mm
- Brand
- Kingston Technology
- Category
- Memory Module
- Model
- 16GB DDR4
- Part numbers
- KVR21R15D4/16I, KVR21R15D4/16, KTD-PE421/16G, KTH-PL421/16G, KVR21R15D4/16HA
- EAN / UPC
- 740617248722, 012304330370, 740617234923, 801947361397 +18 more
- Also known as
- Kingston Technology ValueRAM 16GB DDR4 memory module 1 x 16 GB 288-pin DIMM ECC
Specifications
25 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 15 |
| Memory bus | 72 bit |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 2G X 72 |
| Row cycle time | 47.05 ns |
| Refresh row cycle time | 260 ns |
| Row active time | 33 ns |
| Lead plating | Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 31.2 mm |
Other features
| Specification | Value |
|---|---|
| Chips organisation | X4 |
| Bus clock rate | 2133 MHz |
| Error indication | ECC |
| Internal memory | 16384 MB |
| Memory layout | 1 x 16384 MB |
