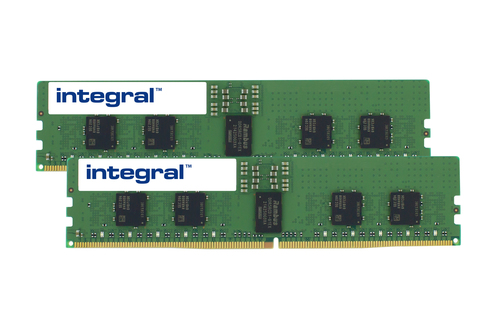

16GB SERVER RAM MODULE DDR5 4800MT/s PC5-38400 REGISTERED ECC DIMM RANK1
1.1V 2GX8 CL40
Model IN5T16GR8HRBX1EAN 5055288486645
20 specifications
- Memory16 GB
- Width133.3 mm
Overview
- Memory
- 16 GB
- Width
- 133.3 mm
- Brand
- Integral
- Category
- Memory Module
- Model
- IN5T16GR8HRBX1
- Part number
- IN5T16GR8HRBX1
- EAN / UPC
- 5055288486645
- Also known as
- Integral 16GB SERVER RAM MODULE DDR5 4800MT/s PC5-38400 REGISTERED ECC DIMM RANK1 1.1V 2GX8 CL40
Specifications
20 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory type | DDR5 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 40 |
| Memory clock speed | 4800 MHz |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 80 |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133.3 mm |
| Height | 30.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 31 mm |
| Package height | 3.4 mm |
| Package weight | 25 g |
Other features
| Specification | Value |
|---|---|
| Certification | UKCA |
