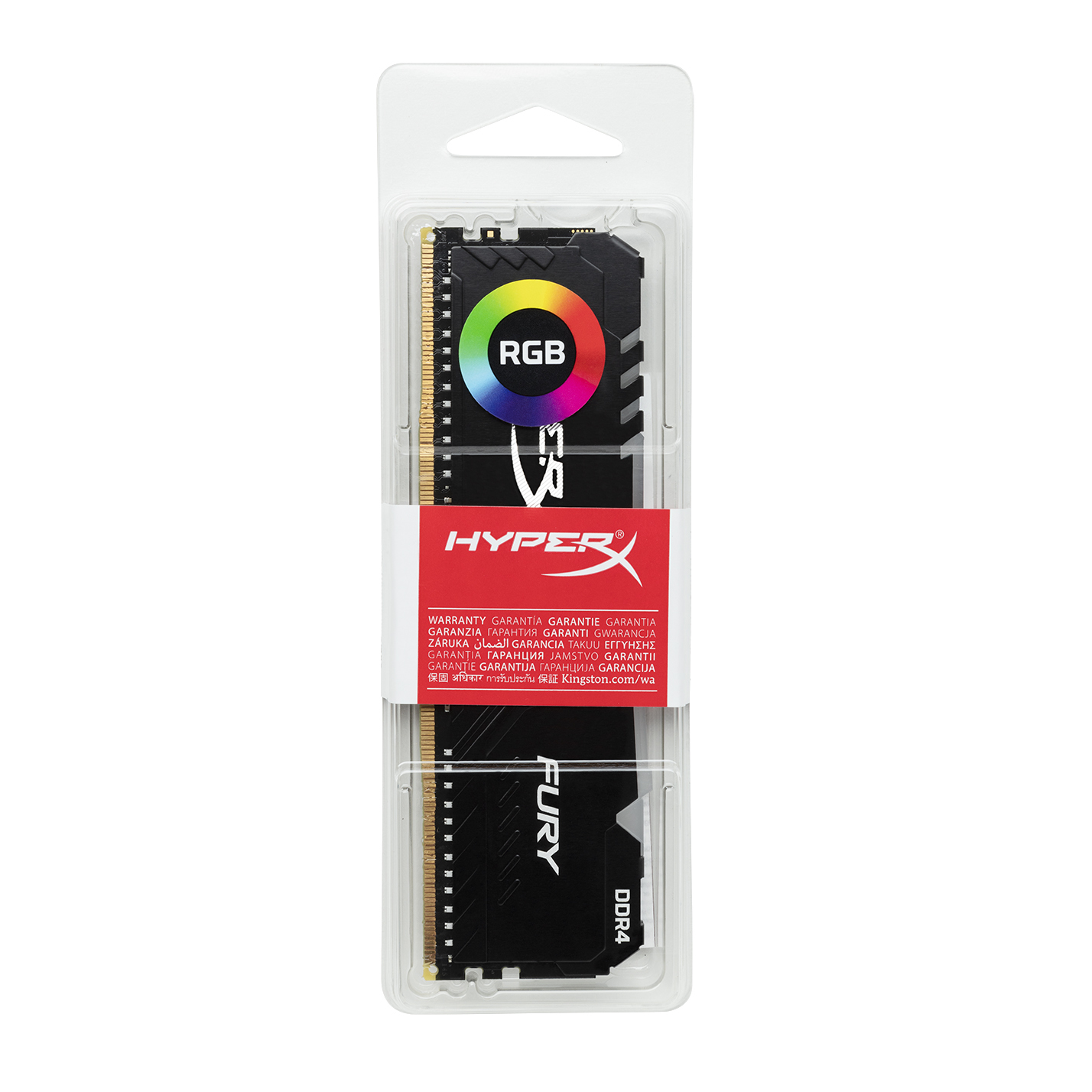

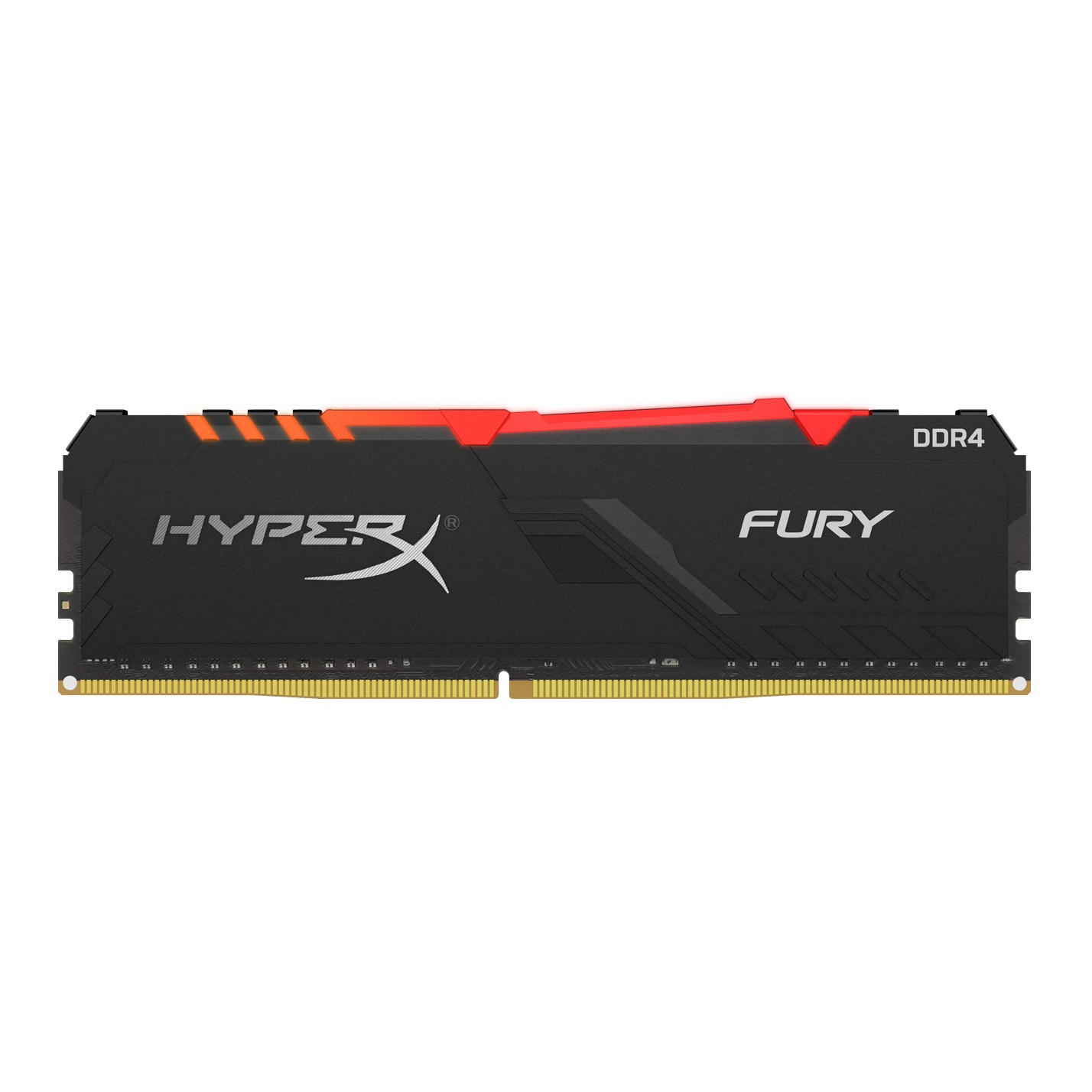

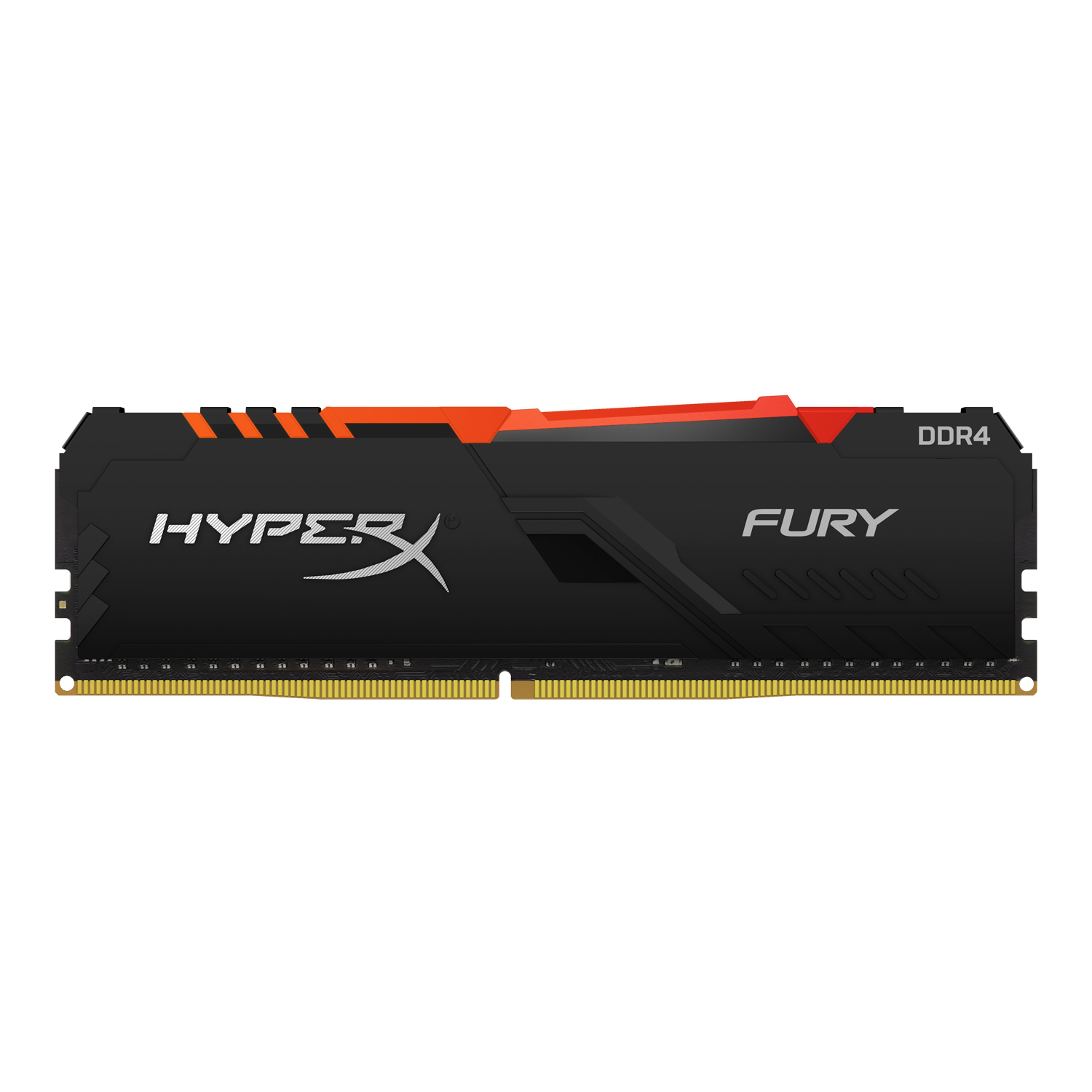

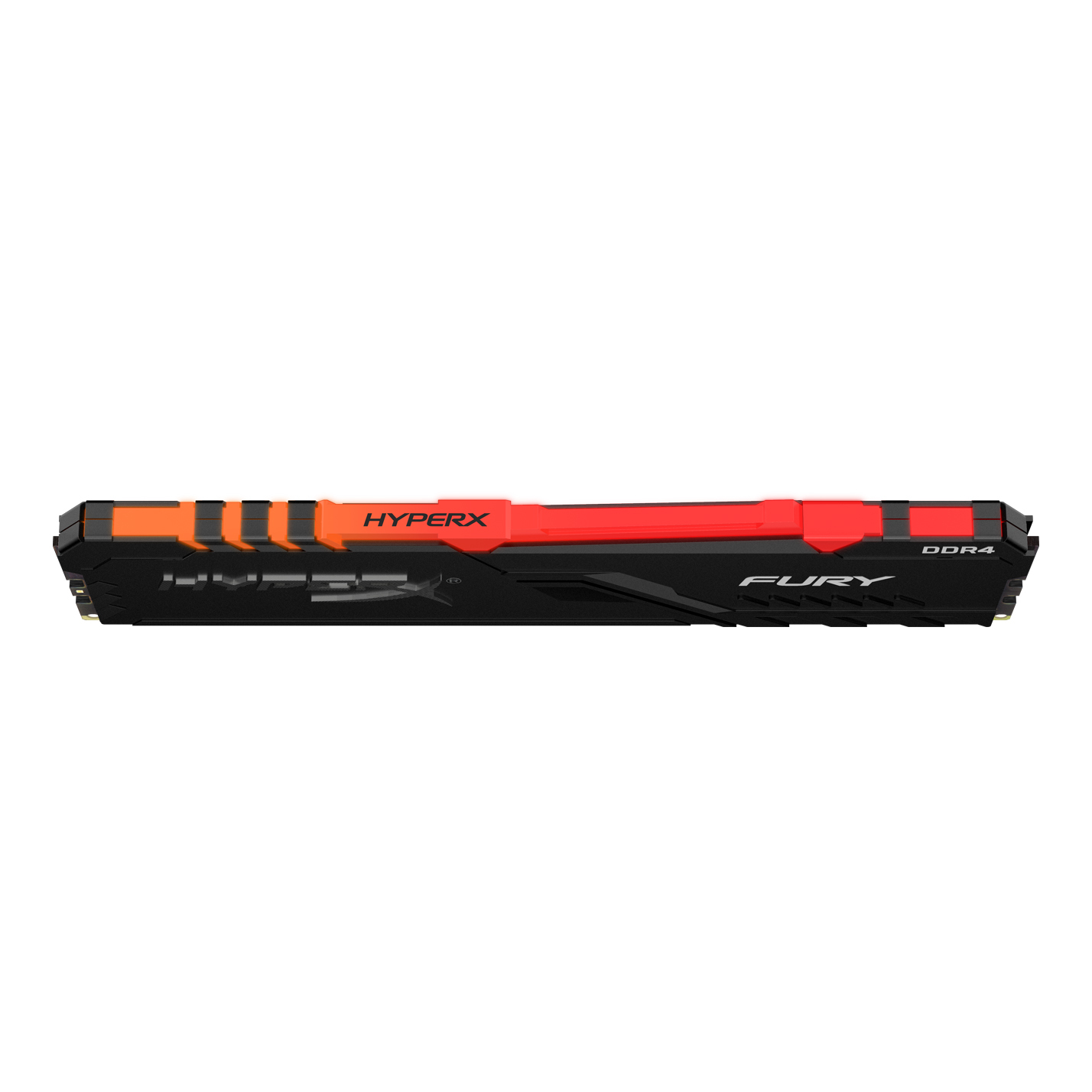

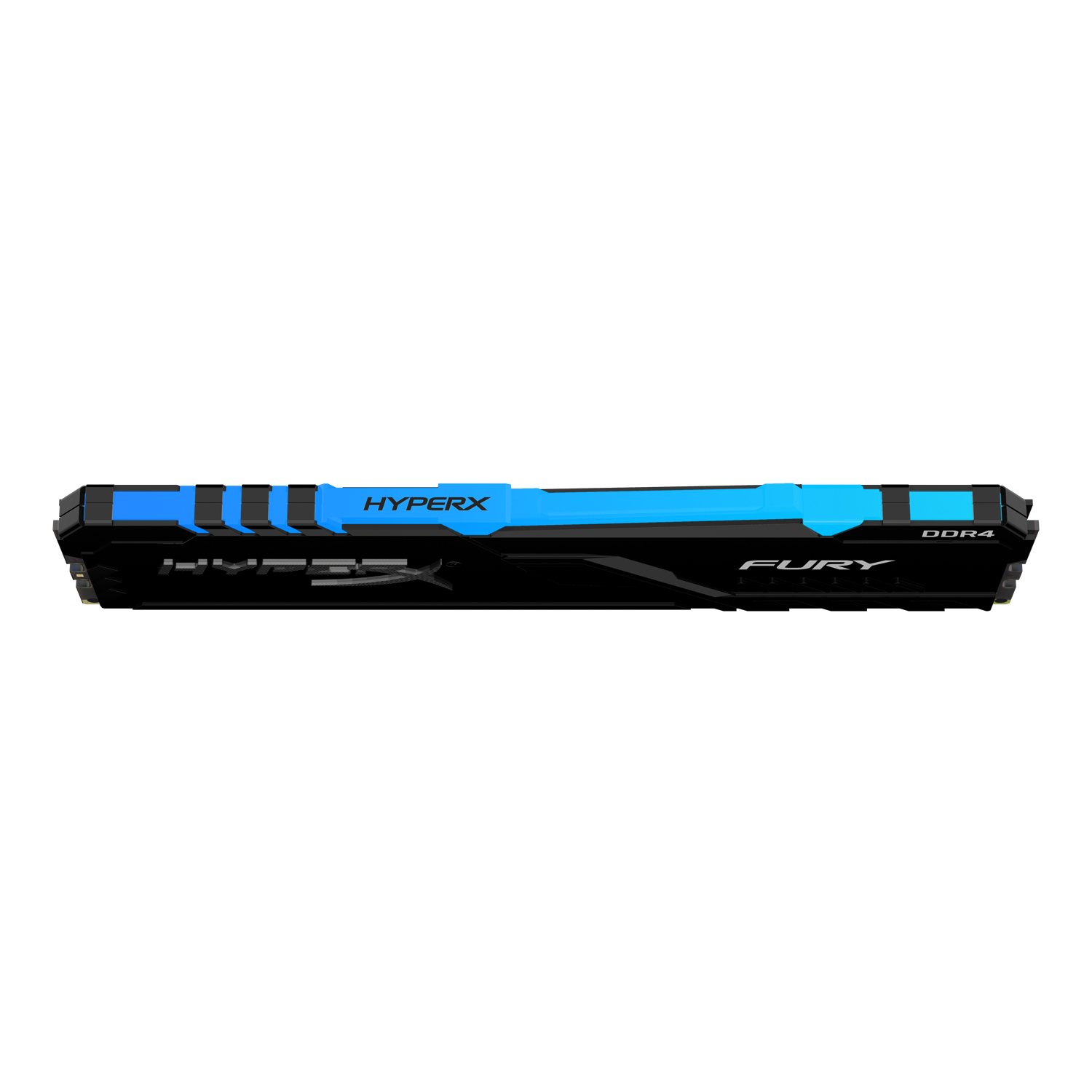

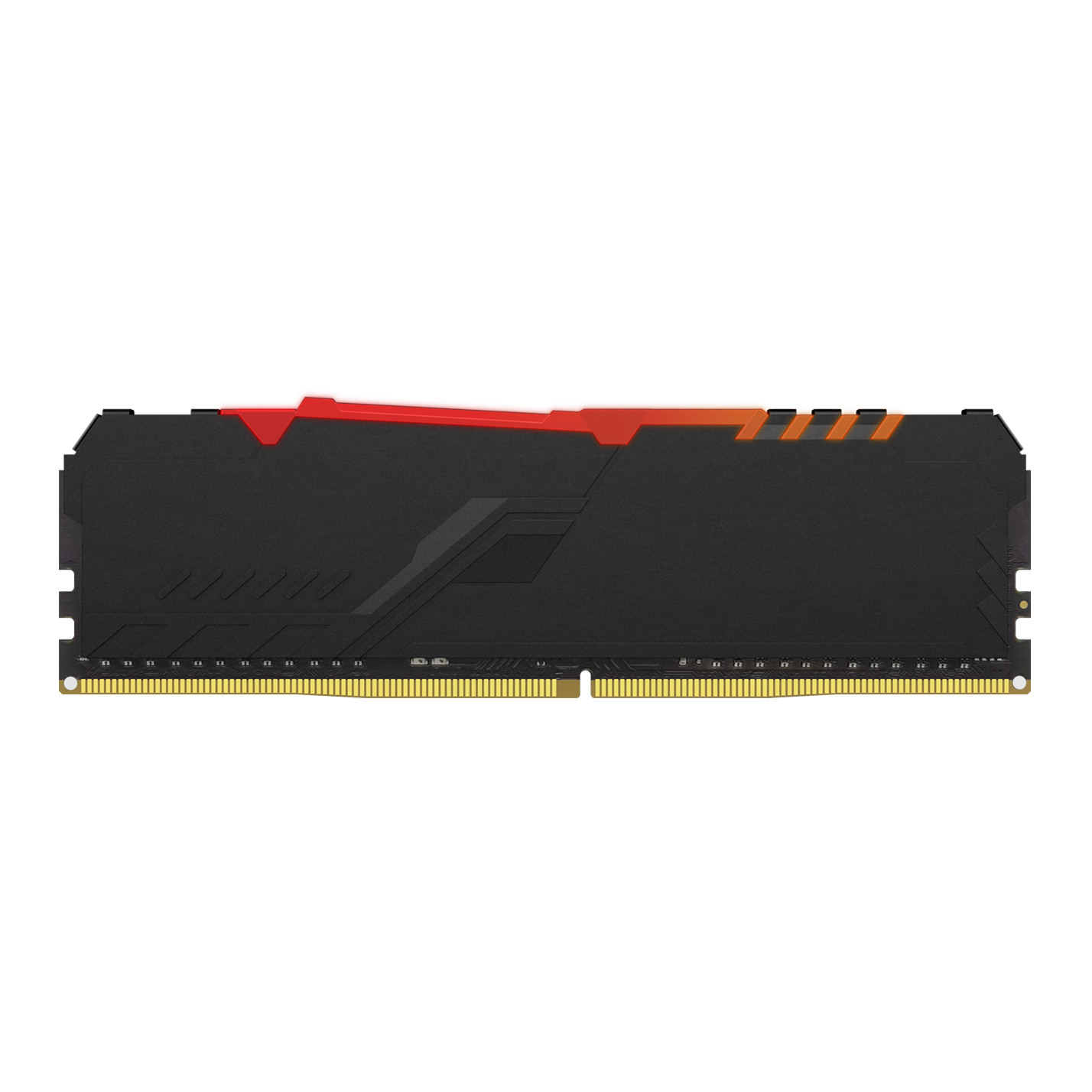

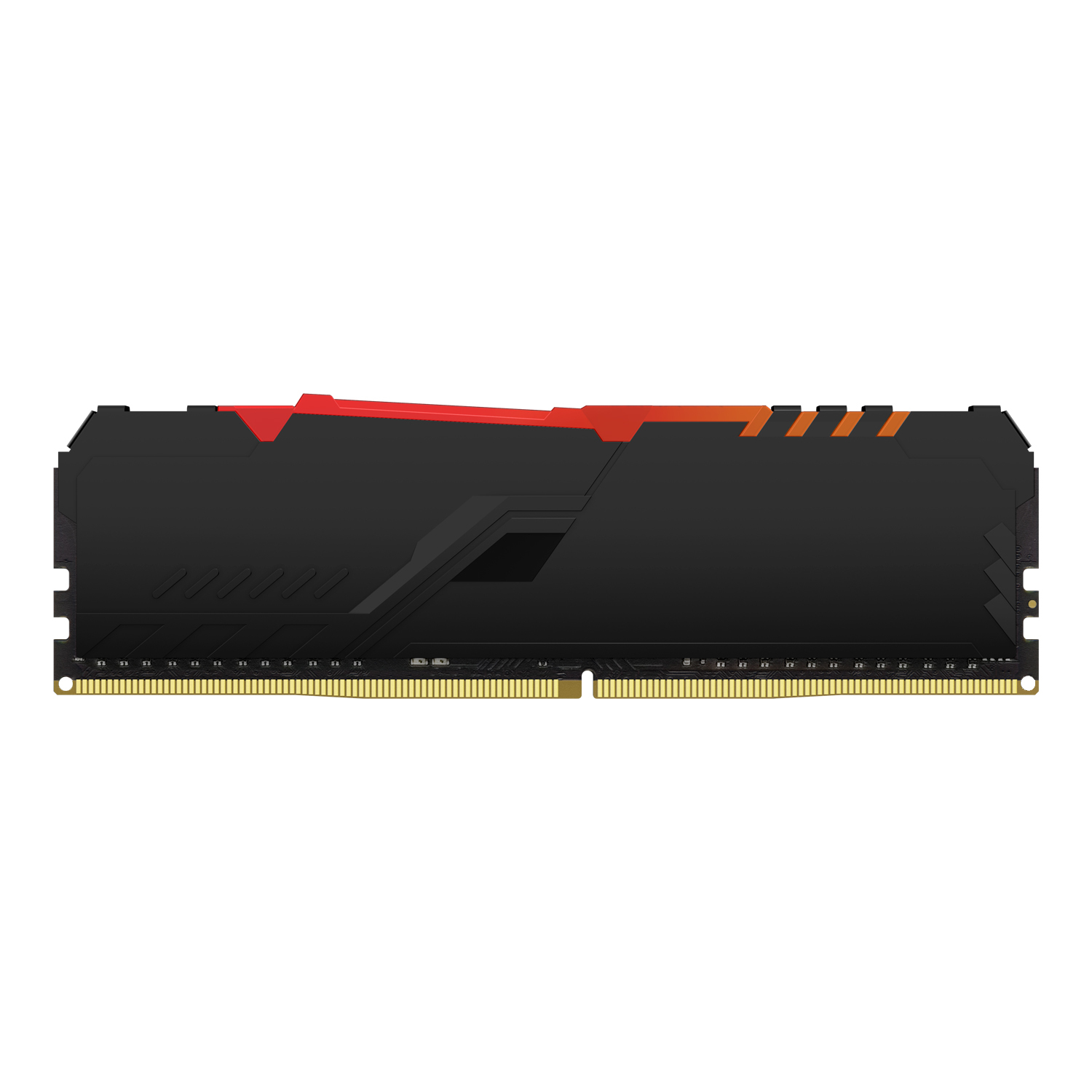

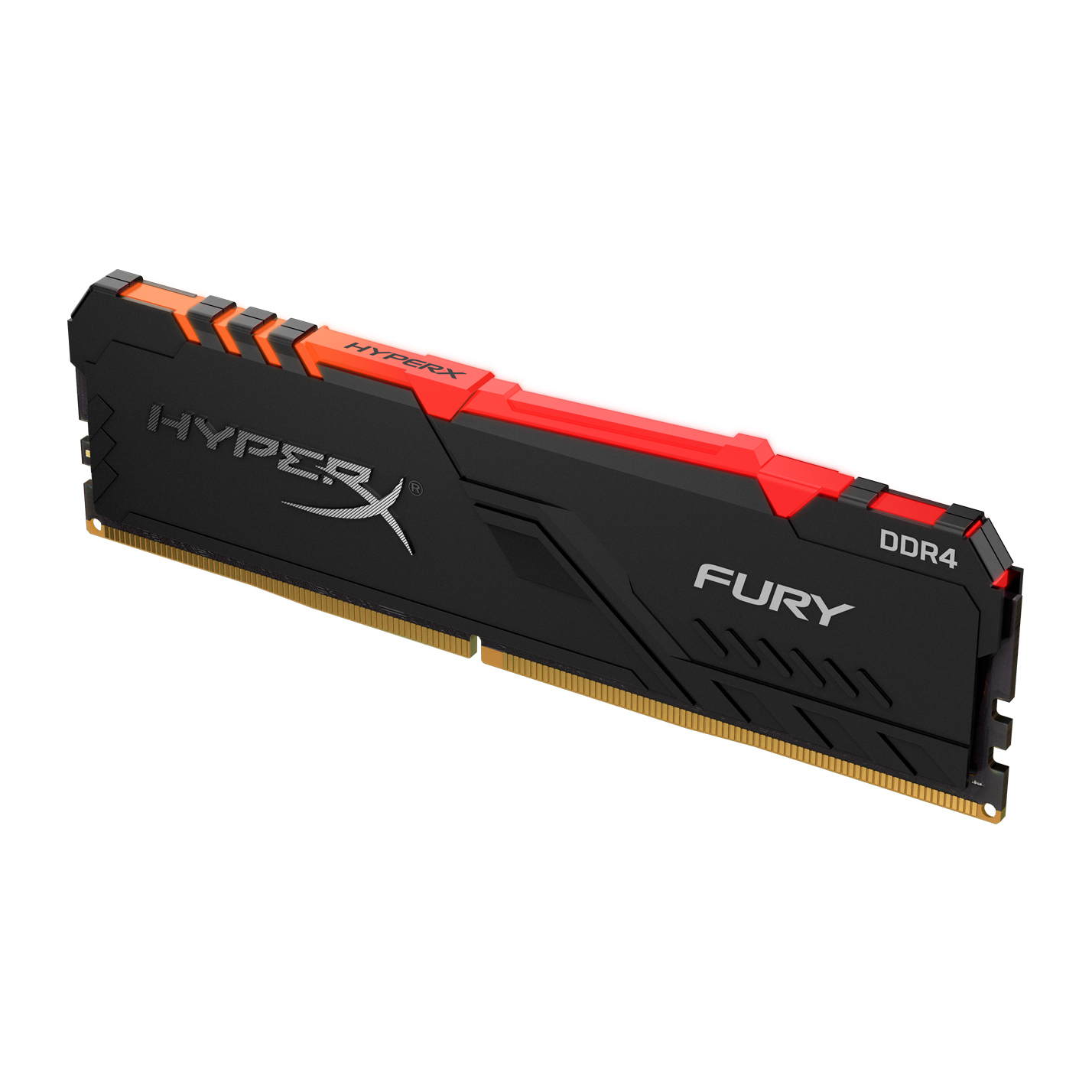

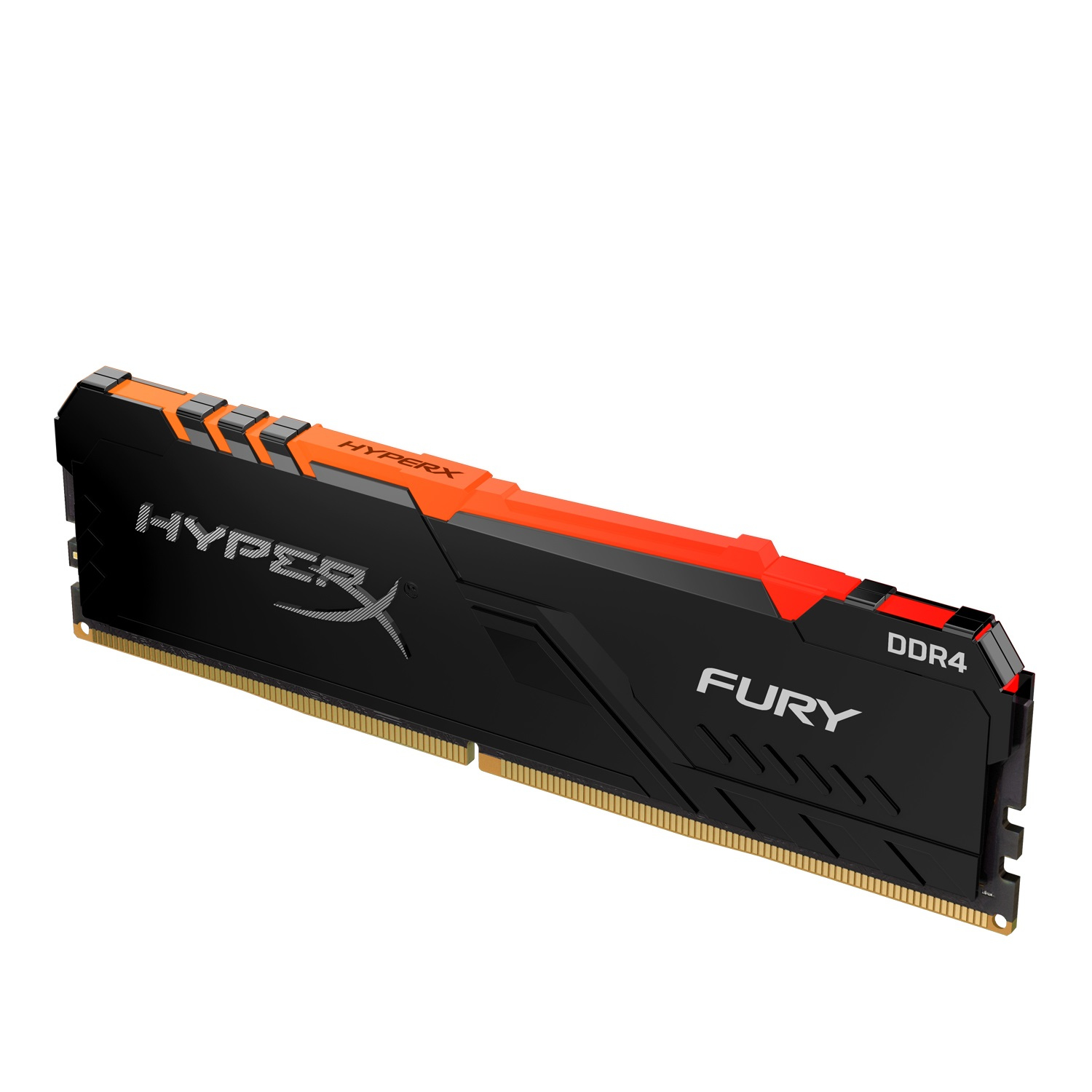

FURY HX437C19FB3A/8 memory module
8 GB 1 x 8 GB DDR4 288-pin DIMM
Model HX437C19FB3A/8EAN 740617302516
33 specifications
- Memory8 GB
- Weight38.9 g
- Operating temperature (T-T)0 - 70 °C
- Width7 mm
Overview
- Memory
- 8 GB
- Weight
- 38.9 g
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 7 mm
- Brand
- HyperX
- Category
- Memory Module
- Model
- HX437C19FB3A/8
- Part number
- HX437C19FB3A/8
- EAN / UPC
- 740617302516
- Also known as
- HyperX FURY HX437C19FB3A/8 memory module 8 GB 1 x 8 GB DDR4 288-pin DIMM
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 19 |
| Memory clock speed | 3733 MHz |
| Memory voltage | 1.35 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Cooling type | Heatsink |
| Backlight | Yes |
| Backlight colour | Red/Green/Blue |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 7 mm |
| Depth | 133.3 mm |
| Height | 41.2 mm |
| Weight | 38.9 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 13.9 mm |
| Package depth | 171.4 mm |
| Package height | 63.5 mm |
| Package weight | 57.4 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 88.9 mm |
| Master (outer) case length | 325.1 mm |
| Master (outer) case height | 193 mm |
| Master (outer) case gross weight | 1.67 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Certification | CE |
