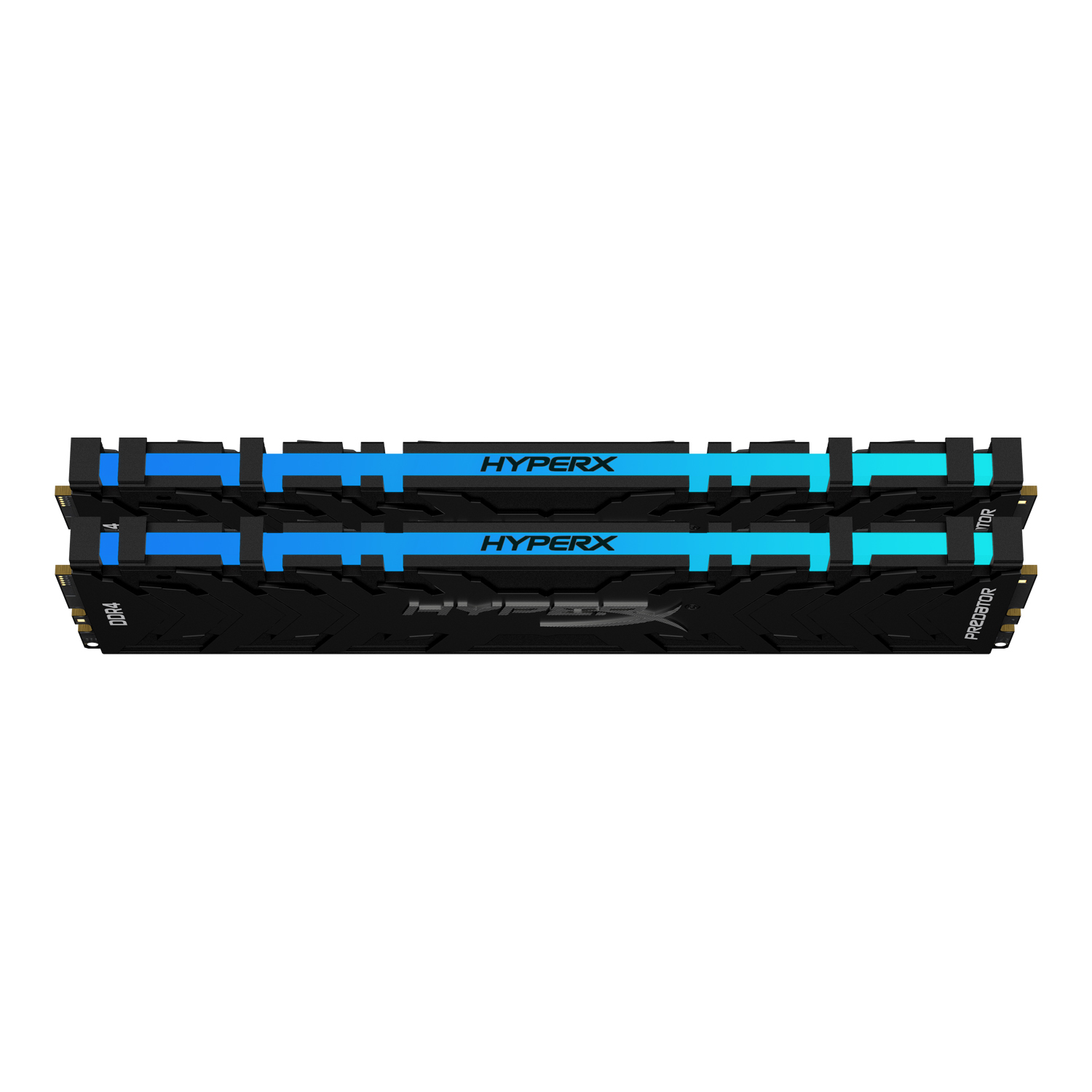

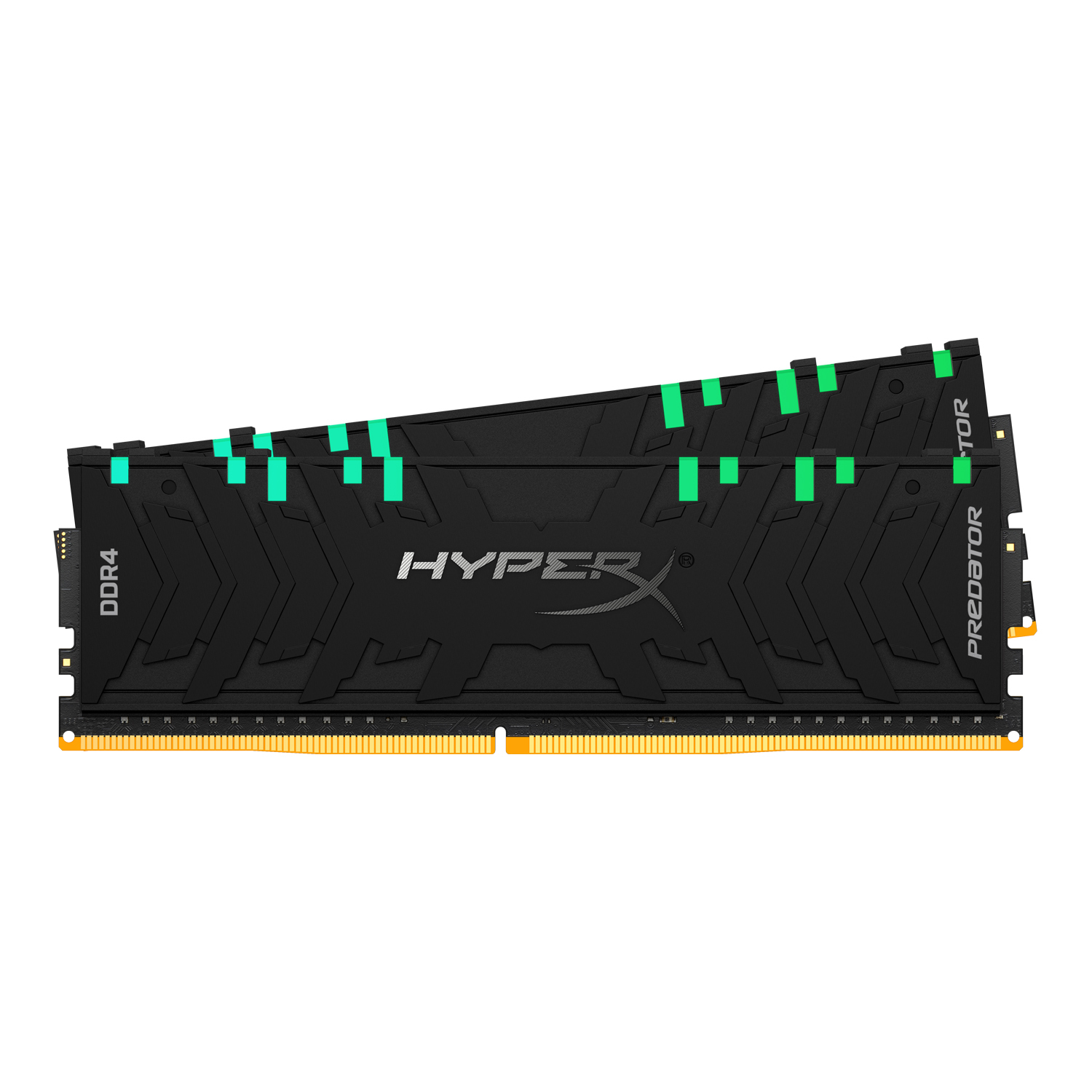

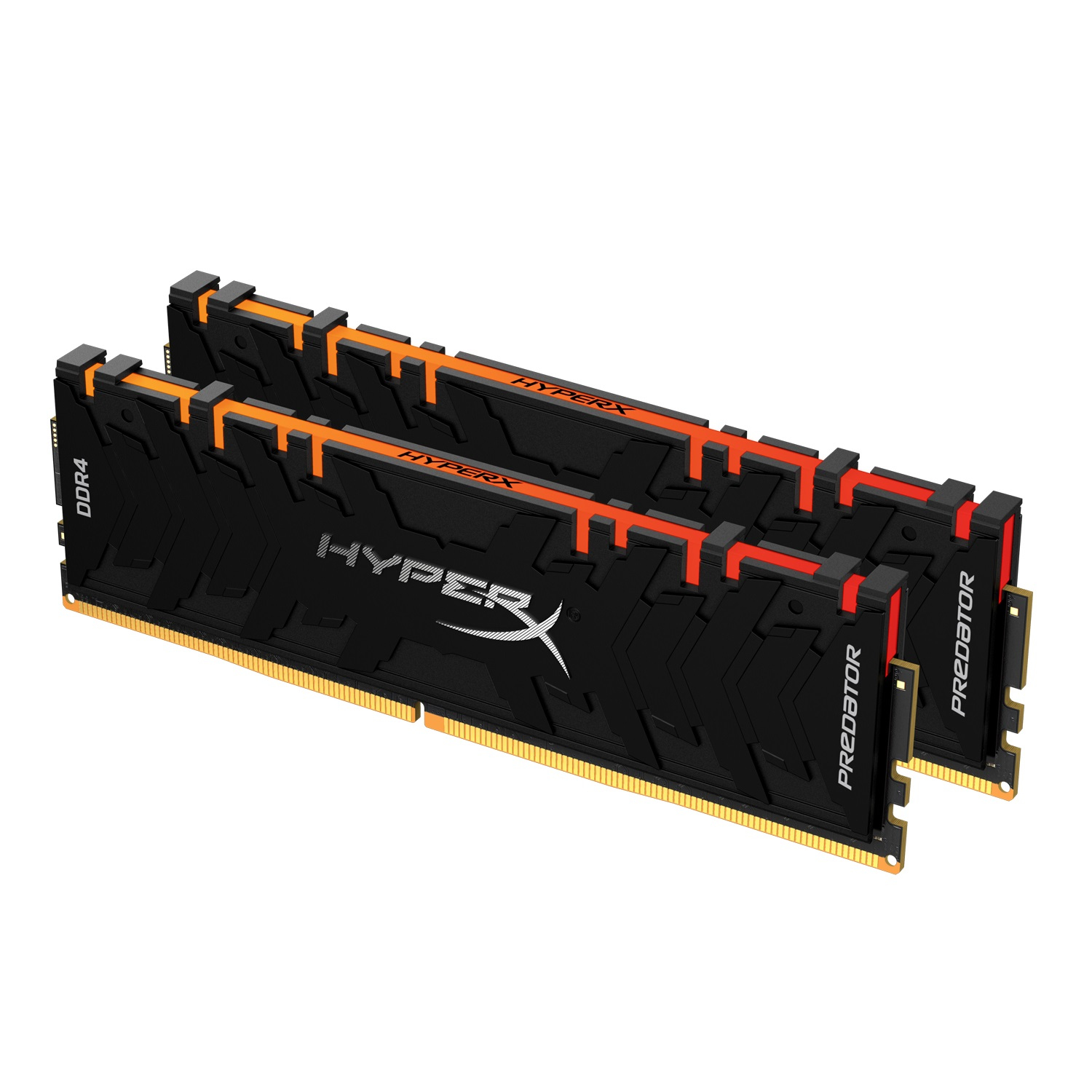

HX430C15PB3AK2/16
Model HX430C15PB3AK2/16EAN 740617289770
41 specifications
- Memory16 GB
- Weight129.9 g
- Operating temperature (T-T)0 - 70 °C
- Width8.3 mm
Overview
- Memory
- 16 GB
- Weight
- 129.9 g
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 8.3 mm
- Brand
- HyperX
- Category
- Memory Module
- Model
- HX430C15PB3AK2/16
- Part number
- HX430C15PB3AK2/16
- EAN / UPC
- 740617289770
Specifications
41 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory layout (modules x size) | 2 x 8 GB |
| Internal memory type | DDR4 |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| CAS latency | 15 |
| Memory clock speed | 3000 MHz |
| Buffered memory type | Unregistered (unbuffered) |
| Memory voltage | 1.35 V |
| Module configuration | 1024M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 2.0 |
| Programming power voltage (VPP) | 2.5 V |
| SPD profile | Yes |
| SPD voltage | 1.2 V |
| SPD speed | 2400 MHz |
| Cooling type | Heatsink |
| Backlight | Yes |
| Lead plating | Gold |
| Backlight colour | Red/Green/Blue |
| JEDEC standard | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 8.3 mm |
| Depth | 133.3 mm |
| Height | 42.2 mm |
| Weight | 129.9 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 30.5 mm |
| Package depth | 120.7 mm |
| Package height | 157.5 mm |
| Package weight | 243.9 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 203.2 mm |
| Master (outer) case length | 304.8 mm |
| Master (outer) case height | 146 mm |
| Master (outer) case gross weight | 2.6 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Certification | CE |
