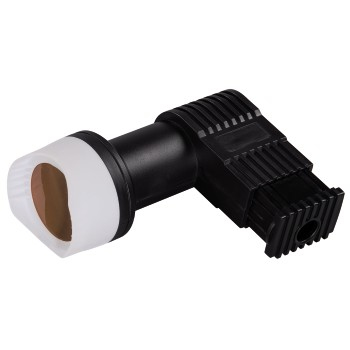

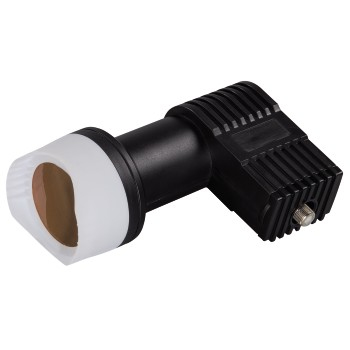

ANT4144 10.7
12.75 GHz Black
Model ANT4144Part no. 00131935EAN 4047443273598
14 specifications
- ColourBlack
- Input frequency range10.7 - 12.75 GHz
- RF connector typeF
- Power consumption103 mA
- Feedhorn diameter4 cm
Overview
- Colour
- Black
- Input frequency range
- 10.7 - 12.75 GHz
- RF connector type
- F
- Power consumption
- 103 mA
- Feedhorn diameter
- 4 cm
- Brand
- Hama
- Model
- ANT4144
- Part number
- 00131935
- EAN / UPC
- 4047443273598
- Also known as
- Hama ANT4144 10.7 - 12.75 GHz Black
Specifications
14 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Input frequency range | 10.7 - 12.75 GHz |
| Output frequency range | 1100 - 2150 MHz |
| Oscillator frequency | 9.75 GHz |
| Gain | 65 dB |
| Noise figure | 0.3 dB |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| RF connector type | F |
| RF ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption | 103 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Feedhorn diameter | 4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 215 mm |
| Package height | 73 mm |
| Package weight | 349 g |
