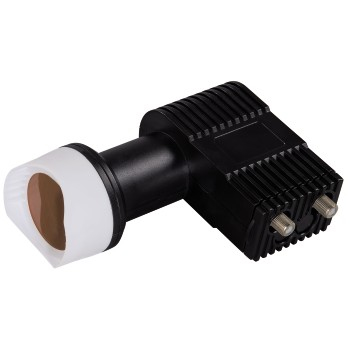

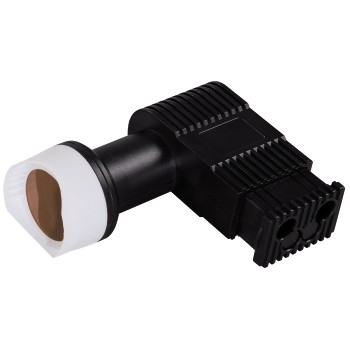

ANT4244 10.7
12.75 GHz Black
Model ANT4244Part no. 00131936EAN 4047443273604
14 specifications
- ColourBlack
- Input frequency range10.7 - 12.75 GHz
- RF connector typeF
- Power consumption170 mA
- Feedhorn diameter4 cm
Overview
- Colour
- Black
- Input frequency range
- 10.7 - 12.75 GHz
- RF connector type
- F
- Power consumption
- 170 mA
- Feedhorn diameter
- 4 cm
- Brand
- Hama
- Model
- ANT4244
- Part number
- 00131936
- EAN / UPC
- 4047443273604
- Also known as
- Hama ANT4244 10.7 - 12.75 GHz Black
Specifications
14 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Input frequency range | 10.7 - 12.75 GHz |
| Output frequency range | 1100 - 2150 MHz |
| Oscillator frequency | 10.6 GHz (L2) / 9.75 GHz (L1) |
| Gain | 65 dB |
| Noise figure | 0.3 dB |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| RF connector type | F |
| RF ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power consumption | 170 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Feedhorn diameter | 4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 216 mm |
| Package height | 72 mm |
| Package weight | 449 g |
