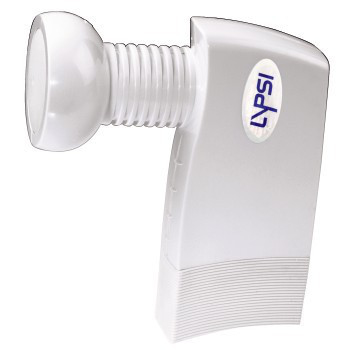

00047496 Low Noise Block downconverter (LNB) 10.7
12.75 GHz White
Model 00047496EAN 4007249474964
14 specifications
- ColourWhite
- Input frequency range10.7 - 12.75 GHz
- RF connector typeF
- Power consumption250 mA
- Feedhorn diameter4 cm
Overview
- Colour
- White
- Input frequency range
- 10.7 - 12.75 GHz
- RF connector type
- F
- Power consumption
- 250 mA
- Feedhorn diameter
- 4 cm
- Brand
- Hama
- Model
- 00047496
- Part number
- 00047496
- EAN / UPC
- 4007249474964
- Also known as
- Hama 00047496 Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz White
Specifications
14 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| Input frequency range | 10.7 - 12.75 GHz |
| Output frequency range | 950-2050 / 1100-2150 MHz |
| Oscillator frequency | 9.75 GHz (L1) / 10.6 GHz (L2) |
| Gain | 55 dB |
| Noise figure | 3 dB |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| RF connector type | F |
| RF ports quantity | 4 |
Power
| Specification | Value |
|---|---|
| Power consumption | 250 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Feedhorn diameter | 4 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 140 mm |
| Package height | 75 mm |
| Package weight | 256 g |
